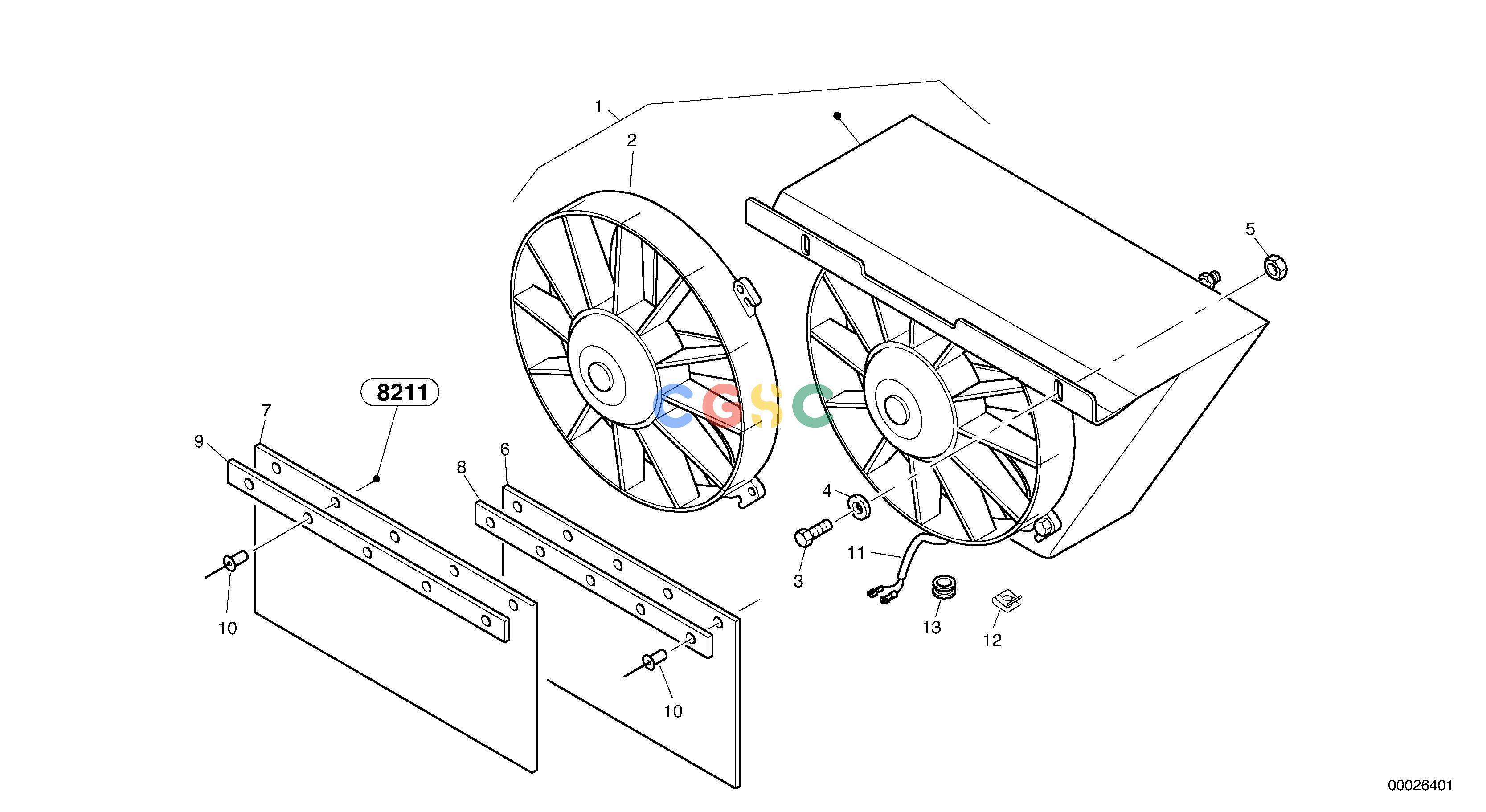

沃尔沃零件查询L40 CondenserTYPE 191, 192 SER NO - 10001910157--1920322-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
754 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2815636
|
[1] |
Condenser, cpl.
|
|
| 10. |
ZM2091834
|
[10] |
Rivet
|
|
| 11. |
ZM2815888
|
[1] |
Electric wire - Condenser
|
|
| 12. |
VOE11307049
|
[3] |
Clip
|
|
| 13. |
VOE11305425
|
[1] |
Grommet
|
|
| 2. |
ZM2815614
|
[1] |
Electric fan
|
|
| 3. |
VOE983242
|
[2] |
Hexagon screw
|
M8x20
|
| 4. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 5. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 6. |
ZM2814171
|
[1] |
Cover
|
|
| 7. |
ZM2814172
|
[1] |
Cover
|
|
| 8. |
ZM2815883
|
[1] |
Cover Plate
|
|
| 9. |
ZM2815885
|
[1] |
Cover Plate
|
|
