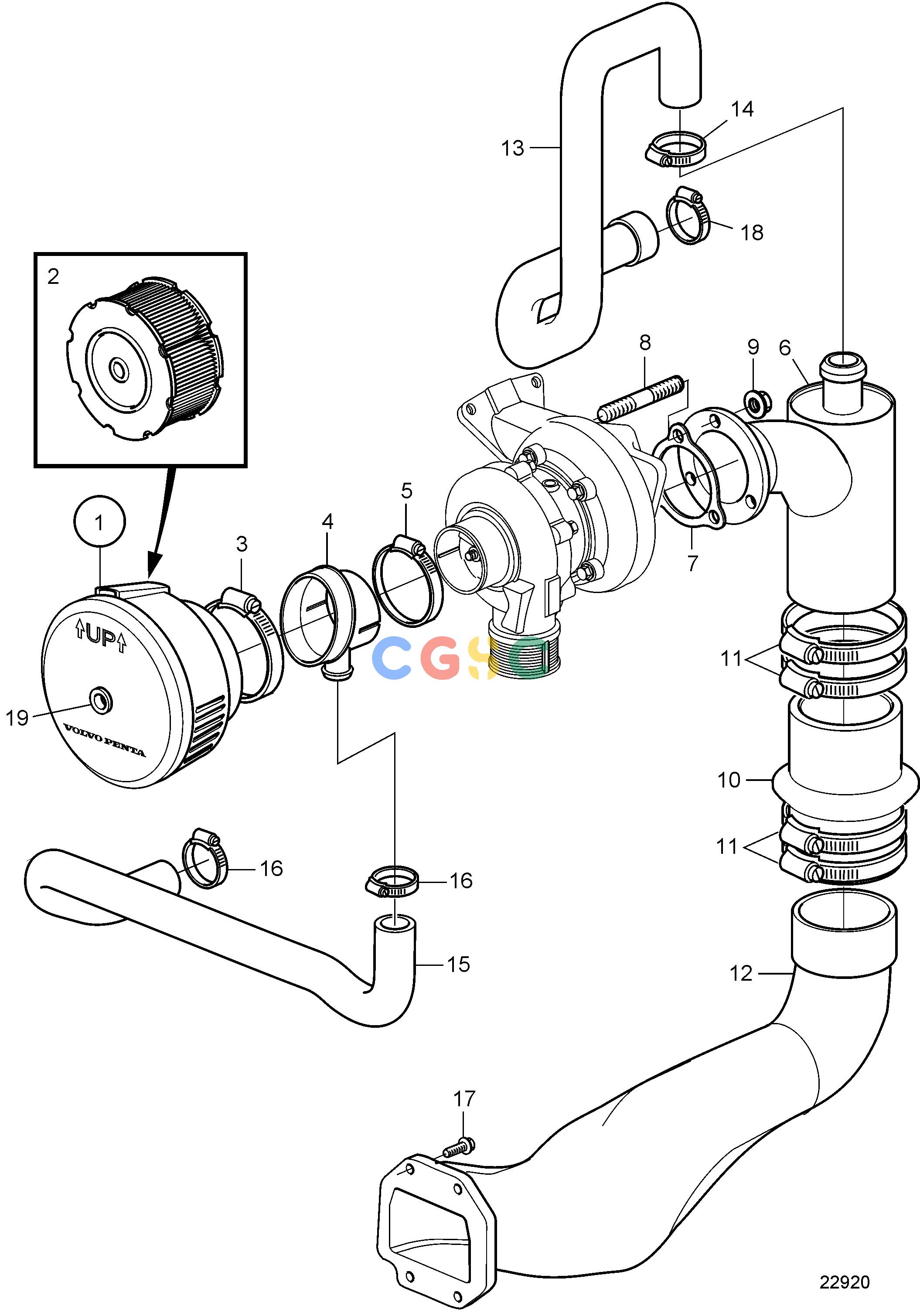

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Intake and Exhaust SystemExhaust Line and Air FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
375 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21782391
|
[1] |
Air filter
|
|
| 2. |
21646645
|
[1] |
Air filter insert
|
|
| 3. |
943479
|
[1] |
Hose clamp
|
|
| 4. |
3586801
|
[1] |
Adapter
|
|
| 5. |
943479
|
[2] |
Hose clamp
|
|
| 6. |
3809984
|
[1] |
Exhaust pipe elbow
|
|
| 7. |
1275549
|
[1] |
Gasket
|
|
| 8. |
982449
|
[3] |
Stud
|
|
| 9. |
981152
|
[3] |
Flange nut
|
|
| 10. |
3863450
|
[1] |
Bellows
|
(3852741)
|
| 11. |
853012
|
[4] |
Hose clamp
|
|
| 12. |
3587910
|
[1] |
Exhaust pipe
|
|
| 13. |
3584324
|
[1] |
Hose
|
|
| 14. |
994561
|
[1] |
Hose clamp
|
|
| 15. |
3586800
|
[1] |
Hose, crankhouse vent.
|
|
| 16. |
943473
|
[2] |
Hose clamp
|
|
| 17. |
3841928
|
[4] |
Flange screw
|
(3855472)
|
| 18. |
994562
|
[1] |
Hose clamp
|
|
| 19. |
940285
|
[1] |
Plug
|
|
