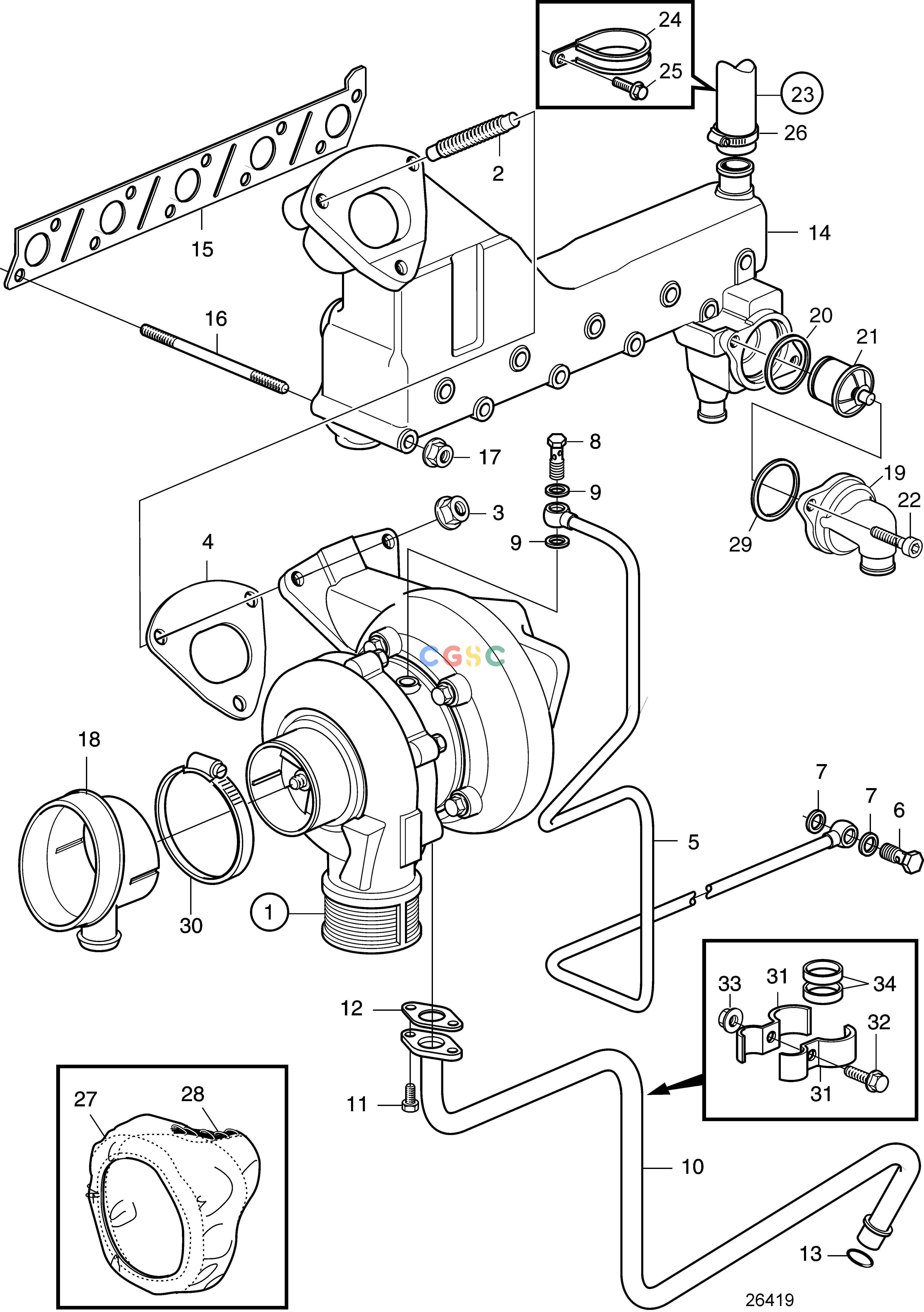

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Intake and Exhaust SystemExhaust Manifold and TurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801270
|
[1] |
Turbocharger
|
(3802145)
|
| 2. |
953045
|
[2] |
Stud
|
|
| 3. |
945408
|
[3] |
Flange nut
|
|
| 4. |
8631549
|
[1] |
Gasket
|
|
| 5. |
3584290
|
[1] |
Oil pressure pipe
|
|
| 6. |
25167
|
[1] |
Hollow screw
|
|
| 7. |
969011
|
[2] |
Gasket
|
|
| 8. |
980973
|
[1] |
Hollow screw
|
|
| 9. |
18665
|
[2] |
Gasket
|
|
| 10. |
3584289
|
[1] |
Oil return pipe
|
|
| 11. |
946544
|
[2] |
Flange screw
|
|
| 12. |
420641
|
[1] |
Plane gasket
|
|
| 13. |
30637866
|
[1] |
Sealing ring
|
Replaced by 31251439
|
| 13. |
31251439
|
[1] |
Sealing ring
|
|
| 14. |
3812601
|
[1] |
Exhaust manifold
|
(3584294)
|
| 15. |
30729340
|
[1] |
Gasket
|
(8631562)
|
| 16. |
968278
|
[10] |
Stud
|
|
| 17. |
945408
|
[10] |
Flange nut
|
|
| 18. |
3586801
|
[1] |
Adapter
|
|
| 19. |
3584473
|
[1] |
Cap
|
|
| 20. |
3584299
|
[1] |
Gasket
|
|
| 21. |
3840816
|
[1] |
Thermostat
|
(3584474)
|
| 22. |
959223
|
[2] |
Hex. socket screw
|
|
| 23. |
888609
|
[1] |
Hose
|
|
| 24. |
947457
|
[1] |
Clamp
|
|
| 25. |
968476
|
[1] |
Flange screw
|
|
| 26. |
943479
|
[1] |
Hose clamp
|
|
| 27. |
3883211
|
[1] |
Heat shield
|
|
| 28. |
941710
|
[1] |
Locking wire
|
L=0,5m
|
| 29. |
3588888
|
[1] |
O-ring
|
|
| 30. |
943479
|
[1] |
Hose clamp
|
|
| 31. |
820851
|
[2] |
Clamp
|
|
| 32. |
946544
|
[2] |
Flange screw
|
|
| 33. |
945407
|
[2] |
Flange nut
|
|
| 34. |
30637866
|
[2] |
Sealing ring
|
|
