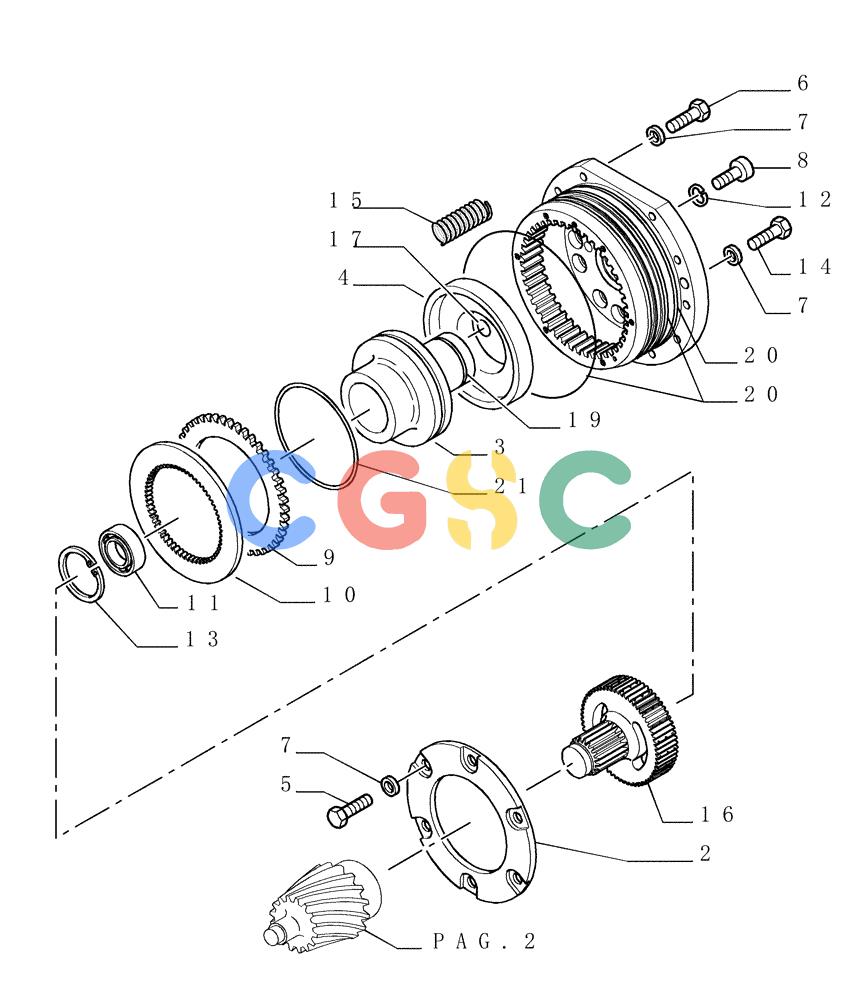

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.266[03]) - REAR TRANSMISSION - BRAKES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
137 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76072405 | [1] | DRUM | LEC- DECOMPRESSION |
| 2. | 76072303 | [1] | CLUTCH DISC,268mm OD | LECCLUTCH DISK |
| 3. | 76072351 | [1] | CLUTCH DISC,159.6mm OD | LECCLUTCH DISK |
| 4. | 76072316 | [1] | CLUTCH DISC | LECCLUTCH DISK |
| 5. | 15540431 | [6] | SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC |
| 6. | 15540631 | [10] | BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd | LEC |
| 7. | 14496731 | [20] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 8. | 10119440 | [2] | PLUG,M18 x 1.5 x 16, Brass | LEC |
| 9. | 76073416 | [7] | CLUTCH DISC | LECCLUTCH DISK - DRIVEN |
| 10. | 79030951 | [6] | DISC | LEC- DRIVE |
| 11. | 76072107 | [1] | CYLINDRICAL ROLLER BEARING,30 mm ID x 62 mm OD x 16 mm | LEC30X62X16 |
| 13. | 11061076 | [1] | SNAP RING,M62, Int | ZED Superseded by part number: 370012 |
| 14. | 15540731 | [4] | SCREW,Hex, M12 x 1.25 x 45mm, Cl 10.9 | MKT Superseded by part number: 15540734 |
| 15. | 76040575 | [12] | SPRING | LEC |
| 16. | 76074721 | [1] | HUB,17T / 54T | LEC |
| 17. | 14452981 | [1] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro | NH |
| 19. | 14464780 | [1] | O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro | MKT(M59.92 ID x 3.53 Thk) Superseded by part number: 76046537 |
| 20. | 14469481 | [3] | O-RING,10.984" ID x 11.262" OD x 0.139" | LEC |
| 21. | 14467681 | [1] | O-RING,152mm ID x 6.262" OD x 3.53mm | LEC(M152 ID x 3.53 Thk) |
| 12. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
