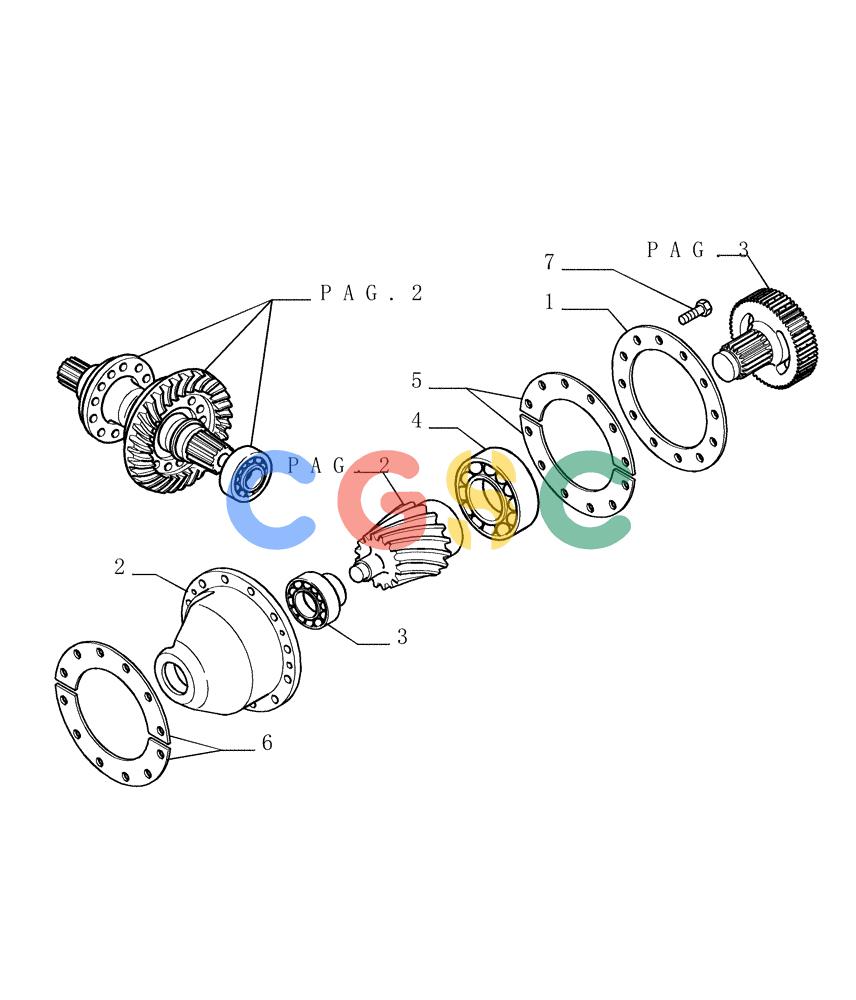

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.266[04]) - REAR TRANSMISSION - BRAKES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76072380 | [1] | COVER | LEC |
| 2. | 76073324 | [1] | SUPPORT | LEC |
| 3. | 76072105 | [1] | BALL BEARING,30 mm ID x 62 mm OD x 17.25 mm | TOR30X62X17,25 Superseded by part number: 26799940 |
| 4. | 76072106 | [1] | BALL BEARING,90 mm ID x 160 mm OD x 32.5 mm | TOR Superseded by part number: 26800060 |
| 5. | 76072299 | [1] | SHIM | LEC1 |
| 5. | 76072300 | [1] | SHIM | LEC0,5 |
| 5. | 76072301 | [1] | SHIM | LEC0,2 |
| 5. | 76072302 | [1] | SHIM | LEC0,15 |
| 6. | 76072295 | [1] | SHIM | LEC |
| 6. | 76072296 | [1] | SHIM | LEC |
| 6. | 76072297 | [1] | SHIM | LEC |
| 6. | 76072298 | [1] | SHIM | LEC |
| 7. | 15540831 | [12] | BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9 | TTF |
