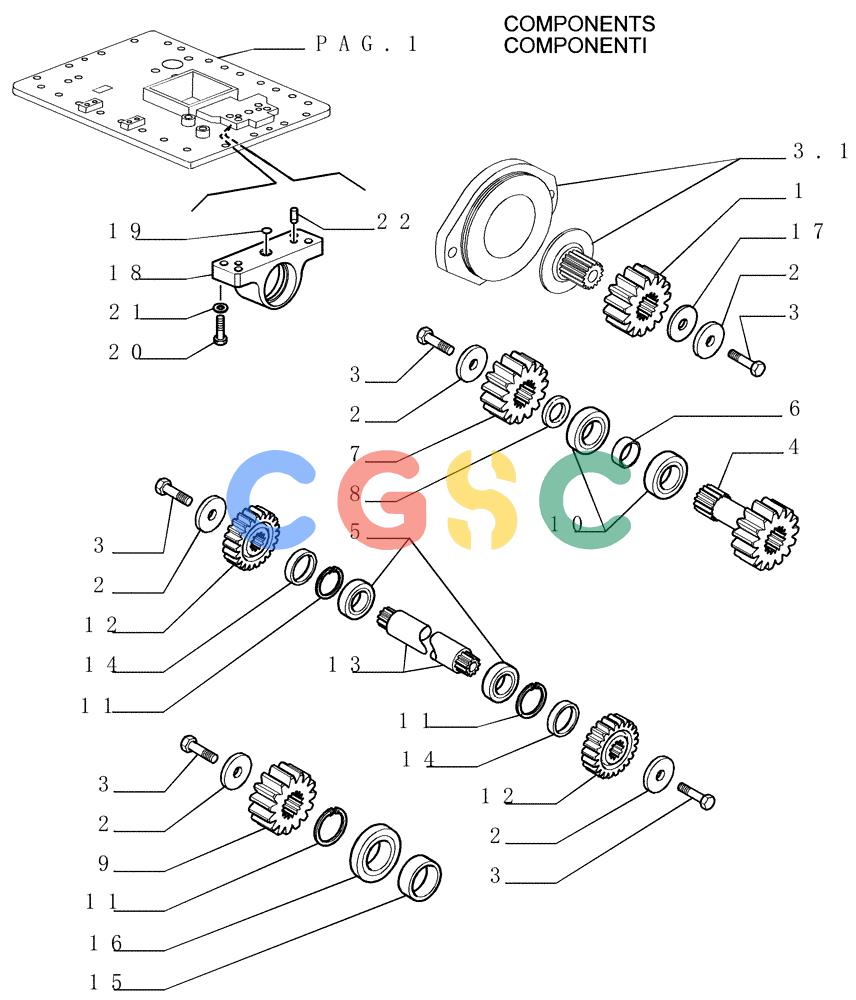

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.266[07]) - REAR TRANSMISSION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
788 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071308 | [1] | GEAR | LEC |
| 2. | 76071128 | [5] | CLUTCH DISC | LECCLUTCH DISK |
| 3. | 15540431 | [5] | SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC |
| 4. | 76071312 | [1] | SHAFT | LEC- STEERING |
| 5. | 76072110 | [2] | CYLINDRICAL ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm | TOR40X90X23 Superseded by part number: 5138660 |
| 6. | 76074843 | [1] | SPACER | LEC |
| 7. | 76071309 | [1] | GEAR | LEC |
| 8. | 76074844 | [1] | SPACER | LEC |
| 9. | 76071311 | [1] | GEAR | LEC |
| 10. | 76072108 | [2] | CYLINDRICAL ROLLER BEARING,40 mm ID x 90 mm OD x 33 mm | LEC40X90X33 Superseded by part number: 76052783 |
| 11. | 11062476 | [3] | SNAP RING,M90, Int | TTF Superseded by part number: |
| 12. | 76071129 | [2] | GEAR | LEC- STEERING |
| 13. | 76071313 | [1] | SHAFT | LEC |
| 14. | 76074710 | [2] | SPACER | LEC |
| 15. | 76072109 | [1] | CYLINDRICAL ROLLER BEARING,40 mm ID x 90 mm OD x 23 mm | LEC40X90X23 |
| 16. | 76072293 | [1] | SPACER | LEC |
| 17. | 76075422 | [1] | SHIM | LEC |
| 18. | 76075328 | [1] | BLOCK | LEC |
| 19. | 5135738 | [1] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 20. | 11422031 | [4] | BOLT,Hex, M14 x 55, 10.9 | MKT Superseded by part number: 11422030 |
| 21. | 14496831 | [4] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 22. | 546500 | [2] | DOWEL | LEC |
