纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.266[06]) - REAR TRANSMISSION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
283 次

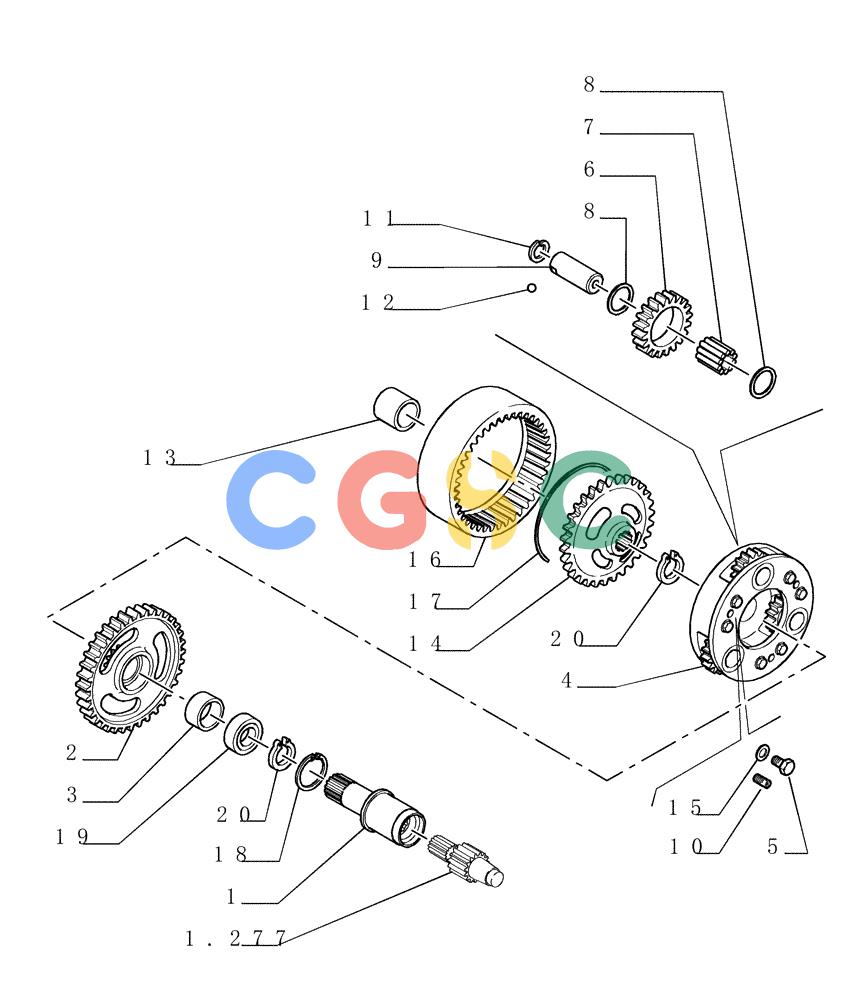

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76072176 | [2] | SHAFT | LEC- RIGHT |
| 2. | 76071315 | [2] | GEAR | LEC |
| 3. | 76072188 | [2] | SPACER | LEC |
| 4. | 76071483 | [2] | CARRIER | LEC Superseded by part number: 76087779 |
| 5. | 15540431 | [12] | SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC |
| 6. | 76071080 | [6] | IDLER GEAR | LEC |
| 7. | 76072151 | [6] | NEEDLE BEARING CAGE | LEC- NEEDLE ROLLERS |
| 8. | 76073343 | [12] | WASHER | TOR Superseded by part number: 76075182 |
| 9. | 76073334 | [6] | PIN | LEC |
| 10. | 76069967 | [6] | SPACER | LEC |
| 11. | 11061176 | [6] | SNAP RING,M65, Int | LEC Superseded by part number: 300649 |
| 12. | 20063450 | [6] | BALL | LEC6,350 Superseded by part number: 20419320 |
| 13. | 76072197 | [2] | SPACER | LEC |
| 14. | 76072096 | [2] | SUPPORT | LEC |
| 15. | 14496731 | [12] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 16. | 76071079 | [2] | RING GEAR | LEC |
| 17. | 76071494 | [2] | RING | LEC |
| 18. | 11075476 | [2] | SNAP RING,M110, Int | TTF Superseded by part number: |
| 19. | 76072103 | [2] | BALL BEARING,80 mm ID x 110 mm OD x 22 mm | TOR60X110X22 Superseded by part number: 20141040 |
| 20. | 11069476 | [4] | SNAP RING,M52, Ext | LEC |
