纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.277[01]) - FINAL DRIVE - CASE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
639 次

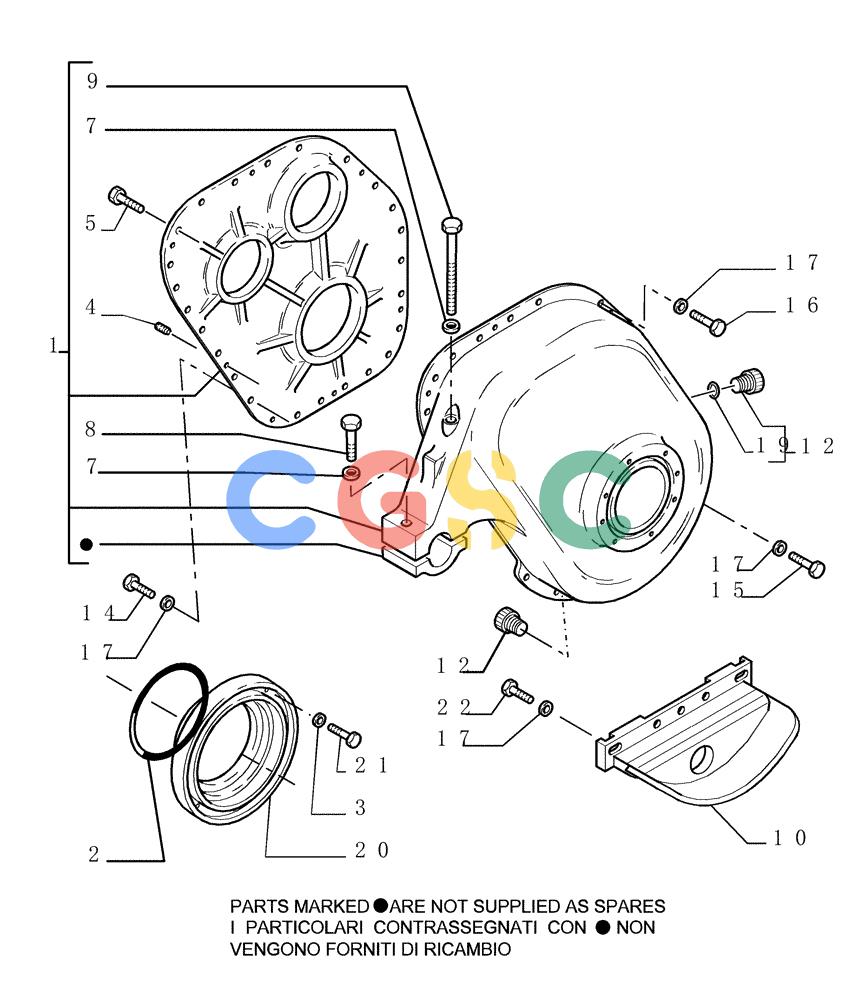

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76047232 | [1] | FINAL DRIVE HOUSING | LEC- RIGHT ASSY |
| 1. | 76047229 | [1] | FINAL DRIVE HOUSING | LEC- LEFT ASSY |
| 2. | 14468281 | [2] | O-RING,190.1mm ID x 7.762" OD x 3.53mm | LEC(M190.1 ID x 3.53 Thk) |
| 3. | 14496731 | [16] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 4. | 76035566 | [2] | DOWEL | LEC |
| 5. | 14420231 | [6] | HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC |
| 7. | 14497331 | [2] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24X44 Superseded by part number: 86511328 |
| 8. | 15861731 | [1] | BOLT,Hex, M24 x 2 x 130mm, Cl 10.9 | LEC |
| 9. | 16264331 | [1] | SCREW,M24 x 2 x 240mm | LEC24X2X240 |
| 10. | 76076849 | [2] | GUARD | LEC |
| 12. | 10119140 | [4] | PLUG | LEC42X2X16 - ASSY |
| 14. | 11422031 | [14] | BOLT,Hex, M14 x 55, 10.9 | MKT Superseded by part number: 11422030 |
| 15. | 11255931 | [8] | BOLT,Hex, M14 x 1.5 x 40, 10.9, Full Thd | LEC |
| 16. | 11227031 | [24] | BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9 | LEC |
| 17. | 14496831 | [56] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 19. | 14438385 | [4] | O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro | LEC39MM ID x 3.0 Thk Superseded by part number: 86598105 |
| 20. | 76049678 | [2] | RING | LEC |
| 21. | 11113231 | [16] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHB Superseded by part number: 337476 |
| 22. | 15860131 | [10] | SCREW,Hex, M14 x 1.5 x 50mm, Cl 10.9 | LEC |
