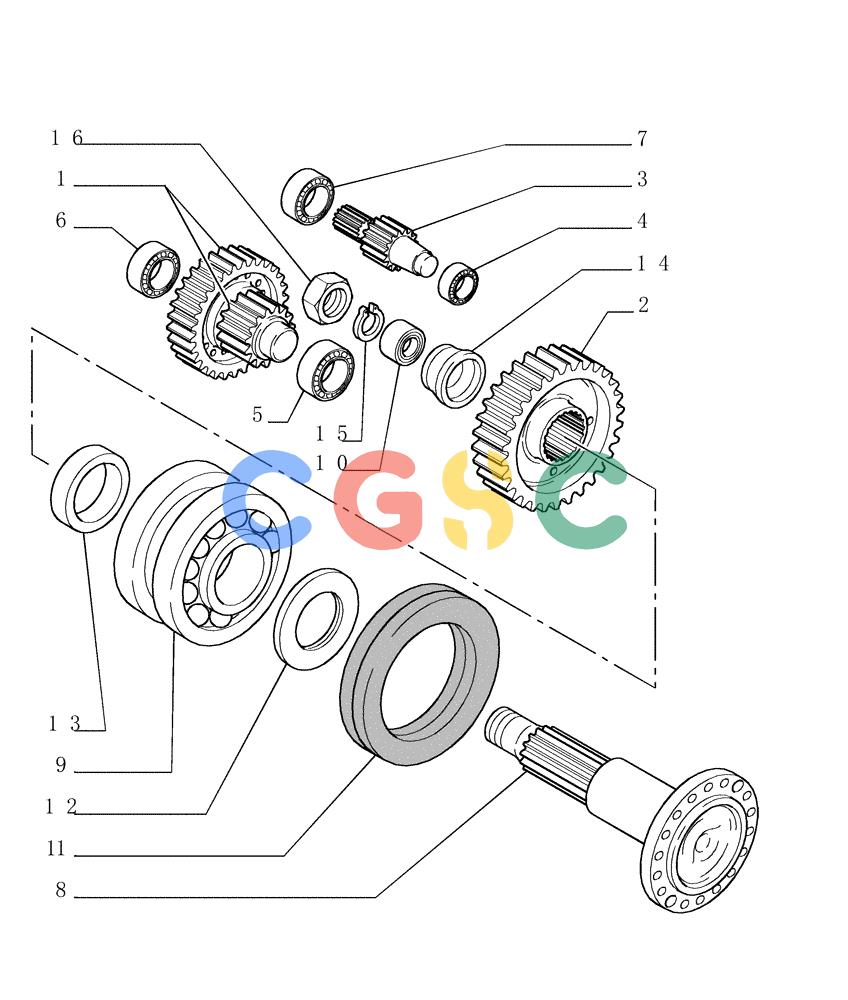

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.277[02]) - FINAL DRIVE - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
628 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79033911 | [2] | SHAFT | LEC- DRIVEN |
| 2. | 76046428 | [2] | DRIVEN GEAR | LEC- DRIVEN |
| 3. | 76048122 | [2] | GEAR | LEC- DRIVEN |
| 4. | 76052783 | [2] | CYLINDRICAL ROLLER BEARING,40mm ID x 90mm OD x 33mm W | LEC40X90X33 |
| 5. | 24940320 | [2] | ROLLER BEARING,60mm ID x 150mm OD x 35mm W | LEC60X150X35 |
| 6. | 24940750 | [2] | ROLLER BEARING,50mm ID x 110mm OD x 40mm W | LEC50X110X40 |
| 7. | 24940300 | [2] | ROLLER BEARING,55mm ID x 120mm OD x 43mm W | LEC55X120 |
| 8. | 76076883 | [2] | HUB | LEC- WHEEL Superseded by part number: 76087728, 76087727 |
| 9. | 76037587 | [2] | BALL BEARING,110mm ID x 180mm OD x 102mm W | LEC- FOR BEARING |
| 10. | 28041310 | [2] | CYLINDRICAL ROLLER BEARING,55mm ID x 120mm OD x 43mm W | LEC55X120X43 |
| 11. | 79000658 | [2] | SEAL,150mm ID x 190mm OD x 35.5mm Thk | LEC- ASSY |
| 12. | 76037720 | [2] | WASHER, THRUST,120mm ID x 144mm OD x 35mm L | LECWASHER,THRUST |
| 13. | 76037721 | [2] | SPACER | LEC |
| 14. | 76049673 | [2] | SPACER | LEC |
| 15. | 11075976 | [2] | SNAP RING,M120, Int | LEC Superseded by part number: 412270 |
| 16. | 4967215 | [2] | NUT | LEC |
