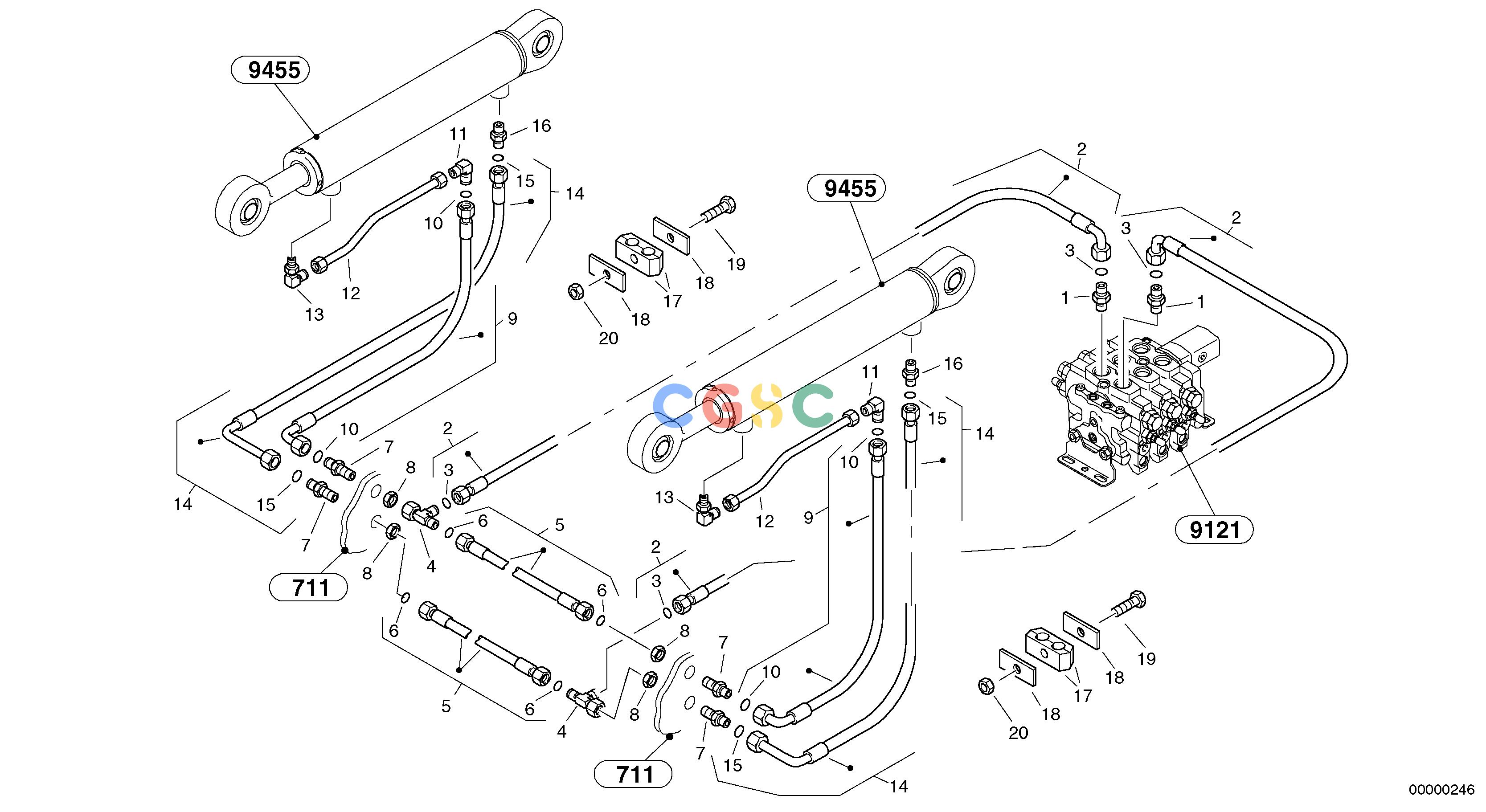

沃尔沃零件查询L40 Hydraulic lines - lift hydraulicTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
816 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811251
|
[2] |
Nipple
|
|
| 10. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 11. |
VOE11306492
|
[2] |
Fitting
|
L18
|
| 12. |
ZM2811961
|
[2] |
Pipe
|
|
| 13. |
VOE11306453
|
[2] |
Nipple
|
|
| 14. |
ZM2811760
|
[2] |
Hose
|
|
| 15. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 16. |
VOE11306451
|
[2] |
Nipple
|
|
| 17. |
ZM2801129
|
[2] |
Clip body
|
|
| 18. |
ZM2804424
|
[4] |
Plate
|
|
| 19. |
ZM7095522
|
[2] |
Screw
|
M8x70
|
| 2. |
ZM2811751
|
[2] |
Hose
|
|
| 20. |
ZM4334182
|
[2] |
Nut
|
VM8
|
| 3. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 4. |
VOE11306491
|
[2] |
T-nipple
|
L18
|
| 5. |
ZM2803360
|
[2] |
Hose
|
|
| 6. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 7. |
VOE11306368
|
[4] |
Nipple
|
L18
|
| 8. |
VOE957021
|
[4] |
Hexagon nut
|
M26x1,5
|
| 9. |
ZM2811755
|
[2] |
Hose
|
|
