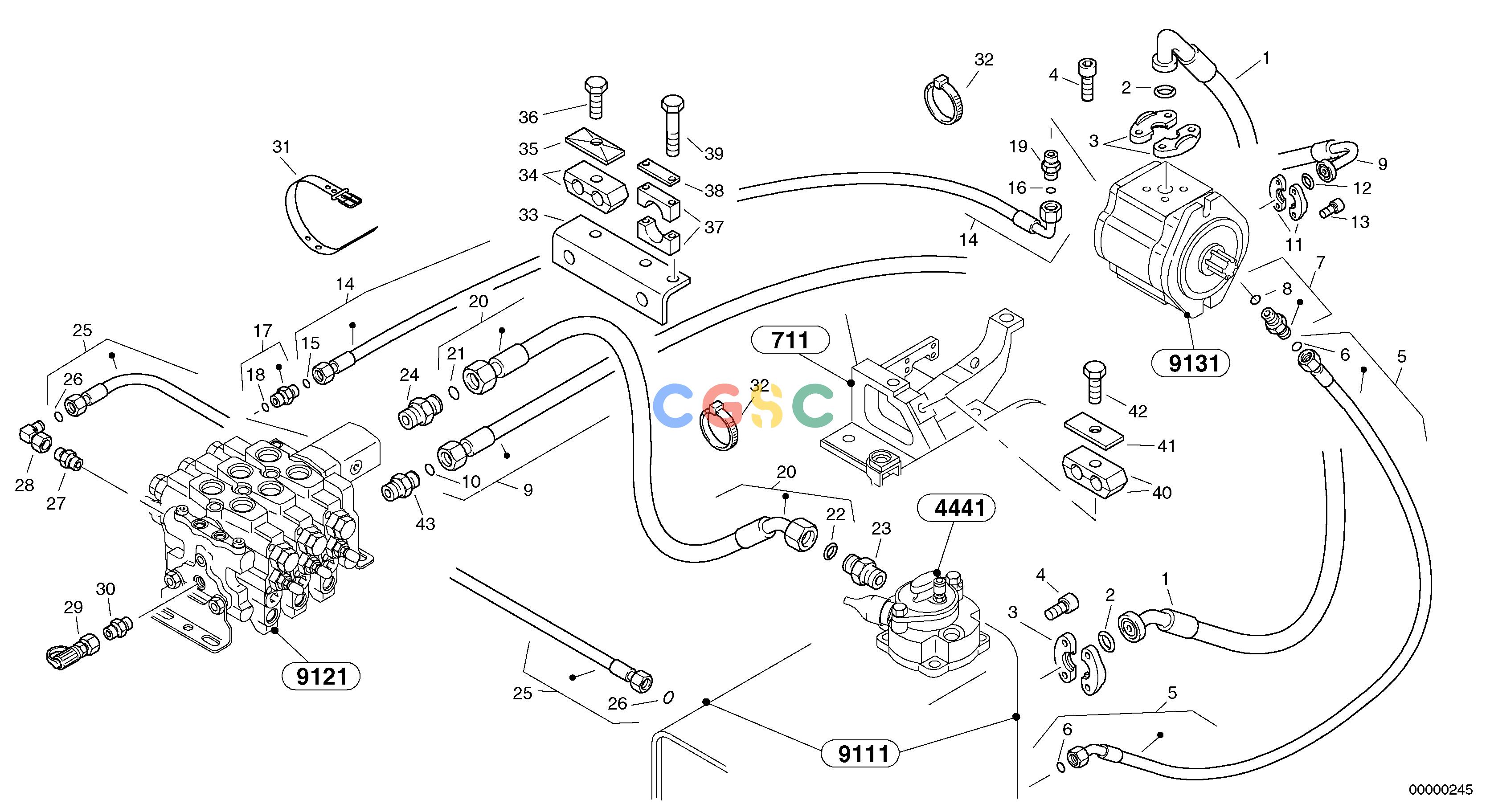

沃尔沃零件查询L40 Lines - rear vehicleTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
757 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813342
|
[1] |
Hose
|
|
| 10. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 11. |
ZM1032901
|
[2] |
SAE Flange half
|
|
| 12. |
ZM2123880
|
[1] |
O-ring
|
32,9x3,5
|
| 13. |
VOE11305614
|
[4] |
Allen screw
|
M10x30
|
| 14. |
ZM2811758
|
[1] |
Hose
|
|
| 15. |
ZM2259051
|
[1] |
O-ring
|
6,5x1,5
|
| 16. |
ZM1089232
|
[1] |
O-ring
|
|
| 17. |
ZM2811250
|
[1] |
Nipple
|
|
| 18. |
ZM2120376
|
[1] |
O-ring
|
8,92x1,53
|
| 19. |
VOE11306488
|
[1] |
Fitting
|
|
| 2. |
ZM7090330
|
[2] |
O-ring
|
47,2x3,5
|
| 20. |
ZM2811750
|
[1] |
Hose
|
|
| 21. |
ZM7099975
|
[1] |
O-ring
|
25x2,5
|
| 22. |
ZM8099962
|
[1] |
O-ring
|
32x2,5
|
| 23. |
ZM8091971
|
[1] |
Nipple
|
L35MB
|
| 24. |
VOE11306489
|
[1] |
Fitting
|
|
| 25. |
ZM4365542
|
[1] |
Hose
|
|
| 26. |
ZM1089232
|
[2] |
O-ring
|
|
| 27. |
ZM2801344
|
[1] |
Fitting Ge
|
|
| 28. |
ZM7092347
|
[1] |
Angular fitting
|
L10
|
| 29. |
VOE936449
|
[1] |
Testing nipple
|
|
| 3. |
ZM2052340
|
[4] |
Flange Half
|
|
| 30. |
ZM2801344
|
[1] |
Fitting Ge
|
|
| 31. |
ZM4346043
|
[2] |
Strap
|
|
| 32. |
ZM4375500
|
[5] |
Cable clamp
|
|
| 33. |
ZM2812458
|
[1] |
Holder
|
|
| 34. |
ZM2801725
|
[2] |
Clamp
|
|
| 35. |
ZM2801723
|
[2] |
Cover
|
|
| 36. |
VOE955278
|
[4] |
Hexagon screw
|
M6x50
|
| 37. |
ZM2811418
|
[2] |
Clamp half pair
|
|
| 38. |
ZM2801724
|
[2] |
Cover plate
|
|
| 39. |
VOE955282
|
[4] |
Hexagon screw
|
M6x70
|
| 4. |
VOE11306210
|
[8] |
Allen Head Screw
|
M12x30
|
| 40. |
ZM2801129
|
[1] |
Clip body
|
|
| 41. |
ZM2804424
|
[1] |
Plate
|
|
| 42. |
ZM8095518
|
[1] |
Screw
|
M8x50
|
| 43. |
ZM2811251
|
[1] |
Nipple
|
|
| 5. |
ZM2811757
|
[1] |
Hose
|
|
| 6. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 7. |
VOE11306490
|
[1] |
Nipple
|
|
| 8. |
ZM2120371
|
[1] |
O-ring
|
19,18x2,46
|
| 9. |
ZM2811749
|
[1] |
Hose
|
|
