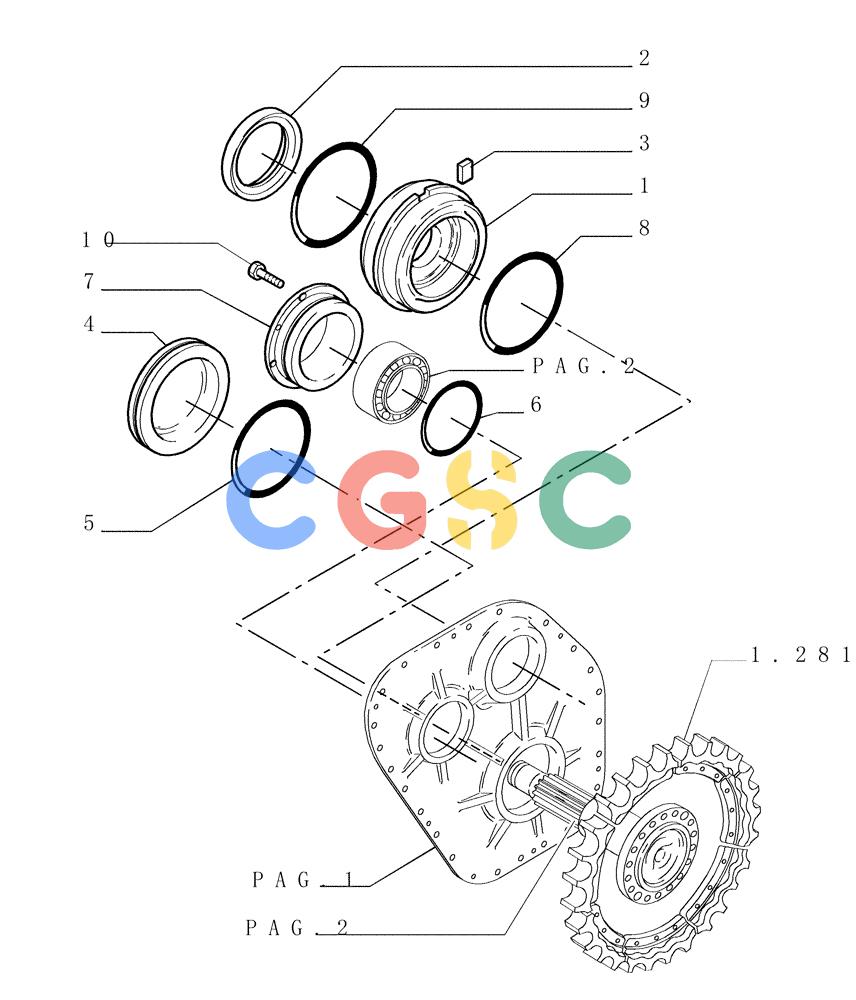

纽荷兰零件查询(DC150PS) - CRAWLER DOZER (1.277[03]) - FINAL DRIVE - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
581 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76048025 | [2] | BEARING HOUSING | LEC- BEARING |
| 2. | 40000520 | [4] | SEAL | MKT- ASSY 55X80X10 Superseded by part number: 40000521 |
| 3. | 76046069 | [2] | LOCKING PLATE | LEC |
| 4. | 76049671 | [2] | COVER | LEC |
| 5. | 14466681 | [2] | O-RING,120.24mm ID x 5.012" OD x 3.53mm | LEC(M120.24 ID x 3.53 Thk) Superseded by part number: 4897111 |
| 6. | 14467381 | [4] | GASKET | LEC3,53X142,50 Superseded by part number: 17292781 |
| 7. | 76042574 | [2] | COVER | LEC- BEARING |
| 8. | 14467681 | [2] | O-RING,152mm ID x 6.262" OD x 3.53mm | LEC(M152 ID x 3.53 Thk) |
| 9. | 14468281 | [2] | O-RING,190.1mm ID x 7.762" OD x 3.53mm | LEC(M190.1 ID x 3.53 Thk) |
| 10. | 14420131 | [8] | HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd | LEC |
