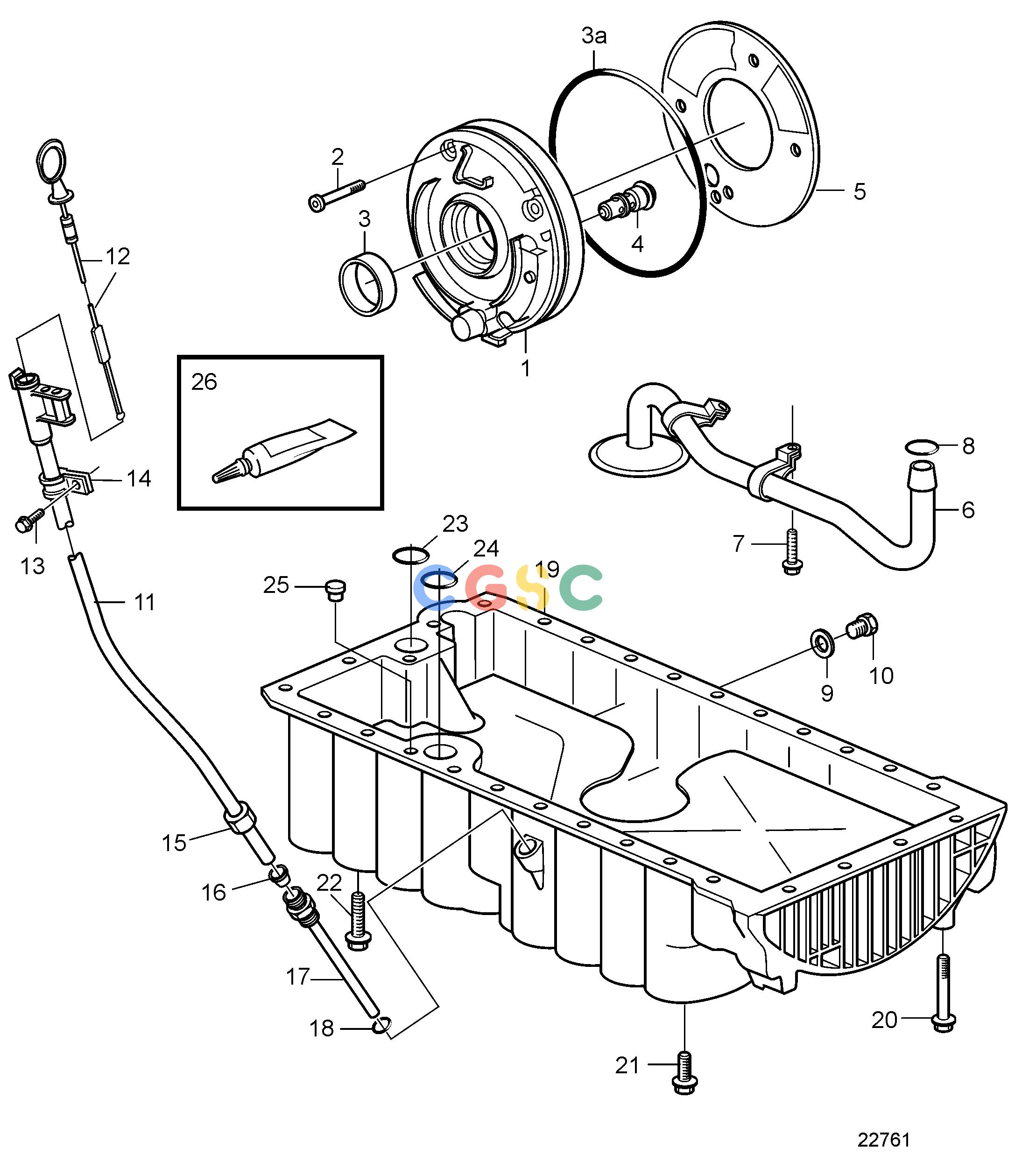

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Lubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
314 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30777092
|
[1] |
Oil pump
|
(30637377)
|
| 2. |
980880
|
[4] |
Six point socket scr
|
|
| 3. |
6842273
|
[1] |
Lip seal
|
|
| 3A. |
981204
|
[1] |
O-ring
|
|
| 4. |
8642166
|
[1] |
Valve
|
Repl by 30677893
|
| 4. |
30677893
|
[1] |
Piston cooling valve
|
Replaced by 30750943
|
| 4. |
30750943
|
[1] |
Piston cooling valve
|
|
| 5. |
1275404
|
[1] |
Gasket
|
|
| 6. |
9186116
|
[1] |
Suction pipe
|
Replaced by 30650552 and 2 pcs screw 968158.
|
| 6. |
30650552
|
[1] |
Suction line
|
|
| 7. |
968814
|
[1] |
Flange screw
|
|
| 7. |
968158
|
[2] |
Flange screw
|
|
| 8. |
30637867
|
[1] |
Sealing ring
|
|
| 9. |
11998
|
[1] |
Gasket
|
For servo pump.
|
| 10. |
3588129
|
[1] |
Plug
|
For servo pump.
|
| 11. |
3589182
|
[1] |
Tube
|
|
| 12. |
3587638
|
[1] |
Dipstick
|
|
| 13. |
946544
|
[1] |
Flange screw
|
Mount on aftercooler
|
| 14. |
952627
|
[1] |
Clamp
|
|
| 15. |
956984
|
[1] |
Fitting nut
|
|
| 16. |
980782
|
[1] |
Ferrule
|
|
| 17. |
21163590
|
[1] |
Suction pipe
|
Replaced by 21163590.
|
| 18. |
958226
|
[1] |
O-ring
|
|
| 19. |
8631507
|
[1] |
Sump
|
Replaced by 8250478
|
| 19. |
8250478
|
[1] |
Sump
|
|
| 20. |
980092
|
[4] |
Flange screw
|
|
| 21. |
975880
|
[22] |
Flange screw
|
M7x20mm
|
| 22. |
985322
|
[3] |
Flange screw
|
|
| 23. |
8631513
|
[1] |
Sealing ring
|
|
| 24. |
8642560
|
[1] |
Sealing ring
|
|
| 25. |
463963
|
[1] |
Valve
|
|
| 26. |
1161059
|
[1] |
Sealing compound
|
50ml, SN-2003004733, SN2003004843, SN2003004845, SN2003004852, SN2003004853, SN2003004857
|
| 26. |
1161771
|
[1] |
Sealing compound
|
SN2003004734-
|
