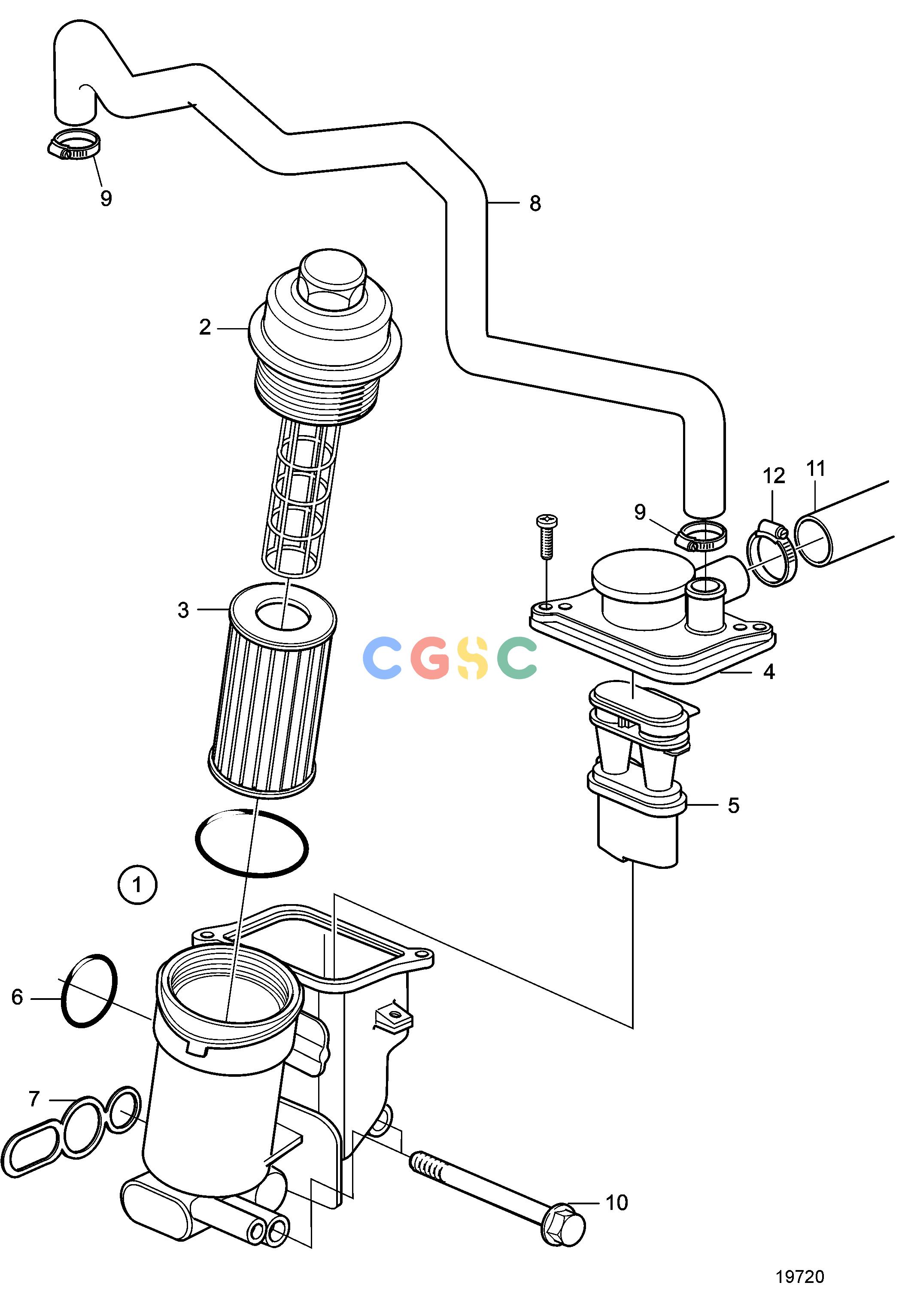

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Lubricating SystemOil FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
30677920
|
[1] |
Oil filter
|
(8642839)
|
| 2. |
8692306
|
[1] |
Cover
|
(8692304)
|
| 3. |
8692305
|
[1] |
Oil filter
|
|
| 4. |
8642424
|
[1] |
Valve
|
|
| 5. |
8642426
|
[1] |
Oil separator
|
Replaced by 30677920, Oil filter house.
|
| 6. |
8642828
|
[1] |
Seal
|
|
| 7. |
8642421
|
[1] |
Seal
|
|
| 8. |
8692241
|
[1] |
Hose
|
|
| 9. |
|
|
|
|
| 10. |
982781
|
[4] |
Flange screw
|
|
| 11. |
3586800
|
[1] |
Hose, crankhouse vent.
|
|
| 12. |
943473
|
[2] |
Hose clamp
|
|
