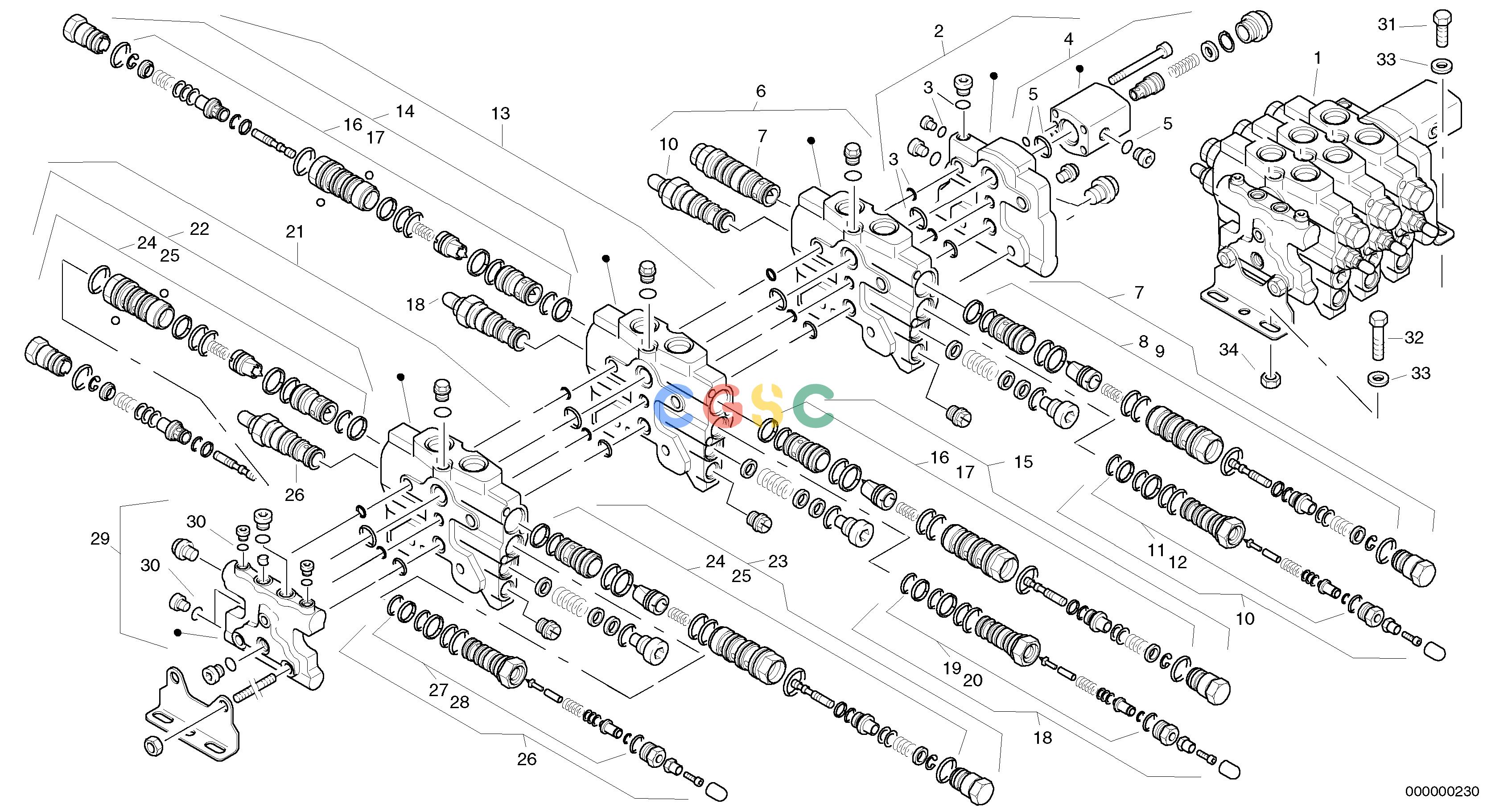

沃尔沃零件查询L40 Control valveTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812917
|
[1] |
Control valve, cpl.
|
|
| 10. |
VOE11716428
|
[2] |
Relief valve
|
|
| 11. |
ZM2907276
|
[REQ] |
Set of washers
|
|
| 12. |
ZM2907277
|
[REQ] |
Gasket kit
|
|
| 13. |
ZM2907287
|
[1] |
Valve Body
|
|
| 14. |
ZM2907282
|
[1] |
Volume Control
|
160 lpm
|
| 15. |
ZM2907283
|
[1] |
Valve
|
60 lpm
|
| 16. |
ZM2907278
|
[REQ] |
Set of washers
|
|
| 17. |
ZM2907279
|
[REQ] |
Gasket Kit
|
|
| 18. |
VOE11716428
|
[2] |
Relief valve
|
|
| 19. |
ZM2907276
|
[REQ] |
Set of washers
|
|
| 2. |
ZM2907269
|
[1] |
Inlet cover
|
|
| 20. |
ZM2907277
|
[REQ] |
Gasket kit
|
|
| 21. |
ZM2907288
|
[1] |
Cont Valve Kit
|
|
| 22. |
ZM2907282
|
[1] |
Volume Control
|
160 lpm
|
| 23. |
ZM2907281
|
[1] |
Volume meter
|
130 lpm
|
| 24. |
ZM2907278
|
[REQ] |
Set of washers
|
|
| 25. |
ZM2907279
|
[REQ] |
Gasket Kit
|
|
| 26. |
VOE11716428
|
[2] |
Relief valve
|
|
| 27. |
ZM2907276
|
[REQ] |
Set of washers
|
|
| 28. |
ZM2907277
|
[REQ] |
Gasket kit
|
|
| 29. |
ZM2907273
|
[1] |
End cover
|
|
| 3. |
ZM2907271
|
[1] |
Gasket kit
|
|
| 30. |
ZM2907274
|
[REQ] |
Gasket Kit
|
|
| 31. |
VOE997434
|
[2] |
Hexagon screw
|
M10x20
|
| 32. |
VOE11307042
|
[2] |
Hexagon screw
|
M10x35
|
| 33. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 34. |
ZM7098002
|
[2] |
Nut
|
M10
|
| 4. |
ZM2907270
|
[1] |
Non-return valve
|
|
| 5. |
ZM2907272
|
[1] |
Gasket Kit
|
|
| 6. |
ZM2907286
|
[1] |
Valve Body
|
|
| 7. |
ZM2907284
|
[2] |
Vol Cont Valve
|
100 lpm
|
| 8. |
ZM2907278
|
[REQ] |
Set of washers
|
|
| 9. |
ZM2907279
|
[REQ] |
Gasket Kit
|
|
