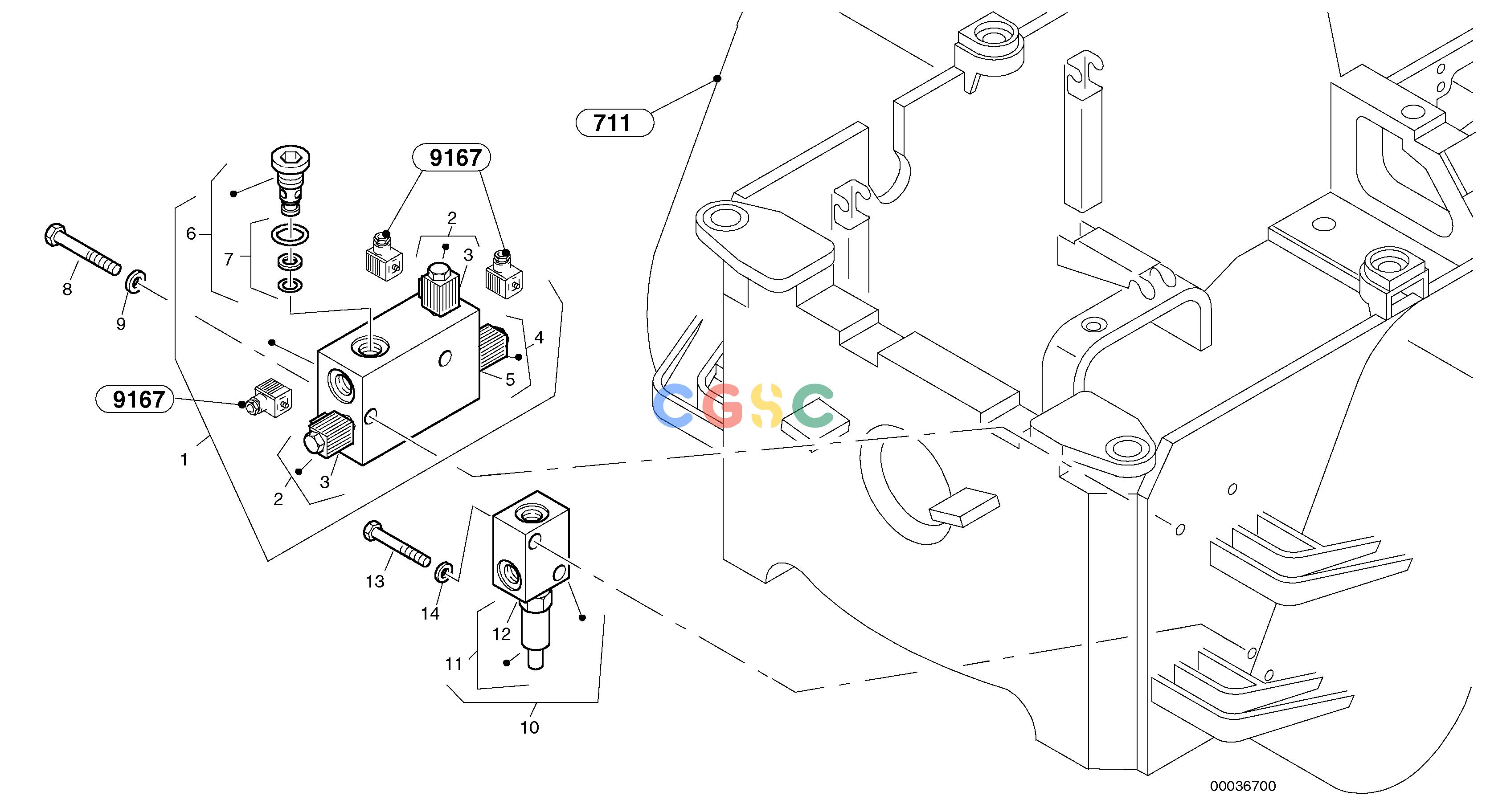

沃尔沃零件查询L40 Control valve - Boom suspension system (BSS)TYPE 191, 192 SER NO - 10001910001 - 1910106-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2803263
|
[1] |
Control bloc, cpl.
|
|
| 2. |
ZM2904943
|
[2] |
2/2 Way magnet valve
|
|
| 3. |
ZM2900009
|
[1] |
Gasket set
|
|
| 4. |
ZM2904944
|
[1] |
Magnet
|
|
| 5. |
ZM2288024
|
[1] |
Gasket set
|
|
| 6. |
ZM2900008
|
[1] |
Back-pressure valve
|
|
| 7. |
ZM2900010
|
[1] |
Gasket set
|
|
| 8. |
ZM7095952
|
[2] |
Bolt
|
M10x80
|
| 9. |
VOE960148
|
[2] |
Plain washer
|
B10,5
|
| 10. |
ZM2812924
|
[1] |
Pressure valve, cpl.
|
|
| 11. |
ZM2906887
|
[1] |
3-way pressure limiting valve
|
|
| 12. |
ZM2906888
|
[1] |
Gasket kit
|
|
| 13. |
VOE14370276
|
[2] |
Screw
|
M8x60
|
| 14. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
