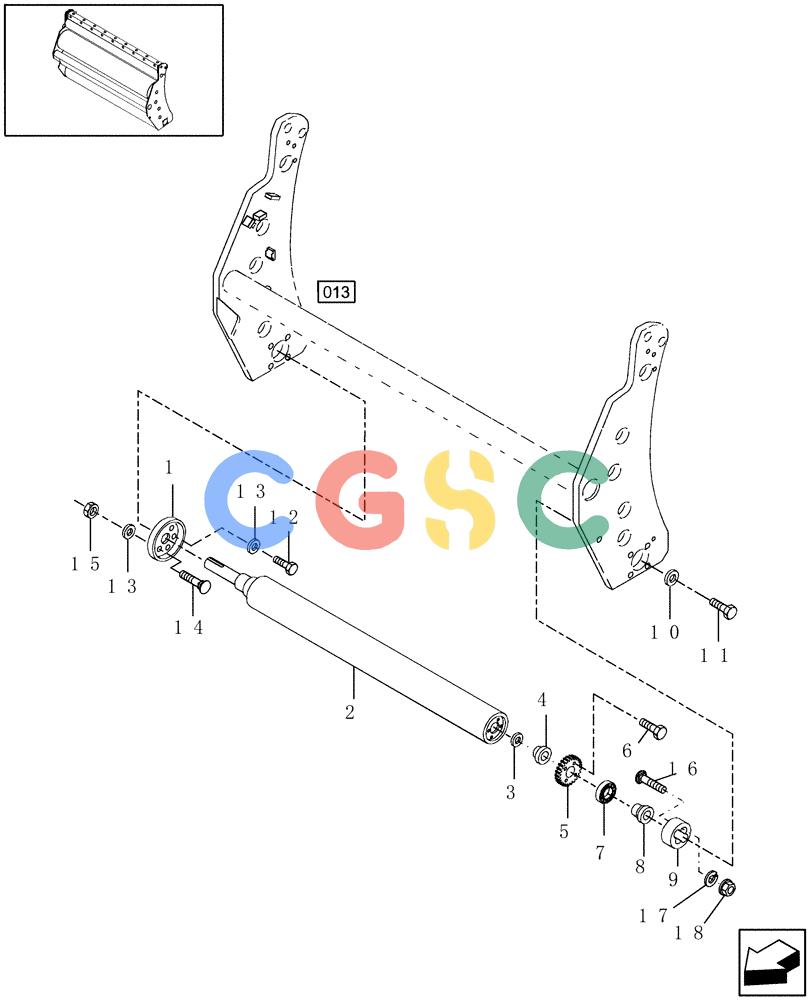

凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (021) - PIVOT ROLLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86628106
|
[1] |
SHIELD
|
NH
|
| 2. |
86637005
|
[1] |
ROLLER
|
NH
|
| 3. |
100-11177
|
[1] |
SNAP RING,#177, Ext
|
CAS
Superseded by part number: 168104
|
| 4. |
9803325
|
[1] |
SUPPORT
|
NH
|
| 5. |
86614686
|
[1] |
GEAR
|
NH
Roll, 24T, Includes: Ref. 7 Superseded by part number: 87052121
|
| 6. |
61-33128
|
[8] |
HEX SOC SCREW,5/16"-18 x 1 3/4"
|
CAS
All Units Except Silage Special Superseded by part number: 81972
|
| 6. |
413-840
|
[8] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
HH, G5, 1/2"-13 x 2-1/2" Superseded by part number: 87972
|
| 7. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Bearing
|
| 9. |
86636786
|
[1] |
HUB
|
NH
LH
|
| 10. |
492-11056
|
[1] |
LOCK WASHER,9/16"
|
CAS
Superseded by part number: 80280248
|
| 11. |
814-12060
|
[1] |
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 9706693
|
| 12. |
814-10040
|
[2] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| 13. |
492-11044
|
[4] |
LOCK WASHER,7/16"
|
CAS
Superseded by part number: 81547
|
| 14. |
811-10040
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 15. |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 16. |
419-2620
|
[4] |
PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 281004
|
| 17. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 18. |
232-4148
|
[4] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
