凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (020) - FLOOR ROLLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
896 次

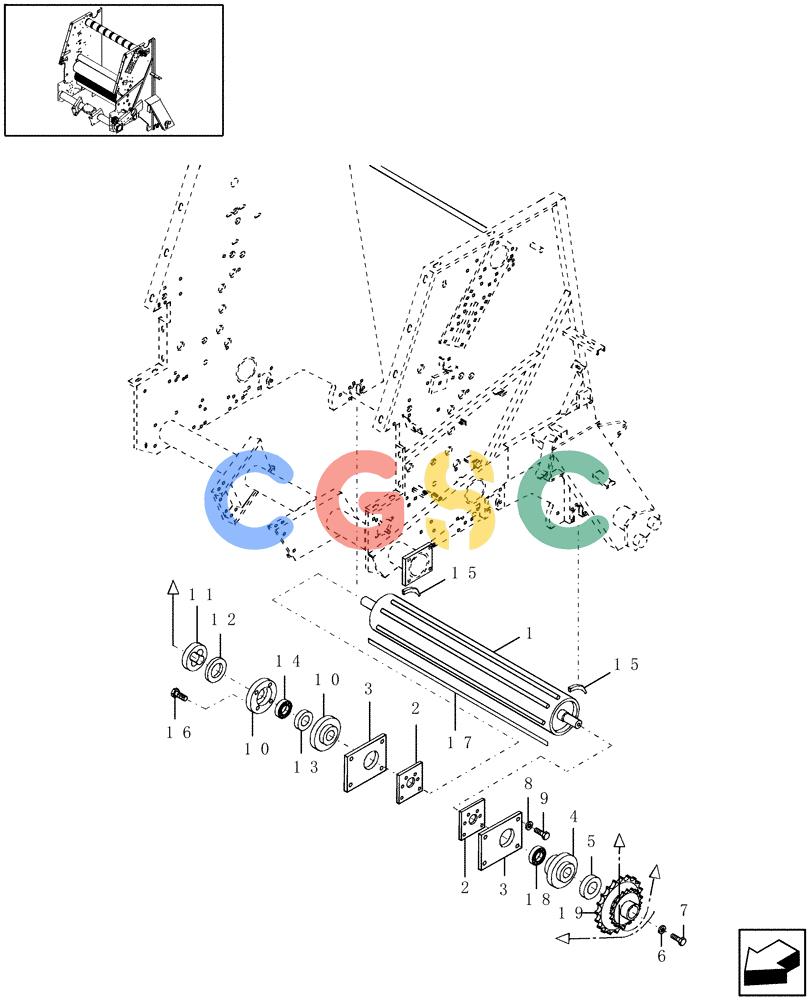

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86637240
|
[1] |
ROLLER
|
NH
Floor
|
| 2. |
86636645
|
[2] |
PLATE
|
NH
Wear
|
| 3. |
86637215
|
[2] |
PLATE
|
NH
|
| 4. |
86636676
|
[1] |
BEARING ASSY
|
NH
Includes: Ref. 18
|
| 5. |
455112R11
|
[1] |
COLLAR
|
IH
Includes: Setscrew Superseded by part number: 47577185
|
| 6. |
692300
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk
|
NH
2" OD x 3/16" Thk
|
| 7. |
814-10040
|
[1] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| 8. |
492-11044
|
[4] |
LOCK WASHER,7/16"
|
CAS
Superseded by part number: 81547
|
| 9. |
814-10060
|
[4] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 120070
|
| 10. |
86635012
|
[2] |
FLANGE
|
NH
Bearing
|
| 11. |
86637012
|
[1] |
RING
|
NH
|
| 12. |
86635211
|
[1] |
RING
|
NH
|
| 13. |
517645R11
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577188
|
| 14. |
571588R92
|
[1] |
BALL BEARING,1.3755" ID x 72 mm OD x 1"
|
IH
Superseded by part number: 47066
|
| 15. |
86637198
|
[2] |
HALF-DISC
|
NH
|
| 16. |
614-16040
|
[1] |
BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86509867
|
| 17. |
9840158
|
[1] |
KIT
|
NH
Floor Roller Traction Tape, 3" x 44"
|
| 18. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
| 19. |
86637270
|
[1] |
DRIVEN SPROCKET
|
NH
Wide Pickup
|
