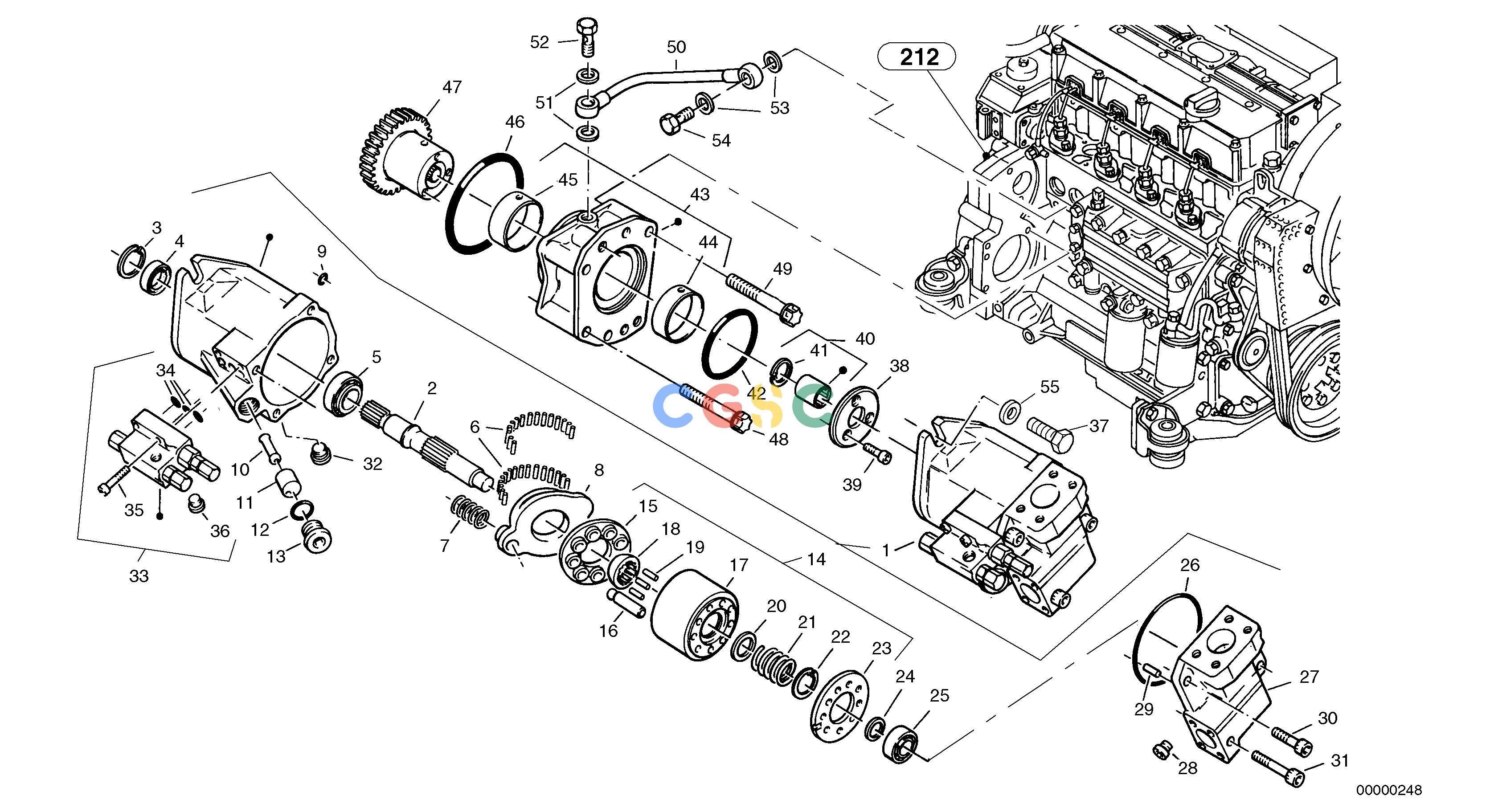

沃尔沃零件查询L40 Pump - working hydraulicTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2814927
|
[1] |
Hydraulic pump
|
|
| 10. |
ZM2901377
|
[1] |
Piston pin
|
|
| 11. |
ZM2901376
|
[1] |
Piston
|
|
| 12. |
ZM2901387
|
[1] |
O-ring
|
23,47x2,95
|
| 13. |
ZM2901381
|
[1] |
Screw plug
|
|
| 14. |
ZM2901383
|
[1] |
Gear
|
|
| 15. |
ZM2901391
|
[1] |
Pull-back plate
|
|
| 16. |
ZM2901385
|
[9] |
Piston
|
|
| 17. |
ZM2285707
|
[1] |
Cylinder
|
|
| 18. |
ZM2901392
|
[1] |
Pull-back ball
|
|
| 19. |
ZM2901393
|
[3] |
Pressure pin
|
|
| 2. |
ZM2901380
|
[1] |
Drive shaft
|
|
| 20. |
ZM2283550
|
[1] |
Support washer
|
|
| 21. |
ZM2283548
|
[1] |
Spring
|
|
| 22. |
ZM1089340
|
[1] |
V-ring
|
|
| 23. |
ZM2901390
|
[1] |
Plate
|
|
| 24. |
ZM2283531
|
[1] |
Tuning plate
|
|
| 25. |
VOE11992817
|
[1] |
Roller bearing
|
|
| 26. |
VOE11998858
|
[1] |
O-ring
|
120x2,5
|
| 27. |
ZM2901378
|
[1] |
Connection plate
|
|
| 28. |
ZM2283125
|
[1] |
Contact breaking plug
|
|
| 29. |
ZM2280070
|
[1] |
Cylindric pin
|
6m6x18
|
| 3. |
VOE11704812
|
[1] |
Snap ring
|
|
| 30. |
VOE997877
|
[3] |
Hex. socket screw
|
M12x35
|
| 31. |
VOE14503900
|
[3] |
Screw
|
M12x65
|
| 32. |
ZM2901389
|
[1] |
Screw plug
|
|
| 33. |
VOE11998863
|
[1] |
Valve
|
|
| 34. |
ZM2283145
|
[3] |
O-ring
|
7,65x1,78
|
| 35. |
ZM8096791
|
[4] |
Screw
|
M6x30
|
| 36. |
ZM2282402
|
[1] |
Screw plug
|
|
| 37. |
VOE11306530
|
[2] |
Hexagon screw
|
M12x35
|
| 38. |
VOE20450811
|
[1] |
Thrust washer
|
|
| 39. |
VOE20450822
|
[3] |
Screw
|
M6x16
|
| 4. |
ZM2283535
|
[1] |
Gasket
|
|
| 40. |
VOE20459123
|
[1] |
Sleeve
|
|
| 41. |
ZM8094955
|
[1] |
Snap Ring
|
19x1
|
| 42. |
ZM2900654
|
[1] |
O-ring
|
|
| 43. |
VOE20450805
|
[1] |
Bearing flange
|
|
| 44. |
VOE20450809
|
[1] |
Bushing
|
|
| 45. |
VOE20450807
|
[1] |
Bushing
|
|
| 46. |
VOE20450818
|
[1] |
O-ring
|
|
| 47. |
VOE20450813
|
[1] |
Gear
|
|
| 48. |
VOE20450820
|
[2] |
Screw
|
|
| 49. |
VOE22316512
|
[2] |
Six point screw
|
|
| 5. |
VOE11714943
|
[1] |
Needle bearing
|
|
| 50. |
ZM2907357
|
[1] |
Oil Pipe
|
|
| 51. |
VOE13947281
|
[2] |
Gasket
|
A10x13,5
|
| 52. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 53. |
ZM7099503
|
[2] |
Seal
|
A14x18
|
| 54. |
VOE980973
|
[1] |
Hollow screw
|
6
|
| 55. |
ZM4333064
|
[1] |
Washer
|
13
|
| 6. |
VOE11998856
|
[2] |
Bearing
|
|
| 7. |
ZM2901382
|
[1] |
Spring
|
|
| 8. |
ZM2901379
|
[1] |
Slewing rocker
|
|
| 9. |
VOE11998860
|
[1] |
O-ring
|
7x2
|
