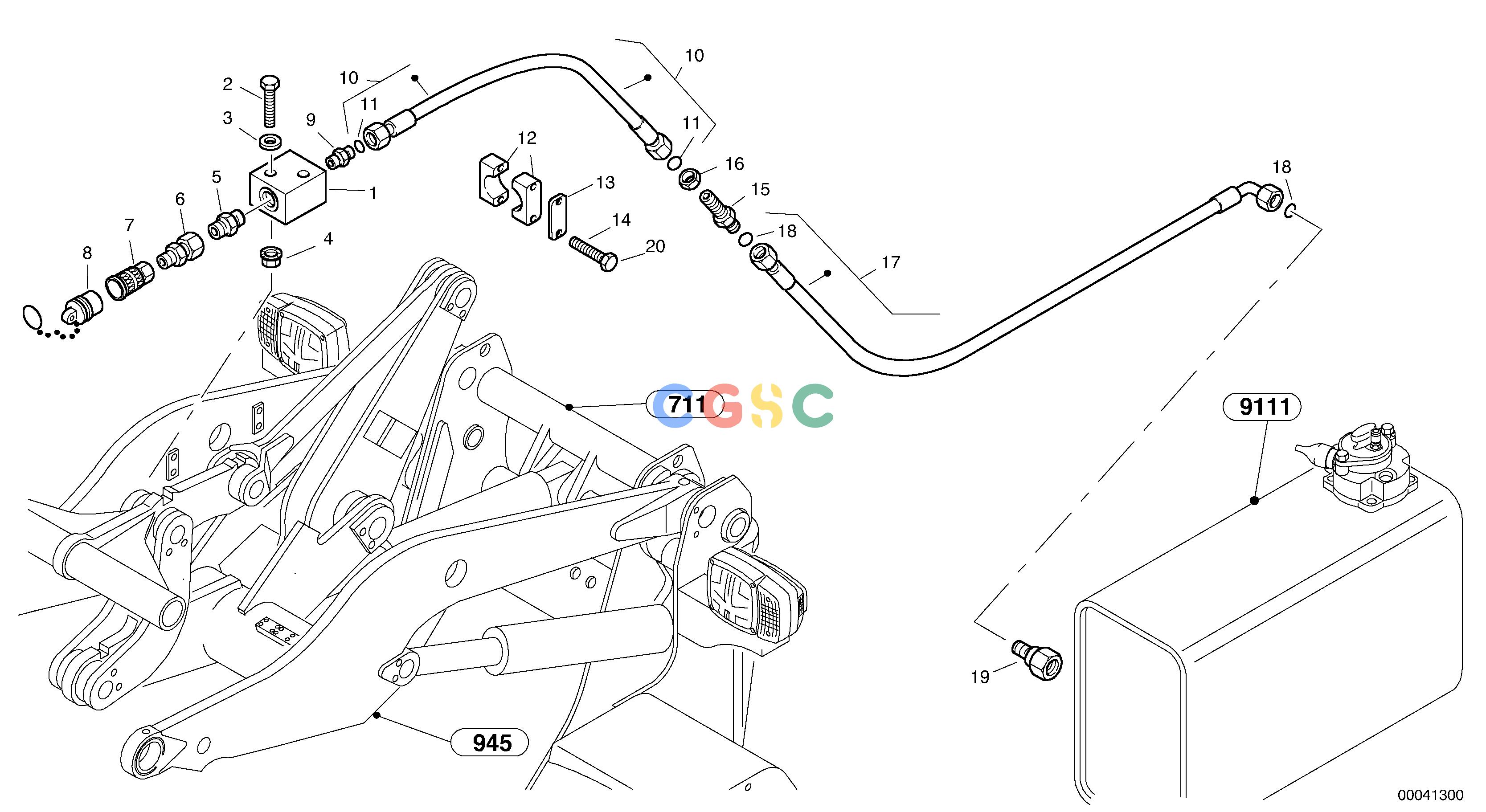

沃尔沃零件查询L40 Leakage line - OptionTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2806600
|
[1] |
Distributor
|
|
| 10. |
ZM2801742
|
[1] |
Hose
|
|
| 11. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 12. |
ZM2801725
|
[2] |
Clamp
|
|
| 13. |
ZM2801723
|
[2] |
Cover
|
|
| 14. |
VOE955284
|
[4] |
Hexagon screw
|
M6x80
|
| 15. |
VOE11306368
|
[1] |
Nipple
|
L18
|
| 16. |
VOE957021
|
[1] |
Hexagon nut
|
M26x1,5
|
| 17. |
ZM2813353
|
[1] |
Hose
|
|
| 18. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 19. |
VOE4780402
|
[1] |
Reduction
|
|
| 2. |
VOE955280
|
[2] |
Hexagon screw
|
M6x60
|
| 20. |
VOE955287
|
[4] |
Hexagon screw
|
M6x110
|
| 3. |
VOE955892
|
[2] |
Plain washer
|
B6,4
|
| 4. |
VOE977222
|
[2] |
Rivet nut
|
M6x16
|
| 5. |
VOE11306935
|
[1] |
Nipple
|
S20G3/4 B
|
| 6. |
VOE11305557
|
[1] |
Fitting
|
|
| 7. |
VOE11043021
|
[1] |
Sleeve
|
|
| 8. |
ZM2814836
|
[1] |
Dust cover
|
|
| 9. |
VOE11306367
|
[1] |
Fitting
|
L18G1/2 B
|
