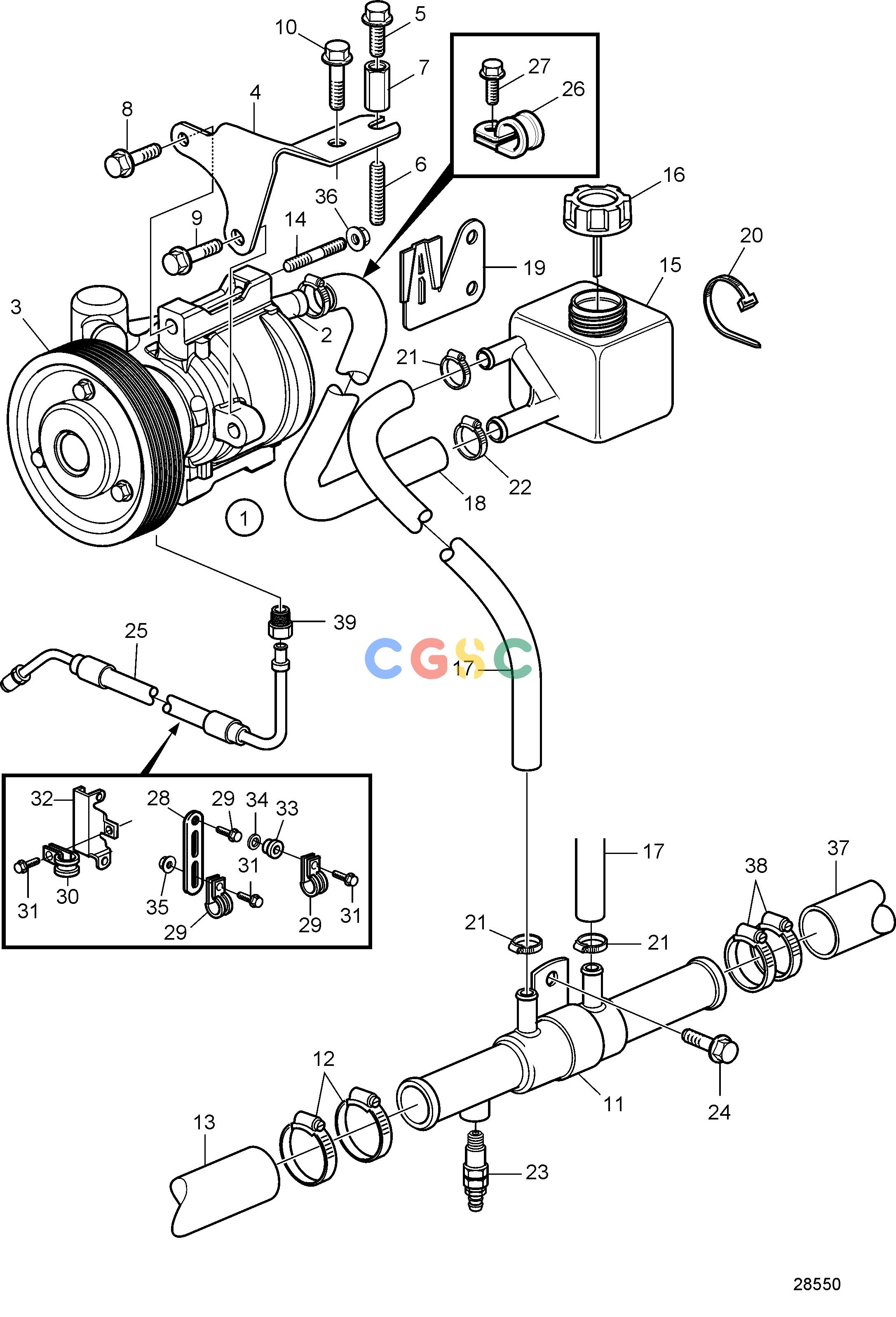

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Steering SystemServo Pump and Cooler for Stern DrivesEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22297931
|
[1] |
Servo pump
|
Replaced by 22797782
|
| 1. |
22797782
|
[1] |
Servo pump
|
|
| 2. |
22064228
|
[1] |
Inlet pipe
|
|
| 3. |
3583030
|
[1] |
Pulley
|
|
| 4. |
3584471
|
[1] |
Bracket
|
|
| 5. |
947107
|
[1] |
Flange screw
|
For groud cable
|
| 6. |
953045
|
[1] |
Stud
|
For groud cable
|
| 7. |
855314
|
[1] |
Spacer nut
|
For groud cable
|
| 8. |
946440
|
[1] |
Flange screw
|
|
| 9. |
946440
|
[1] |
Flange screw
|
|
| 10. |
945444
|
[1] |
Flange screw
|
|
| 11. |
3808545
|
[1] |
Oil cooler
|
|
| 12. |
961670
|
[2] |
Hose clamp
|
|
| 13. |
3584356
|
[1] |
Hose
|
|
| 14. |
953047
|
[2] |
Stud
|
|
| 15. |
6819752
|
[1] |
Reservoir
|
|
| 16. |
1359625
|
[1] |
Cover
|
|
| 17. |
872217
|
[2] |
Return hose
|
|
| 18. |
941995
|
[1] |
Hose
|
L=1,5m
|
| 19. |
856768
|
[1] |
Bracket
|
|
| 20. |
948211
|
[1] |
Cable tie
|
|
| 21. |
961664
|
[3] |
Hose clamp
|
|
| 22. |
943472
|
[2] |
Hose clamp
|
|
| 23. |
949918
|
[1] |
Shut-off cock
|
|
| 24. |
946440
|
[1] |
Flange screw
|
|
| 25. |
3588362
|
[1] |
Hose, steering cylinder
|
|
| 26. |
952637
|
[1] |
Clamp
|
|
| 27. |
946934
|
[1] |
Flange screw
|
|
| 28. |
965541
|
[1] |
Bracket
|
|
| 29. |
981177
|
[1] |
Flange screw
|
|
| 30. |
952631
|
[3] |
Clamp
|
|
| 31. |
967949
|
[3] |
Flange screw
|
|
| 32. |
3587913
|
[1] |
Protecting plate
|
|
| 33. |
3588129
|
[1] |
Plug
|
|
| 34. |
11998
|
[1] |
Gasket
|
|
| 35. |
945407
|
[1] |
Flange nut
|
|
| 36. |
945408
|
[2] |
Flange nut
|
|
| 37. |
3584445
|
[1] |
Hose
|
|
| 37. |
3812938
|
[1] |
Hose
|
For XDP Drive
|
| 38. |
993963
|
[2] |
Hose clamp
|
|
| 39. |
22650621
|
[1] |
Adapter
|
Use together with Servo Pump 22797782
|
