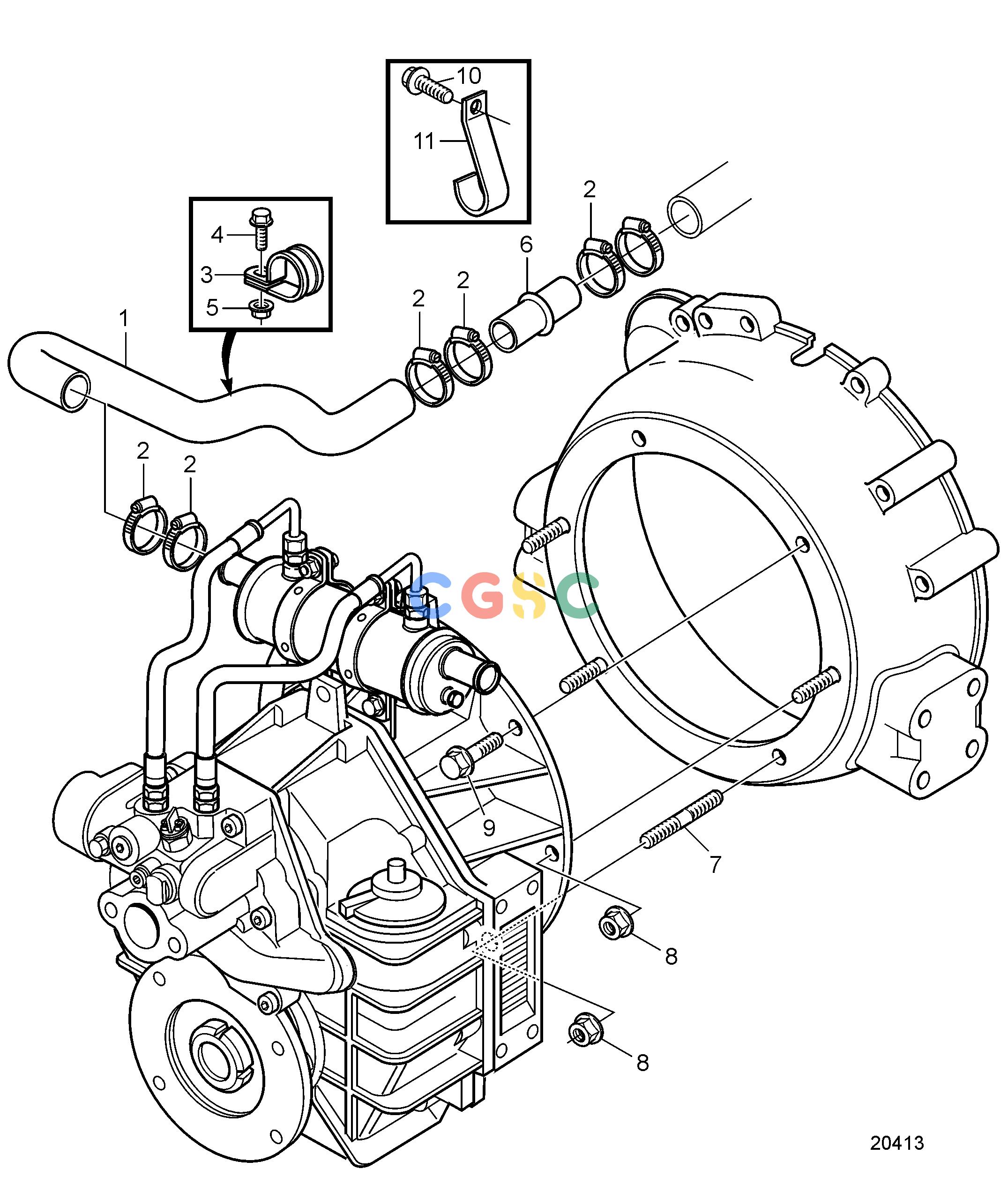

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-TransmissionsConnecting Components for HS25A-A and HS45A-AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3807634
|
[1] |
Hose
|
|
| 2. |
993963
|
[6] |
Hose clamp
|
|
| 3. |
967645
|
[1] |
Clamp
|
Mount on engine suspension.
|
| 4. |
947542
|
[1] |
Flange screw
|
Mount on engine suspension.
|
| 5. |
945407
|
[1] |
Flange nut
|
Mount on engine suspension.
|
| 6. |
861090
|
[1] |
Tube
|
|
| 7. |
953067
|
[4] |
Stud
|
|
| 8. |
971095
|
[4] |
Flange nut
|
|
| 9. |
946472
|
[2] |
Flange screw
|
|
| 10. |
3580798
|
[1] |
Clamp
|
|
| 11. |
944926
|
[1] |
Flange screw
|
|
