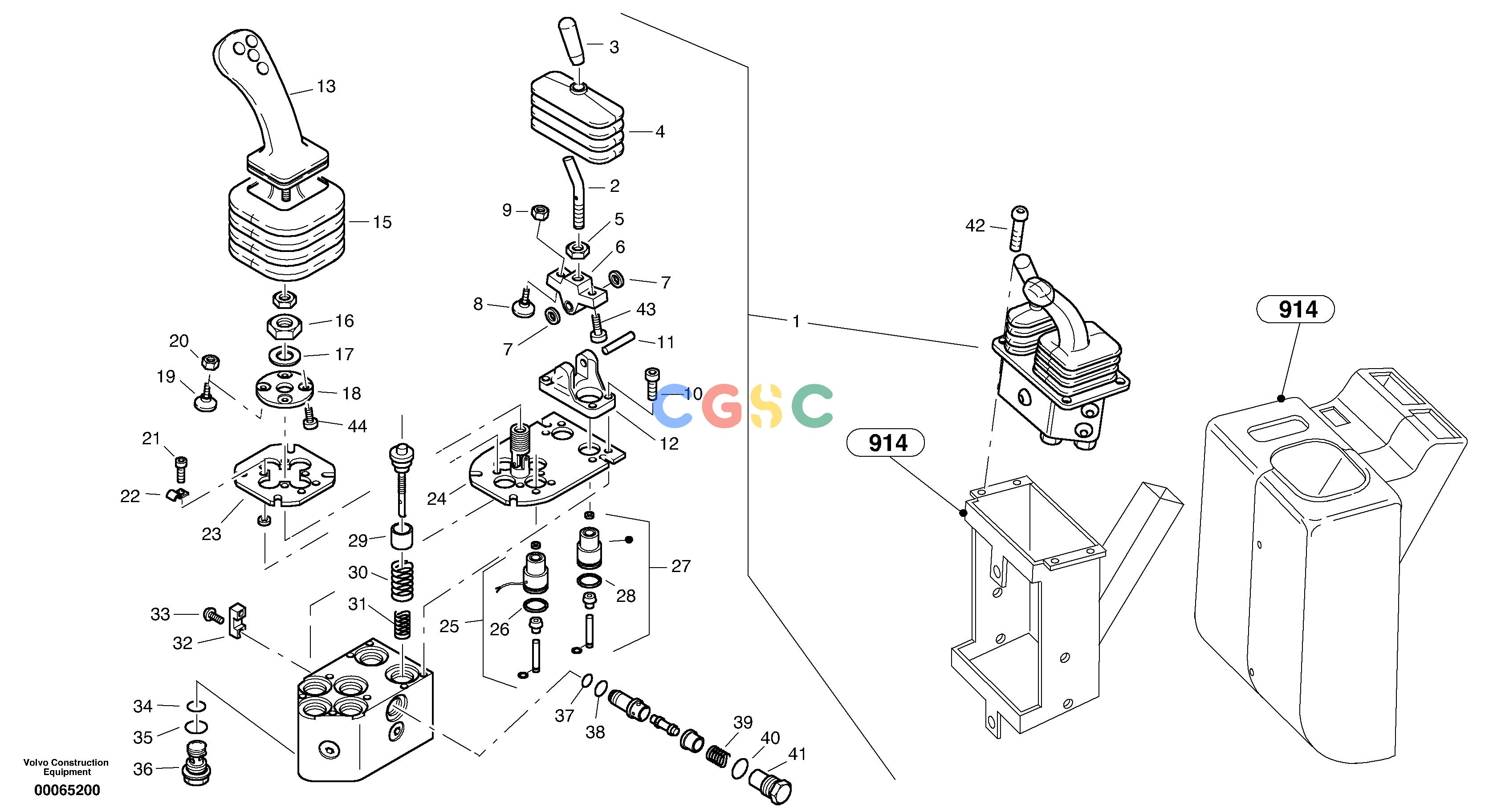

沃尔沃零件查询L40 Servo control valveTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2812933
|
[1] |
Servo control valve, cpl.
|
-1910114/-1920216
|
| 1. |
ZM2812933
|
[1] |
Servo control valve, cpl.
|
1910115-/1920217-
|
| 2. |
ZM2905281
|
[1] |
Lever
|
|
| 3. |
ZM2905283
|
[1] |
Button
|
|
| 4. |
ZM2905000
|
[1] |
Rubber bellows
|
|
| 5. |
ZM2905289
|
[1] |
Nut
|
|
| 6. |
ZM2907224
|
[1] |
Bearing
|
|
| 7. |
ZM2905284
|
[2] |
Washer
|
|
| 8. |
ZM2907225
|
[2] |
Thrust plate
|
|
| 9. |
ZM2905288
|
[2] |
Nut
|
|
| 10. |
ZM2907226
|
[4] |
Screw
|
|
| 11. |
ZM2905290
|
[1] |
Pin
|
|
| 12. |
ZM2905287
|
[1] |
Holder
|
|
| 13. |
ZM2815481
|
[1] |
Control arm
|
|
| 15. |
ZM2904999
|
[1] |
Rubber bellows
|
|
| 16. |
ZM2905292
|
[1] |
Nut
|
|
| 17. |
ZM2905293
|
[1] |
Washer
|
|
| 18. |
ZM2905294
|
[1] |
Plate
|
|
| 19. |
ZM2905285
|
[1] |
Absorber
|
|
| 20. |
ZM2905288
|
[4] |
Nut
|
|
| 21. |
ZM2905296
|
[4] |
Screw
|
|
| 22. |
ZM2905295
|
[4] |
Clip
|
|
| 23. |
ZM2905297
|
[1] |
Plate
|
|
| 24. |
ZM2907227
|
[1] |
Plate
|
|
| 25. |
ZM2904998
|
[2] |
Magnet
|
|
| 26. |
ZM2905317
|
[2] |
O-ring
|
|
| 27. |
ZM2904997
|
[4] |
Filling piece
|
|
| 28. |
ZM2905317
|
[4] |
O-ring
|
|
| 29. |
ZM2905319
|
[6] |
Sleeve
|
|
| 30. |
ZM2905318
|
[6] |
Spring
|
|
| 31. |
ZM2902601
|
[6] |
Spring
|
|
| 32. |
ZM2905328
|
[1] |
Clamp
|
|
| 33. |
ZM2905327
|
[2] |
Screw
|
|
| 34. |
ZM2905325
|
[6] |
O-ring
|
|
| 35. |
ZM2905326
|
[6] |
O-ring
|
|
| 36. |
ZM2905329
|
[6] |
Connector
|
|
| 37. |
ZM2905324
|
[1] |
O-ring
|
|
| 38. |
ZM2905325
|
[1] |
O-ring
|
|
| 39. |
ZM2905332
|
[1] |
Spring
|
|
| 40. |
ZM2905331
|
[1] |
O-ring
|
|
| 41. |
ZM2905316
|
[1] |
Plug
|
|
| 42. |
ZM2810327
|
[4] |
Screw
|
M6x16
|
| 43. |
ZM2907225
|
[3] |
Thrust plate
|
|
| 44. |
ZM2915127
|
[1] |
Thrust plate
|
|
