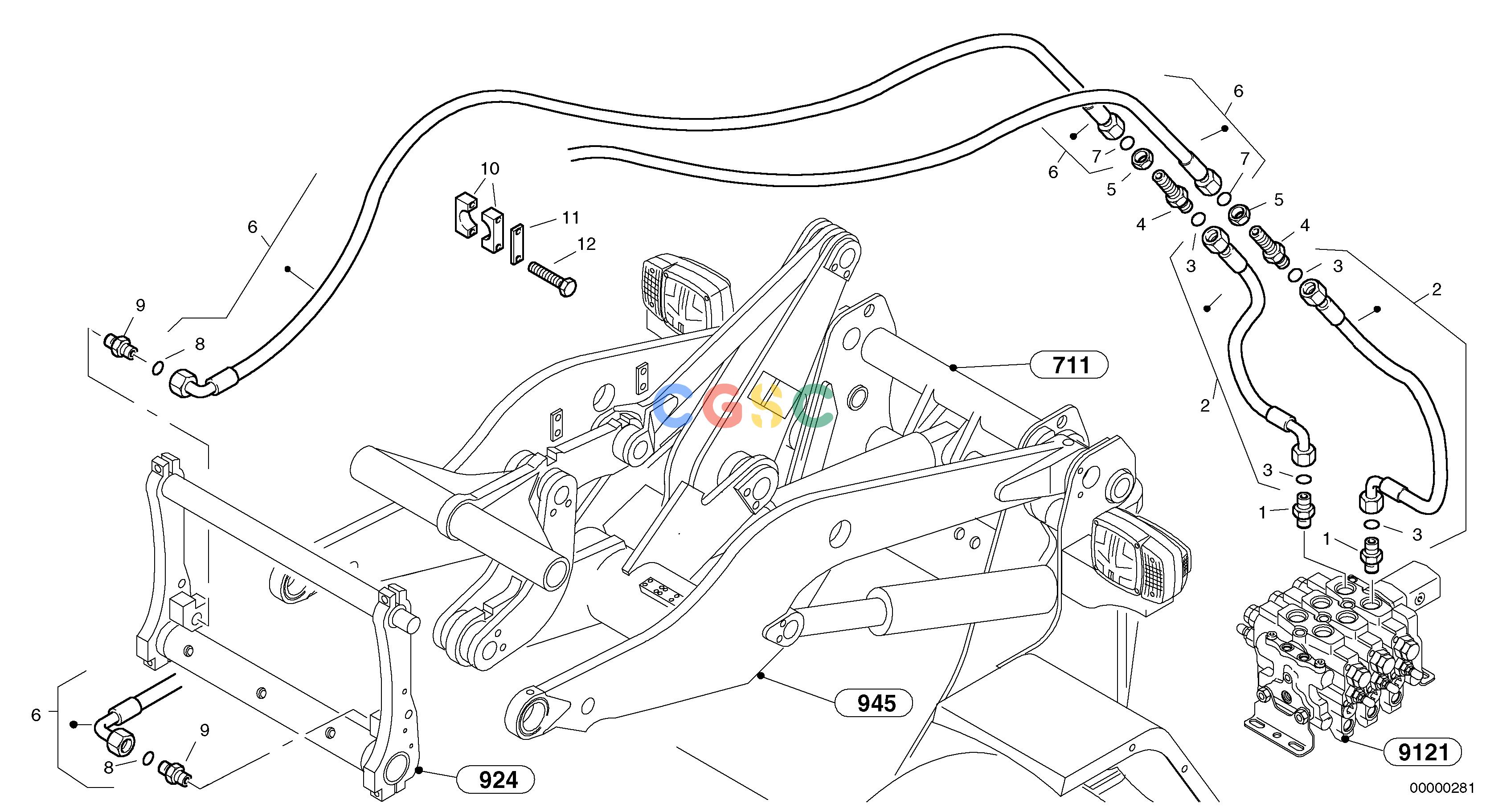

沃尔沃零件查询L40 Lines to attachment mounting plate - TpzTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
575 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811251
|
[2] |
Nipple
|
|
| 9. |
ZM2811243
|
[2] |
Nipple
|
|
| 10. |
ZM2811425
|
[6] |
Clamp
|
|
| 11. |
ZM2801723
|
[6] |
Cover
|
|
| 12. |
VOE940101
|
[12] |
Hexagon screw
|
M6x40
|
| 2. |
ZM2811751
|
[2] |
Hose
|
|
| 3. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 4. |
VOE11306368
|
[2] |
Nipple
|
L18
|
| 5. |
VOE957021
|
[2] |
Hexagon nut
|
M26x1,5
|
| 6. |
ZM2811747
|
[2] |
Hose
|
|
| 6. |
ZM2815357
|
[2] |
Hose
|
|
| 7. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 8. |
ZM2259050
|
[1] |
O-ring
|
13x2
|
