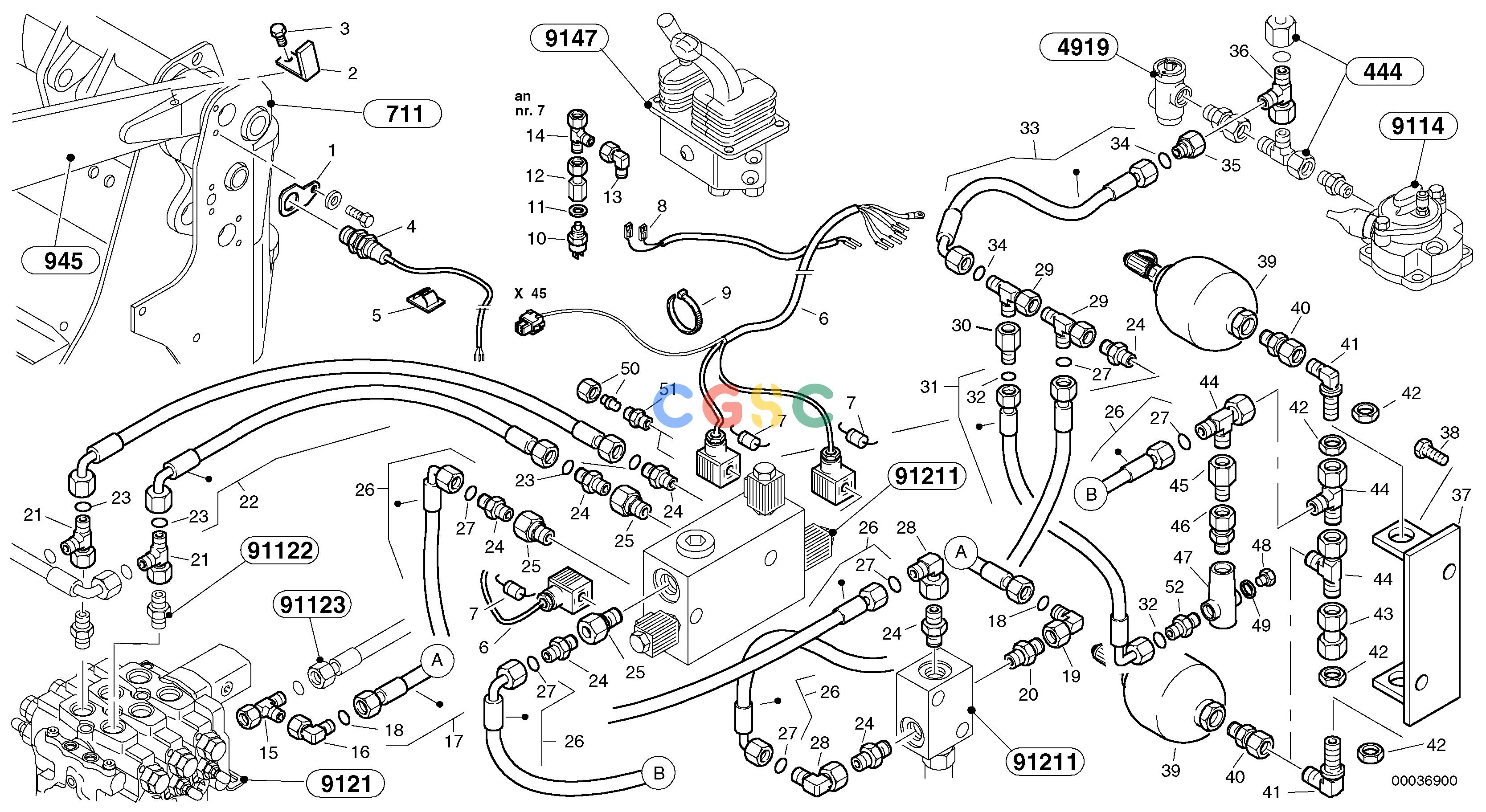

沃尔沃零件查询L40 Boom suspension system (BSS)TYPE 191, 192 SER NO - 10001910001 - 1910106-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2816449
|
[1] |
Retainer
|
|
| 10. |
ZM4373248
|
[1] |
Switch
|
|
| 11. |
VOE13947282
|
[1] |
Gasket
|
A12x16
|
| 12. |
ZM2815542
|
[1] |
Transition pipe
|
|
| 13. |
VOE13963371
|
[1] |
Nipple
|
L8
|
| 14. |
VOE13964057
|
[1] |
Joint nipple
|
|
| 15. |
VOE11306491
|
[1] |
T-nipple
|
L18
|
| 16. |
VOE946390
|
[1] |
Elbow nipple
|
L18
|
| 17. |
VOE11306674
|
[1] |
Hose assembly
|
|
| 18. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 19. |
VOE946390
|
[1] |
Elbow nipple
|
L18
|
| 2. |
ZM2815541
|
[1] |
Angle
|
|
| 20. |
VOE11306367
|
[1] |
Fitting
|
L18G1/2 B
|
| 21. |
VOE11306491
|
[2] |
T-nipple
|
L18
|
| 22. |
ZM2813353
|
[2] |
Hose
|
|
| 23. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 24. |
VOE11306367
|
[7] |
Fitting
|
L18G1/2 B
|
| 25. |
VOE11305310
|
[3] |
Fitting
|
|
| 26. |
ZM2803357
|
[3] |
Hose
|
|
| 27. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 28. |
VOE946390
|
[2] |
Elbow nipple
|
L18
|
| 29. |
VOE11306491
|
[2] |
T-nipple
|
L18
|
| 3. |
VOE13955272
|
[1] |
Screw
|
M6x20
|
| 30. |
VOE11305566
|
[1] |
Reduction nipple
|
|
| 31. |
VOE11305637
|
[1] |
Hose assembly
|
2100 mm
|
| 32. |
ZM2259050
|
[2] |
O-ring
|
13x2
|
| 33. |
ZM2811756
|
[1] |
Hose
|
|
| 34. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 35. |
VOE4780402
|
[1] |
Reduction
|
|
| 36. |
VOE964059
|
[1] |
T-nipple
|
L22
|
| 37. |
ZM2815540
|
[1] |
Holder
|
|
| 38. |
VOE983251
|
[2] |
Hexagon screw
|
M10x25
|
| 39. |
VOE15233830
|
[3] |
Accumulator
|
|
| 4. |
ZM2813901
|
[1] |
Impulse sensor
|
|
| 40. |
VOE11306452
|
[3] |
Fitting
|
L18G1/2 B
|
| 41. |
VOE11306285
|
[2] |
Fitting
|
L18
|
| 42. |
VOE957021
|
[4] |
Hexagon nut
|
M26x1,5
|
| 43. |
ZM2815546
|
[1] |
Pipe
|
|
| 44. |
VOE11306491
|
[3] |
T-nipple
|
L18
|
| 45. |
VOE11305566
|
[1] |
Reduction nipple
|
|
| 46. |
VOE11305198
|
[1] |
Fitting
|
|
| 47. |
VOE11305553
|
[1] |
Pressure limiting valve
|
|
| 48. |
VOE11305512
|
[1] |
Lock plug
|
AM18x1,5
|
| 49. |
ZM7099512
|
[1] |
Seal
|
A18x22
|
| 5. |
VOE11305436
|
[2] |
Clip
|
|
| 50. |
VOE11306675
|
[2] |
Sealing plug
|
|
| 51. |
ZM7091978
|
[2] |
Nipple
|
L6MB
|
| 6. |
ZM2815544
|
[1] |
Electric wire
|
|
| 7. |
ZM4374365
|
[3] |
Diode
|
|
| 8. |
ZM2815545
|
[1] |
Electric wire
|
|
| 9. |
ZM4375500
|
[8] |
Cable clamp
|
|
