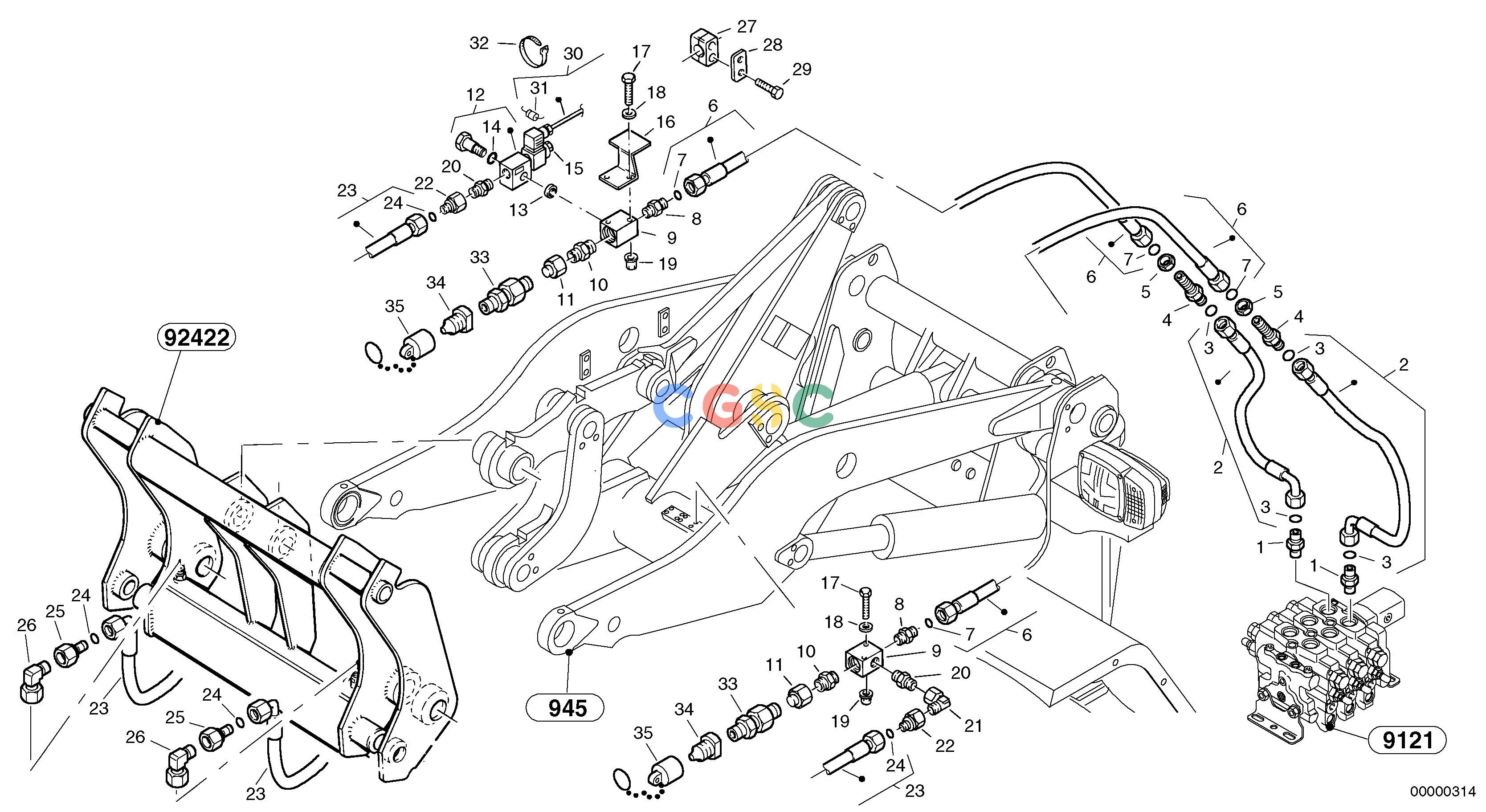

沃尔沃零件查询L40 Lines to attachment mounting plate - TpvTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1000 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811251
|
[2] |
Nipple
|
|
| 9. |
ZM2804248
|
[2] |
Distributor
|
|
| 10. |
VOE11306935
|
[2] |
Nipple
|
S20G3/4 B
|
| 11. |
VOE11305684
|
[2] |
Sealing plug
|
|
| 12. |
ZM4363311
|
[2] |
Block
|
|
| 13. |
ZM2903028
|
[1] |
Ring
|
|
| 14. |
ZM2903029
|
[1] |
O-ring
|
|
| 15. |
ZM4363310
|
[1] |
Back-pressure valve
|
|
| 16. |
ZM2804827
|
[2] |
Cover plate
|
|
| 17. |
VOE955280
|
[4] |
Hexagon screw
|
M6x60
|
| 18. |
VOE955892
|
[4] |
Plain washer
|
B6,4
|
| 2. |
ZM2811751
|
[2] |
Hose
|
|
| 19. |
VOE977222
|
[4] |
Rivet nut
|
M6x16
|
| 20. |
ZM7091971
|
[2] |
Nipple
|
L15
|
| 21. |
ZM8092741
|
[1] |
Angular fitting
|
L15
|
| 22. |
VOE11305311
|
[2] |
Fitting
|
|
| 23. |
VOE11306419
|
[2] |
Hose assembly
|
|
| 24. |
ZM1089232
|
[4] |
O-ring
|
|
| 25. |
VOE11307078
|
[2] |
Fitting
|
|
| 26. |
VOE13964016
|
[2] |
Nipple
|
|
| 27. |
ZM2801725
|
[4] |
Clamp
|
|
| 28. |
ZM2801723
|
[4] |
Cover
|
|
| 3. |
VOE11706795
|
[2] |
O-ring
|
15x2
|
| 29. |
VOE940101
|
[8] |
Hexagon screw
|
M6x40
|
| 30. |
ZM2813625
|
[1] |
Electric wire
|
|
| 31. |
ZM4374365
|
[1] |
Diode
|
|
| 32. |
ZM4375500
|
[10] |
Cable clamp
|
|
| 33. |
VOE11305557
|
[2] |
Fitting
|
|
| 34. |
VOE11043022
|
[2] |
Nipple
|
|
| 35. |
VOE11147586
|
[2] |
Dust cover
|
|
| 4. |
VOE11306368
|
[2] |
Nipple
|
L18
|
| 5. |
VOE957021
|
[2] |
Hexagon nut
|
M26x1,5
|
| 6. |
ZM2801742
|
[2] |
Hose
|
|
| 7. |
VOE11706795
|
[4] |
O-ring
|
15x2
|
| 8. |
VOE11306367
|
[2] |
Fitting
|
L18G1/2 B
|
| 9. |
ZM2806600
|
[2] |
Distributor
|
|
