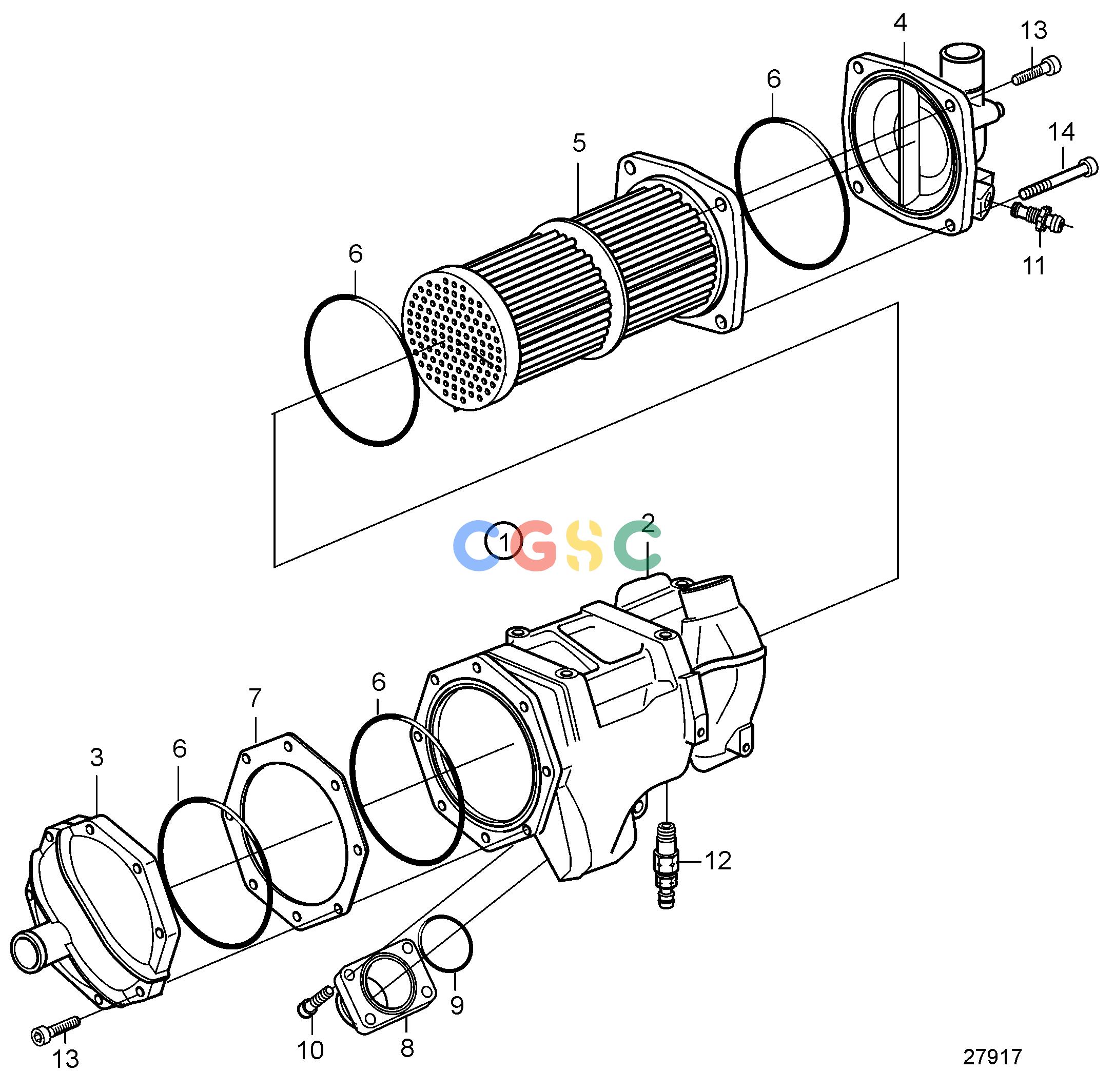

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemAfter Cooler, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21928775
|
[1] |
Charge air cooler
|
|
| 2. |
21262889
|
[1] |
Housing
|
|
| 3. |
21262899
|
[1] |
Cover
|
Outlet
|
| 4. |
21262896
|
[1] |
Cover
|
Inlet
|
| 5. |
21262900
|
[1] |
Charge air cooler
|
|
| 6. |
3838406
|
[4] |
O-ring
|
|
| 7. |
3838407
|
[1] |
Spacer
|
|
| 8. |
21262907
|
[1] |
Pipe
|
|
| 9. |
866690
|
[1] |
O-ring
|
|
| 10. |
3838501
|
[4] |
Screw
|
M6x25mm
|
| 11. |
3583822
|
[1] |
Draining nipple
|
|
| 12. |
974320
|
[1] |
Shut-off cock
|
|
| 13. |
959224
|
[11] |
Hex. socket screw
|
M8x35mm
|
| 14. |
959230
|
[1] |
Hex. socket screw
|
M8x65mm
|
