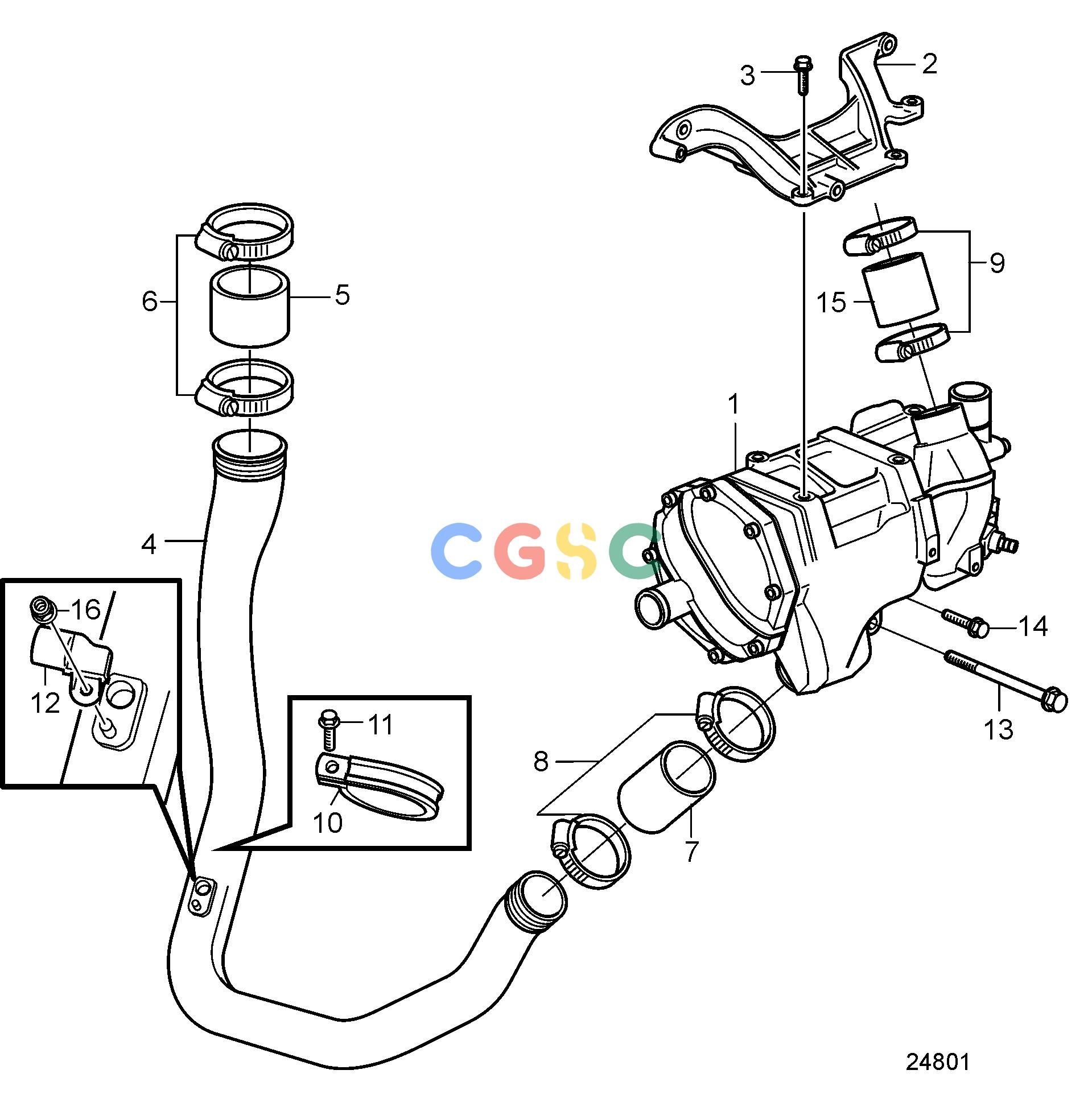

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemAftercooler with Installation PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
134 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7749500_044
|
|
Charge air cooler
|
|
| 2. |
21194424
|
[1] |
Bracket
|
|
| 3. |
946671
|
[4] |
Flange screw
|
M8x30mm
|
| 4. |
21501408
|
[1] |
Charge air pipe
|
|
| 5. |
30677765
|
[1] |
Hose
|
|
| 6. |
961673
|
[2] |
Hose clamp
|
|
| 7. |
847385
|
[1] |
Hose
|
|
| 8. |
21109868
|
[2] |
Hose clamp
|
|
| 9. |
961671
|
[2] |
Hose clamp
|
|
| 10. |
945734
|
[1] |
Clamp
|
|
| 11. |
946501
|
[1] |
Flange screw
|
M6x12mm
|
| 12. |
21385453
|
[1] |
Pressure sensor
|
|
| 13. |
973098
|
[1] |
Flange screw
|
M10x150mm
|
| 14. |
947760
|
[1] |
Flange screw
|
M8x40mm
|
| 15. |
466327
|
[1] |
Hose
|
|
| 16. |
965483
|
[1] |
Flange nut
|
|
