沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemCooling Water PipeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
355 次

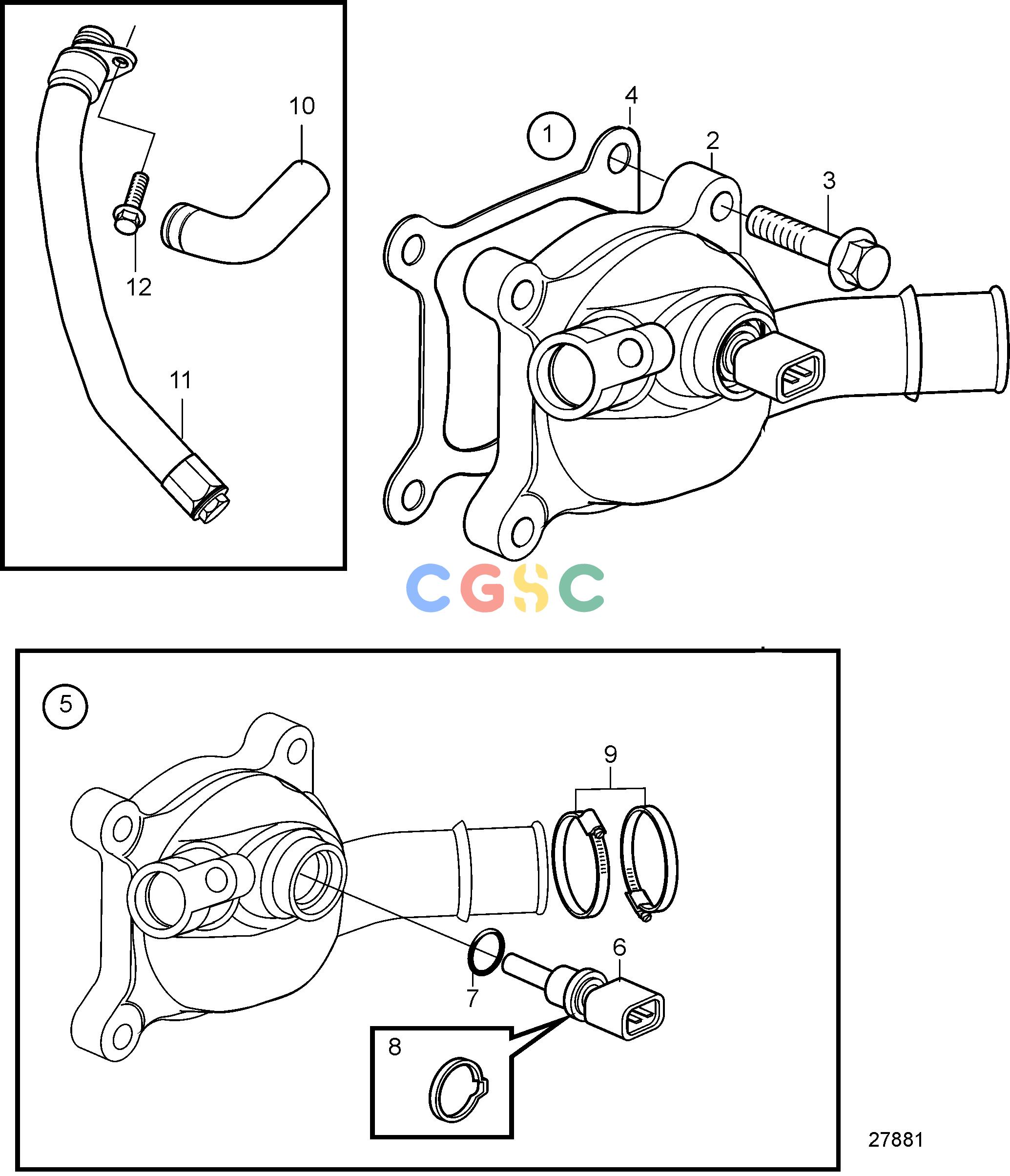

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21560216
|
[1] |
Kit
|
Replaced by 21678692
|
| 1. |
21678692
|
[1] |
Kit
|
|
| 2. |
21673916
|
[1] |
Water outlet pipe
|
|
| 3. |
986228
|
[1] |
Six point socket scr
|
|
| 4. |
21625080
|
[1] |
Gasket
|
|
| 5. |
21684636
|
[1] |
Small parts kit
|
|
| 6. |
|
|
|
Use kit 21684636
|
| 7. |
30713577
|
[1] |
O-ring
|
|
| 8. |
30713576
|
[1] |
Clip
|
|
| 9. |
961670
|
[2] |
Hose clamp
|
|
| 10. |
21166146
|
[1] |
Hose
|
|
| 11. |
21501494
|
[1] |
Hose
|
|
