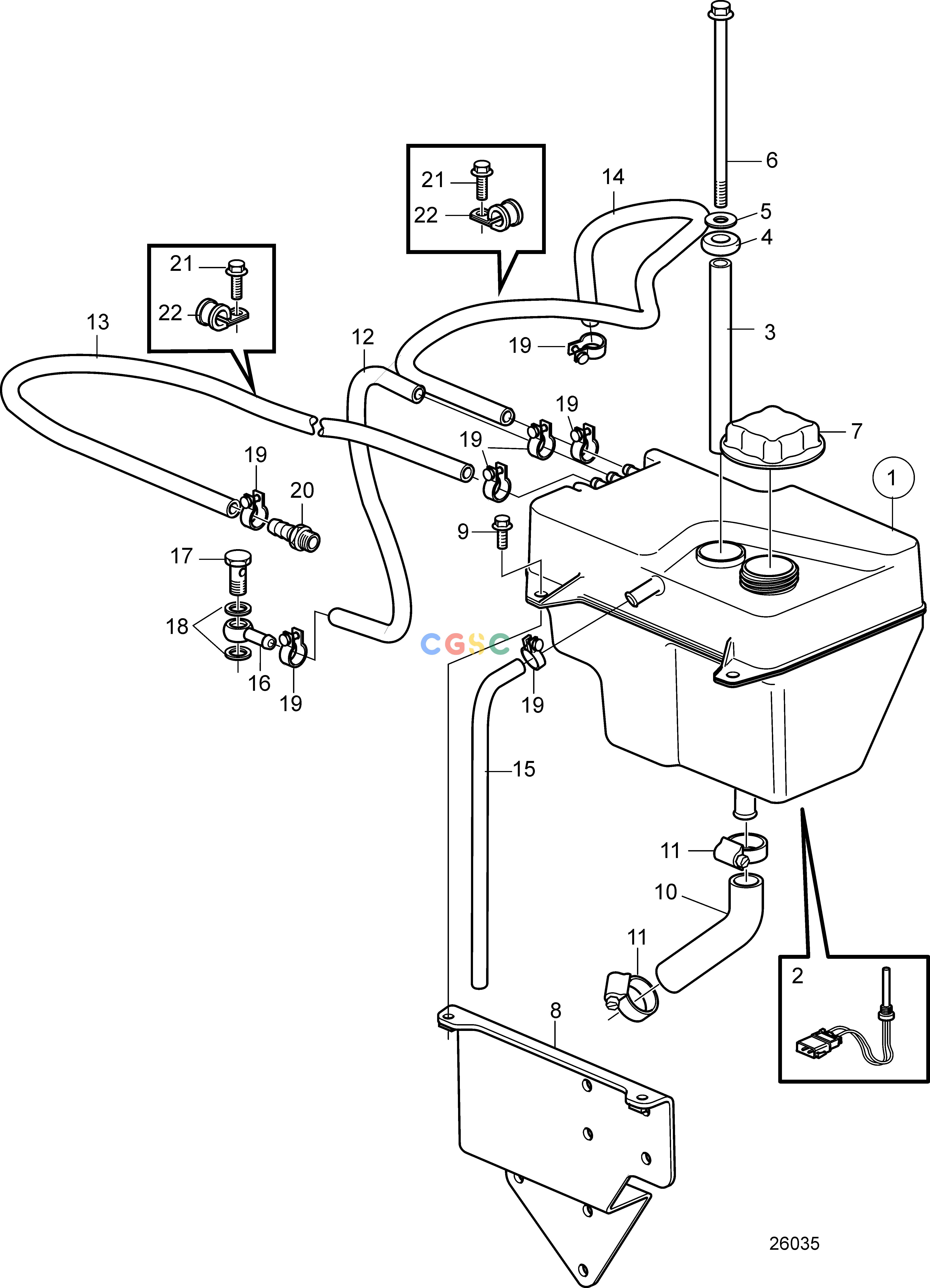

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemExpansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21666983
|
[1] |
Expansion tank
|
Replaced by 22356962
|
| 1. |
22356962
|
[1] |
Expansion tank
|
|
| 2. |
3547710
|
[1] |
Level guard
|
|
| 3. |
993301
|
[1] |
Spacer sleeve
|
|
| 4. |
3285120
|
[1] |
Spacer sleeve
|
|
| 5. |
976944
|
[1] |
Washer
|
|
| 6. |
968893
|
[1] |
Flange screw
|
M8x150mm
|
| 7. |
1674083
|
[1] |
Pressure cap
|
|
| 8. |
21142689
|
[1] |
Bracket
|
|
| 9. |
946173
|
[4] |
Flange screw
|
M8x20mm
|
| 10. |
21162074
|
[1] |
Hose
|
Coolant hose.
|
| 11. |
943472
|
[2] |
Hose clamp
|
|
| 12. |
942700
|
[1] |
Hose
|
L=260mm
|
| 13. |
942700
|
[1] |
Hose
|
L=680mm
|
| 14. |
942700
|
[1] |
Hose
|
L=680mm
|
| 15. |
|
|
|
|
| 16. |
858750
|
[1] |
Banjo nipple
|
|
| 17. |
969299
|
[1] |
Hollow screw
|
|
| 18. |
11994
|
[2] |
Gasket
|
|
| 19. |
945652
|
[6] |
Hose clamp
|
|
| 20. |
21332988
|
[1] |
Hose nipple
|
|
| 21. |
946501
|
[2] |
Flange screw
|
M6x12mm
|
| 22. |
980881
|
[2] |
Cable tie
|
|
