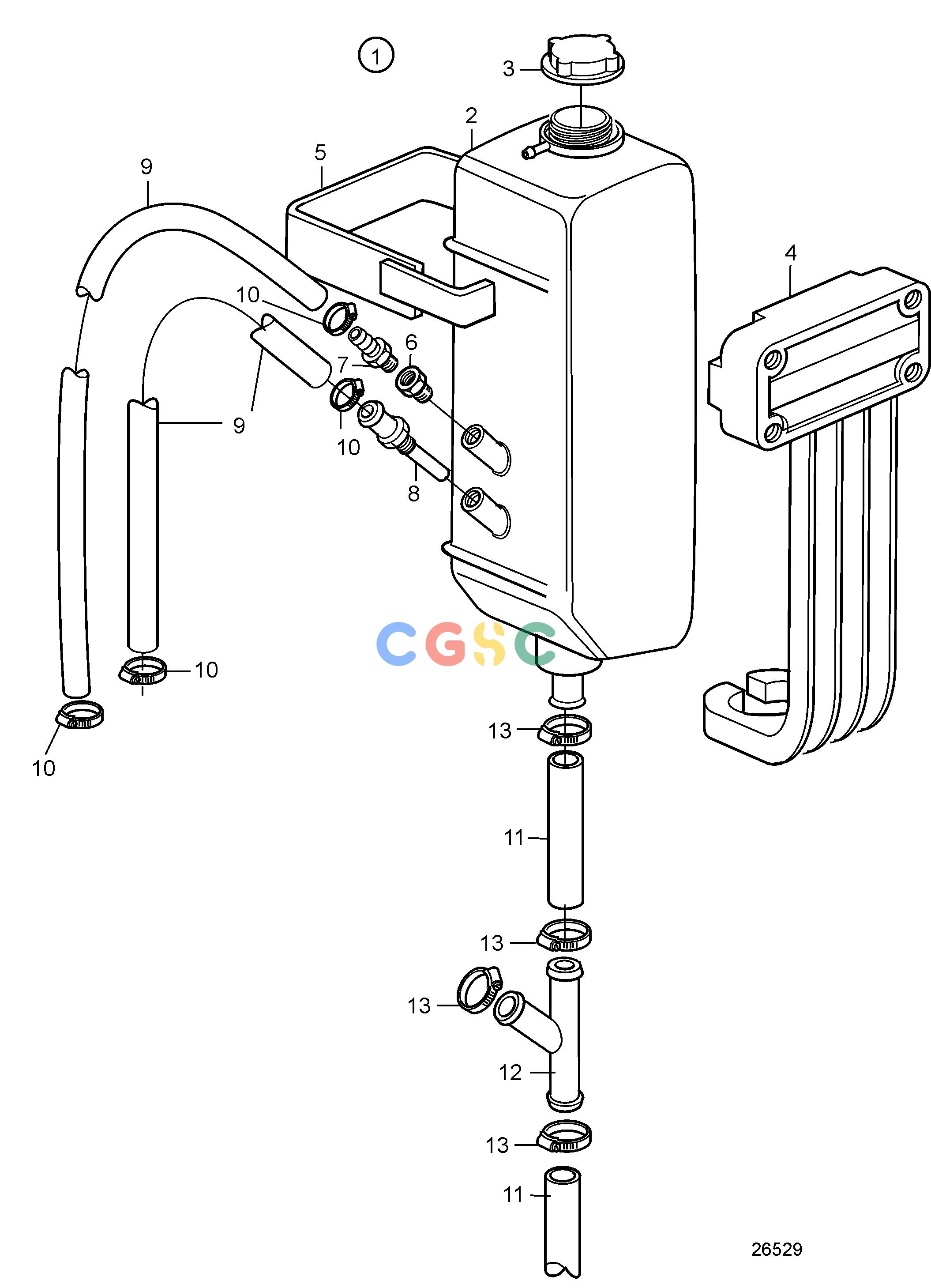

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-Cooling SystemExtra Expansion Tank KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
253 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21656191
|
[1] |
Kit
|
|
| 2. |
844062
|
[1] |
Expansion tank
|
|
| 3. |
860866
|
[1] |
Filler cap
|
|
| 4. |
843260
|
[1] |
Bracket
|
|
| 5. |
843266
|
[1] |
Clamp
|
|
| 6. |
847579
|
[1] |
Nipple
|
|
| 7. |
180003
|
[1] |
Nipple
|
|
| 8. |
843247
|
[1] |
Connecting pipe
|
|
| 9. |
942700
|
[1] |
Hose
|
L=6000mm
|
| 10. |
976576
|
[4] |
Hose clamp
|
|
| 11. |
952969
|
[1] |
Hose
|
L=6000mm
|
| 12. |
345845
|
[1] |
Distribution pipe
|
|
| 13. |
961665
|
[6] |
Hose clamp
|
|
