沃尔沃零件查询D3-110I-D D3-110I-E D3-110I-F D3-140I-E D3-140I-F D3-140A-D D3-140A-E D3-140A-F D3-150I-D D3-150I-E D3-150I-F D3-170I-D D3-170I-EngineCrank MechanismEPC Volvo Penta Parts catalog_沃尔沃遍达Volvo Penta_工程机械

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-EngineCrank MechanismEPC Volvo Penta Parts catalog

广数供应链运营团队, 14 02月, 2025，浏览： 602 次

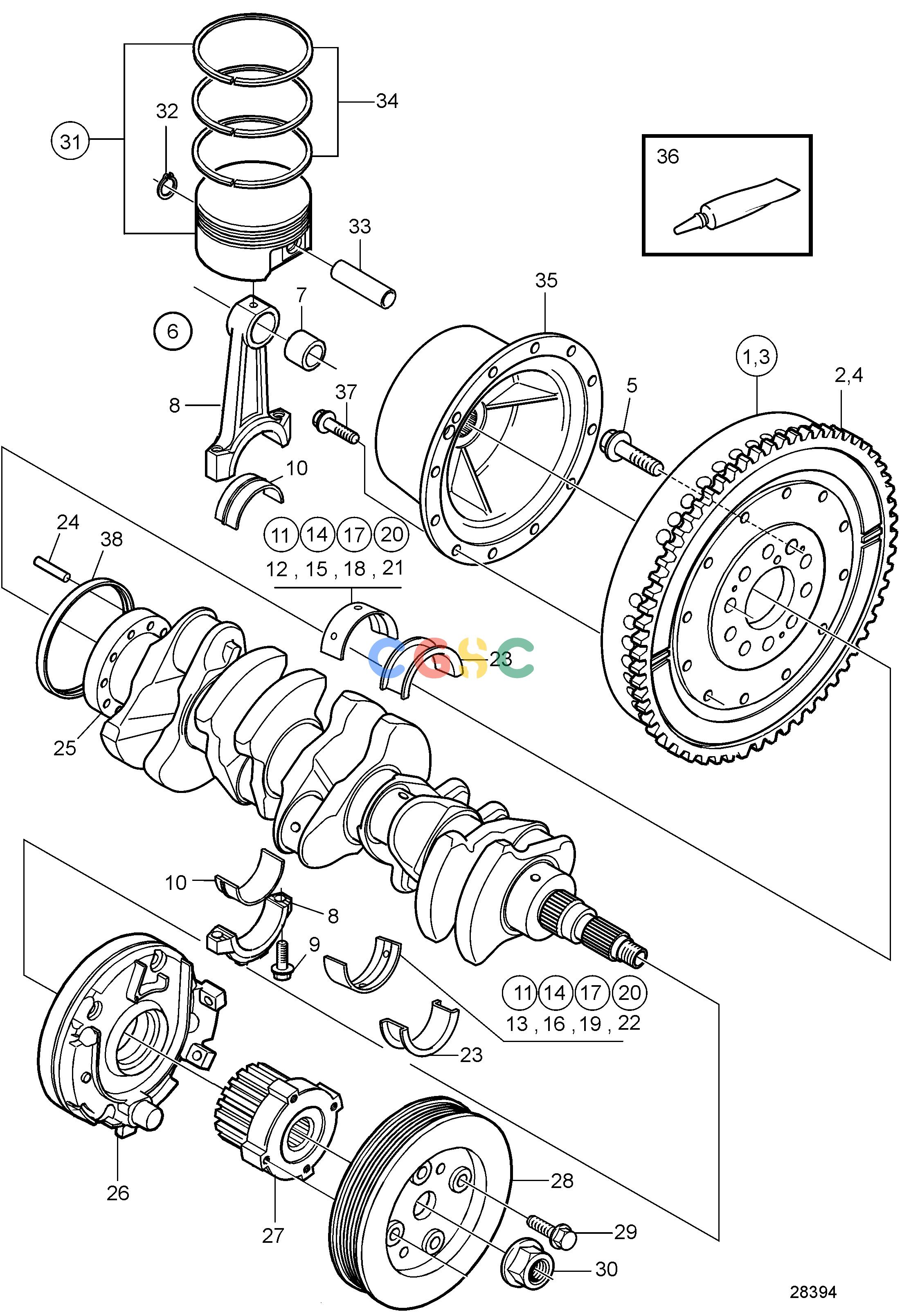

Pos.	Part No	Qty	Parts name	Comments
1.	21317215	[1]	Flywheel	Replaced by 21517500, SN-2003018761
2.	3818641	[1]	Gear ring	SN-2003018761
3.	21517500	[1]	Flywheel	SN2003018762-
4.	21517489	[1]	Gear ring	SN2003018762-
5.	9454743	[10]	Screw
6.	30777189	[5]	Connecting rod	SN2003015858-, Ø 30mm
7.
8.
9.	9497858	[2]	Screw
10.	31251996	[1]	Big-end bearing kit
11.	31251378	[5]	Main bearing	Without flange, red, See Workshop Manual
12.	31330321	[5]	Main bearing	Red, Without flange, upper, See workshop Manual
13.	30777951	[5]	Main bearing	Red, Without flange, lower, See workshop Manual
14.	31251379	[5]	Main bearing	Without flange, yellow, See Workshop Manual
15.	31330322	[5]	Main bearing	Yellow, Without flange, upper, See workshop Manual
16.	30777952	[5]	Main bearing	Yellow, Without flange, lower, See workshop Manual
17.	31251380	[5]	Main bearing	Without flange, blue, See Workshop Manual
18.	31330323	[5]	Main bearing	Blue, Without flange, upper, See workshop Manual
19.	30777953	[5]	Main bearing	Blue, Without flange, lower, See workshop Manual
20.	31251381	[5]	Main bearing	Without flange green, See Workshop Manual
21.	31330324	[5]	Main bearing	Green, Without flange, upper, See workshop Manual
22.	30777954	[5]	Main bearing	Green, Without flange, lower, See workshop Manual
23.	31251597	[1]	Thrust bearing	With flange, red, See Workshop Manual
23.	31251598	[1]	Thrust bearing	With flange, yellow, See Workshop Manual
23.	31251599	[1]	Thrust bearing	With flange, blue, See Workshop Manual
24.	973660	[1]	Spring pin
25.	9465781	[1]	Crankshaft
26.	7749500_020		Oil pump
27.	1275366	[1]	Pulley
28.	31258122	[1]	Oscillation damper
29.	975101	[4]	Flange screw	M10x30mm
30.	3531111	[1]	Nut
31.	31251737	[1]	Piston	Class C, SN-2003015855
31.	31251738	[1]	Piston	Class D, SN-2003015855
31.	31251739	[1]	Piston	Class E, SN-2003015855
31.	31272195	[1]	Piston kit	Class C, SN2003015858-, Piston pin diameter 30mm
31.	31272196	[1]	Piston kit	Class D, SN2003015858-, Piston pin diameter 30mm
31.	31272197	[1]	Piston kit	Class E, SN2003015858-, Piston pin diameter 30mm
32.	30777225	[1]	Lock ring
33.
34.	30750678	[1]	Piston ring kit
35.	21373176	[1]	Flexible coupling
36.	598034	[1]	Grease
37.	946671	[6]	Flange screw
38.	9458178	[1]	Sealing ring
