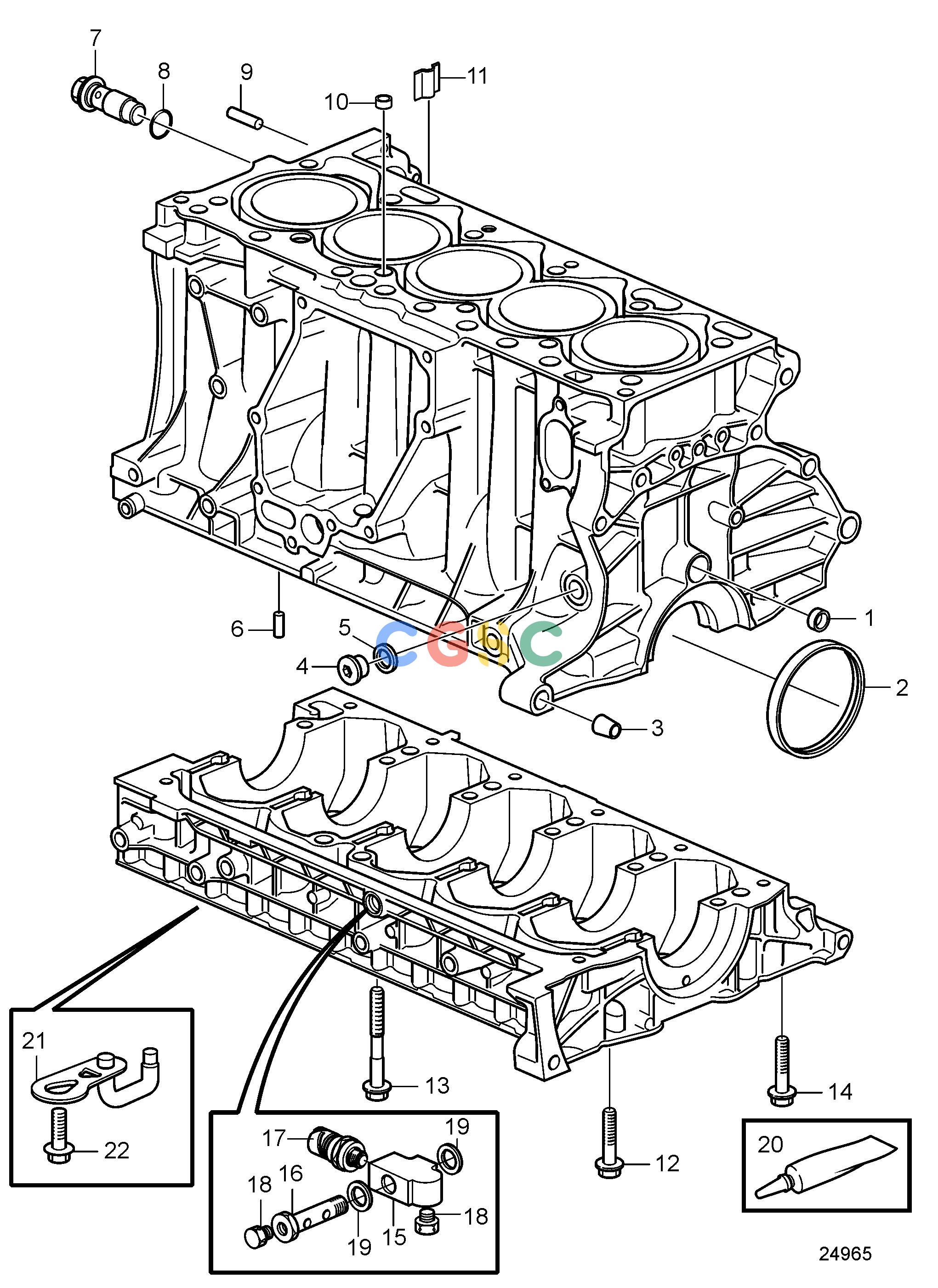

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-EngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8687868
|
[1] |
Cap plug
|
|
| 2. |
9458178
|
[1] |
Sealing ring
|
|
| 3. |
1256394
|
[2] |
Guide sleeve
|
|
| 4. |
30713237
|
[1] |
Plug
|
|
| 5. |
11996
|
[1] |
Gasket
|
|
| 6. |
1383730
|
[5] |
Locating pin
|
|
| 7. |
30750943
|
[1] |
Piston cooling valve
|
|
| 8. |
11998
|
[1] |
Gasket
|
|
| 9. |
950542
|
[2] |
Pin
|
|
| 10. |
1366129
|
[2] |
Guide sleeve
|
|
| 11. |
8631501
|
[1] |
Guide rail
|
|
| 12. |
987736
|
[5] |
Flange screw
|
M7x70mm, SN334284-
|
| 13. |
8631499
|
[12] |
Flange screw
|
M10x110mm, SN-334281
|
| 13. |
31368044
|
[12] |
Screw
|
M10x110mm, SN334282-
|
| 14. |
987962
|
[12] |
Flange screw
|
M8x70mm
|
| 15. |
21379273
|
[1] |
Connection block
|
|
| 16. |
21449352
|
[1] |
Adapter
|
|
| 17. |
21634021
|
[1] |
Pressure sensor
|
|
| 18. |
981749
|
[2] |
Plug
|
|
| 19. |
969011
|
[2] |
Gasket
|
|
| 20. |
1161059
|
[1] |
Sealing compound
|
|
| 21. |
30750790
|
[5] |
Piston cooling jet
|
|
| 22. |
975880
|
[5] |
Flange screw
|
|
