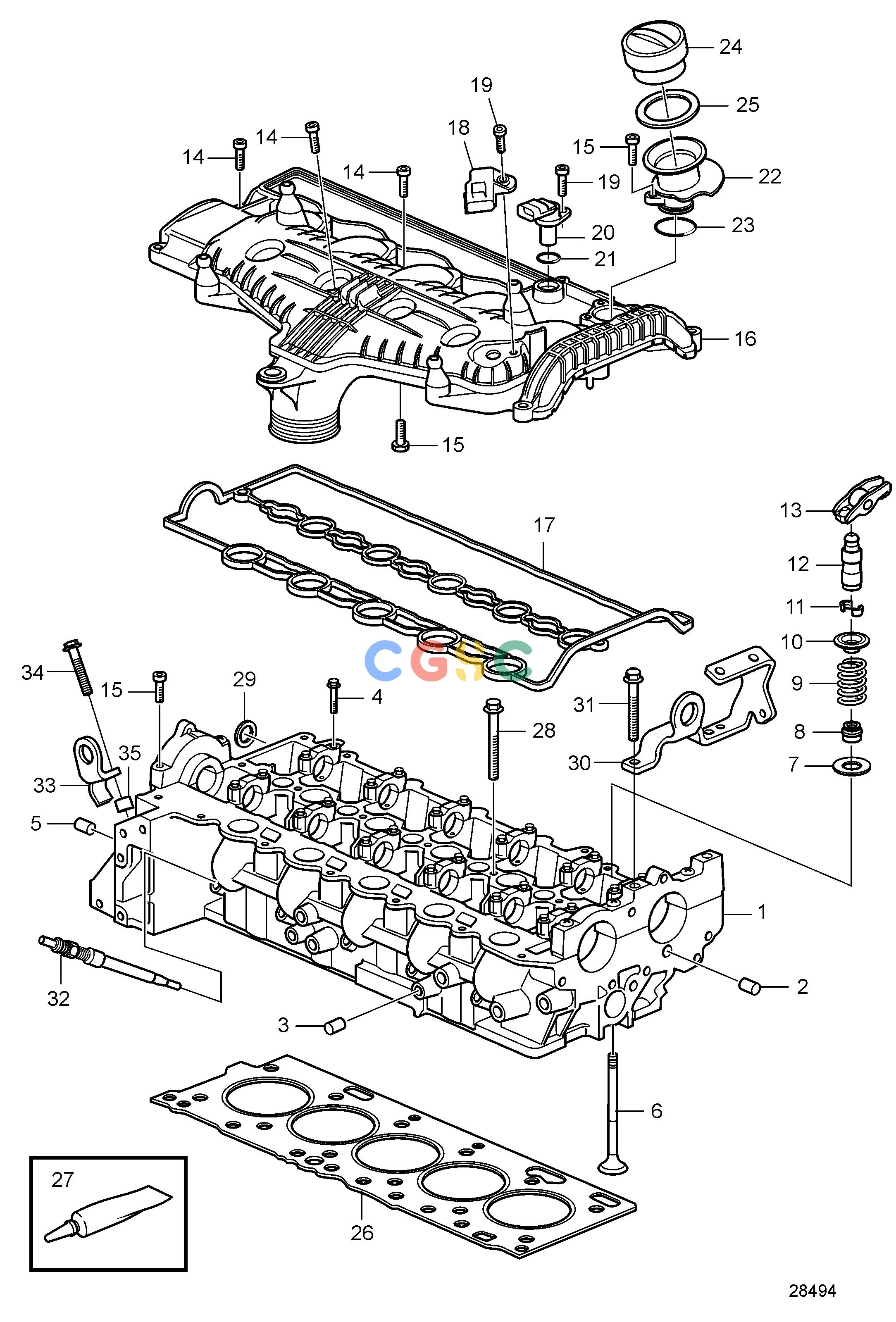

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-EngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801383
|
[1] |
Cylinder head
|
|
| 1. |
36002661
|
[1] |
Cylinder head
|
|
| 1. |
3801663
|
[1] |
Cylinder head, exch, exch
|
|
| 1. |
36010025
|
[1] |
Cylinder head
|
|
| 1. |
3801745
|
[1] |
Cylinder head, exch
|
|
| 1. |
31460230
|
[1] |
Cylinder head
|
|
| 2. |
946780
|
[1] |
Cap plug
|
|
| 3. |
946779
|
[2] |
Cap plug
|
|
| 4. |
982761
|
[24] |
Flange screw
|
M6x35mm
|
| 5. |
981713
|
[3] |
Plug
|
|
| 6. |
8631650
|
[10] |
Inlet valve
|
|
| 6. |
8631651
|
[10] |
Exhaust valve
|
|
| 7. |
8631655
|
[20] |
Valve spring washer, lower
|
|
| 8. |
8631652
|
[20] |
Valve stem seal
|
|
| 9. |
31258132
|
[20] |
Valve spring
|
|
| 10. |
8631654
|
[20] |
Valve spring washer, upper
|
|
| 11. |
9454613
|
[40] |
Valve collet
|
|
| 12. |
31251885
|
[20] |
Pivot
|
|
| 13. |
8670045
|
[20] |
Tappet
|
|
| 14. |
986322
|
[5] |
Six point socket scr
|
M7x50mm
|
| 15. |
987349
|
[12] |
Six point socket scr
|
|
| 16. |
31286262
|
[1] |
Valve cover
|
Replaced by 31330239
|
| 16. |
31330239
|
[1] |
Valve cover
|
Replaced by 31338169
|
| 16. |
31338169
|
[1] |
Valve cover
|
Replaced by 31430316
|
| 16. |
31430316
|
[1] |
Valve cover
|
|
| 17. |
30777600
|
[1] |
Gasket
|
Replaced by 31430317
|
| 17. |
31430317
|
[1] |
Gasket
|
|
| 18. |
31216308
|
[1] |
Pressure sensor
|
|
| 19. |
986072
|
[2] |
Six point socket scr
|
M6x25mm
|
| 20. |
8658726
|
[1] |
Sensor
|
|
| 21. |
30756062
|
[1] |
O-ring
|
|
| 22. |
30777537
|
[1] |
Oil filler pipe
|
|
| 23. |
30757159
|
[1] |
O-ring
|
|
| 24. |
30677517
|
[1] |
Oil filler cap
|
|
| 25. |
30677740
|
[1] |
O-ring
|
|
| 26. |
31336211
|
[1] |
Cylinder head gasket
|
Gasket with 1 hole., Class A
|
| 26. |
31336212
|
[1] |
Cylinder head gasket
|
Gasket with 2 hole., Class B
|
| 26. |
31336213
|
[1] |
Cylinder head gasket
|
Gasket with 3 hole., Class C
|
| 26. |
31336214
|
[1] |
Cylinder head gasket
|
Gasket with 4 hole., Class D
|
| 26. |
31336215
|
[1] |
Cylinder head gasket
|
Gasket with 5 hole., Class E
|
| 27. |
1161059
|
[1] |
Sealing compound
|
|
| 28. |
30777636
|
[12] |
Flange screw
|
M12x197mm
|
| 29. |
8631561
|
[1] |
Sealing ring
|
|
| 30. |
21377354
|
[1] |
Lifting eye
|
|
| 31. |
965181
|
[2] |
Flange screw
|
M8x70mm
|
| 32. |
8631607
|
[5] |
Glow plug
|
12V, SOLAS
|
| 33. |
21146441
|
[1] |
Lifting eye
|
|
| 34. |
990811
|
[1] |
Flange screw
|
M12x50mm
|
| 35. |
1678297
|
[1] |
Spacer sleeve
|
|
