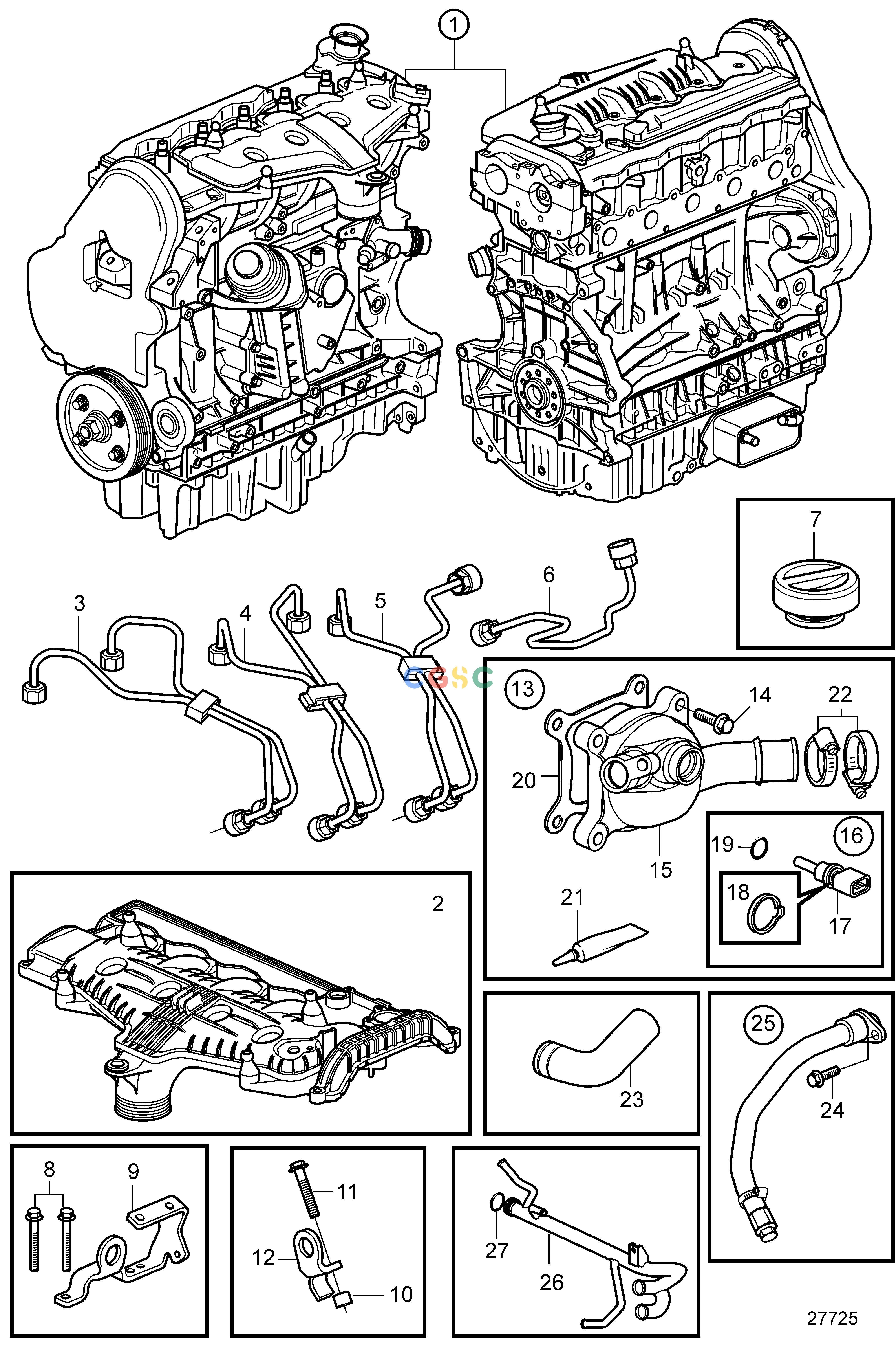

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-EngineLong Block, Exchange SN-2003018537EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801382
|
[1] |
Longblock engine
|
|
| 2. |
31338169
|
[1] |
Valve cover
|
|
| 3. |
31251172
|
[1] |
Delivery pipe
|
|
| 4. |
31251173
|
[1] |
Delivery pipe
|
|
| 5. |
31251174
|
[1] |
Delivery pipe
|
|
| 6. |
31251175
|
[1] |
Delivery pipe
|
|
| 7. |
3819129
|
[1] |
Oil filler cap
|
|
| 8. |
965181
|
[2] |
Flange screw
|
|
| 9. |
21806510
|
[1] |
Lifting eye
|
|
| 10. |
1678297
|
[1] |
Spacer sleeve
|
|
| 11. |
990811
|
[1] |
Flange screw
|
|
| 12. |
21146441
|
[1] |
Lifting eye
|
|
| 13. |
21678692
|
[1] |
Kit
|
Needed when ordering longblock
|
| 14. |
986228
|
[4] |
Six point socket scr
|
Needed when ordering longblock
|
| 15. |
21673916
|
[1] |
Water outlet pipe
|
Needed when ordering longblock
|
| 16. |
21664969
|
[1] |
Small parts kit
|
Needed when ordering longblock
|
| 17. |
|
|
|
Needed when ordering longblock
|
| 18. |
30713576
|
[1] |
Clip
|
Needed when ordering longblock
|
| 19. |
30713577
|
[1] |
O-ring
|
Needed when ordering longblock
|
| 20. |
21625080
|
[1] |
Gasket
|
Needed when ordering longblock
|
| 21. |
1161059
|
[1] |
Sealing compound
|
Needed when ordering longblock
|
| 22. |
961670
|
[2] |
Hose clamp
|
Needed when ordering longblock
|
| 23. |
21166146
|
[1] |
Hose
|
Needed when ordering longblock
|
| 24. |
946544
|
[1] |
Flange screw
|
Needed when ordering longblock
|
| 25. |
21462783
|
[1] |
Hose
|
Needed when ordering longblock, SN-2003018457
|
| 26. |
21591184
|
[1] |
Inlet pipe
|
Needed when ordering longblock
|
| 27. |
976045
|
[1] |
O-ring
|
Needed when ordering longblock
|
