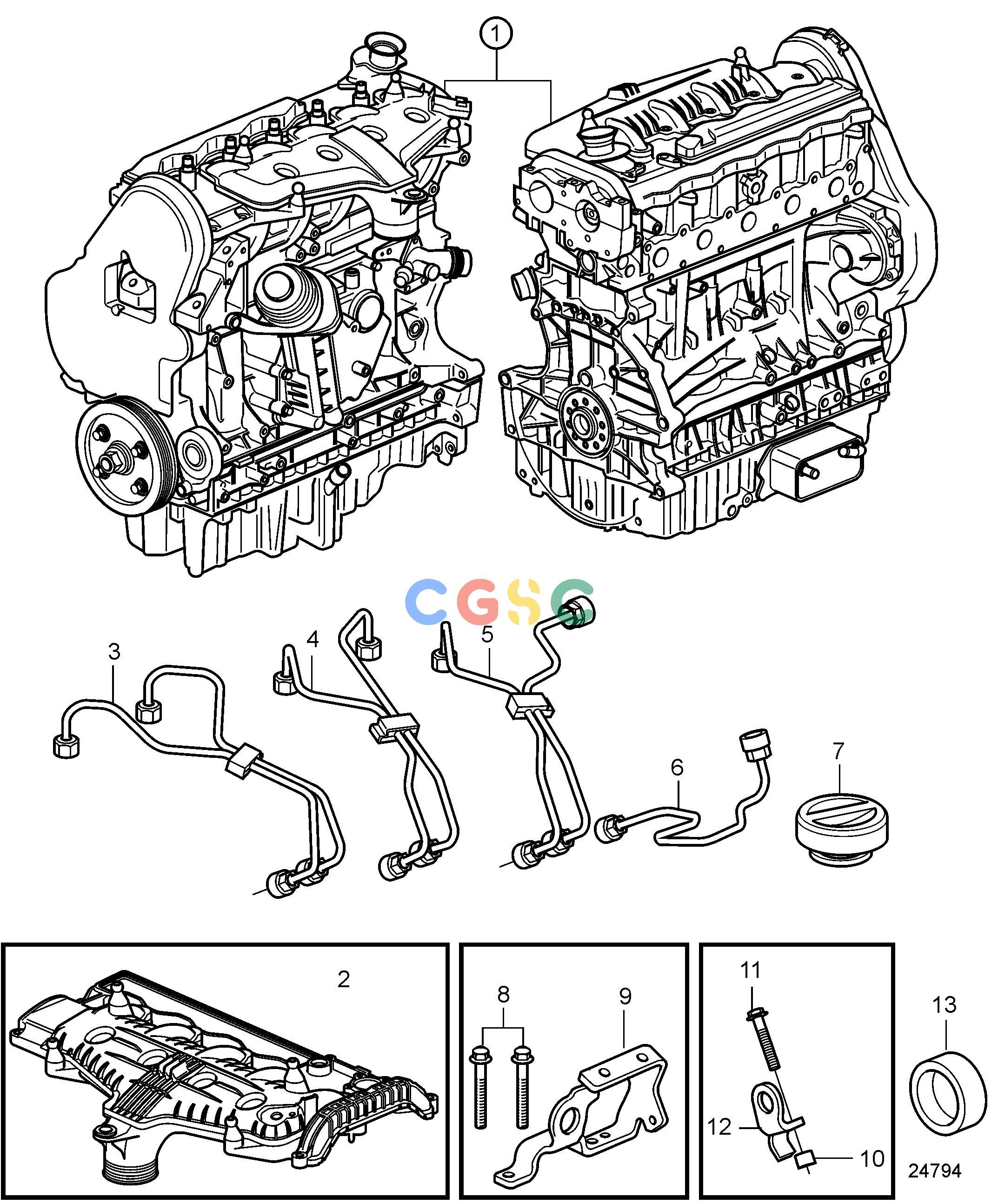

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-EngineLong Block, Exchange SN2003018538-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801382
|
[1] |
Longblock engine
|
D3-D,E
|
| 1. |
3801489
|
[1] |
Longblock
|
D3-F
|
| 2. |
31338169
|
[1] |
Valve cover
|
|
| 3. |
31251172
|
[1] |
Delivery pipe
|
|
| 4. |
31251173
|
[1] |
Delivery pipe
|
|
| 5. |
31251174
|
[1] |
Delivery pipe
|
|
| 6. |
31251175
|
[1] |
Delivery pipe
|
|
| 7. |
3819129
|
[1] |
Oil filler cap
|
|
| 8. |
965181
|
[2] |
Flange screw
|
|
| 9. |
21806510
|
[1] |
Lifting eye
|
|
| 10. |
1678297
|
[1] |
Spacer sleeve
|
|
| 11. |
990811
|
[1] |
Flange screw
|
|
| 12. |
21146441
|
[1] |
Lifting eye
|
|
| 13. |
955083
|
[1] |
Cap plug
|
|
