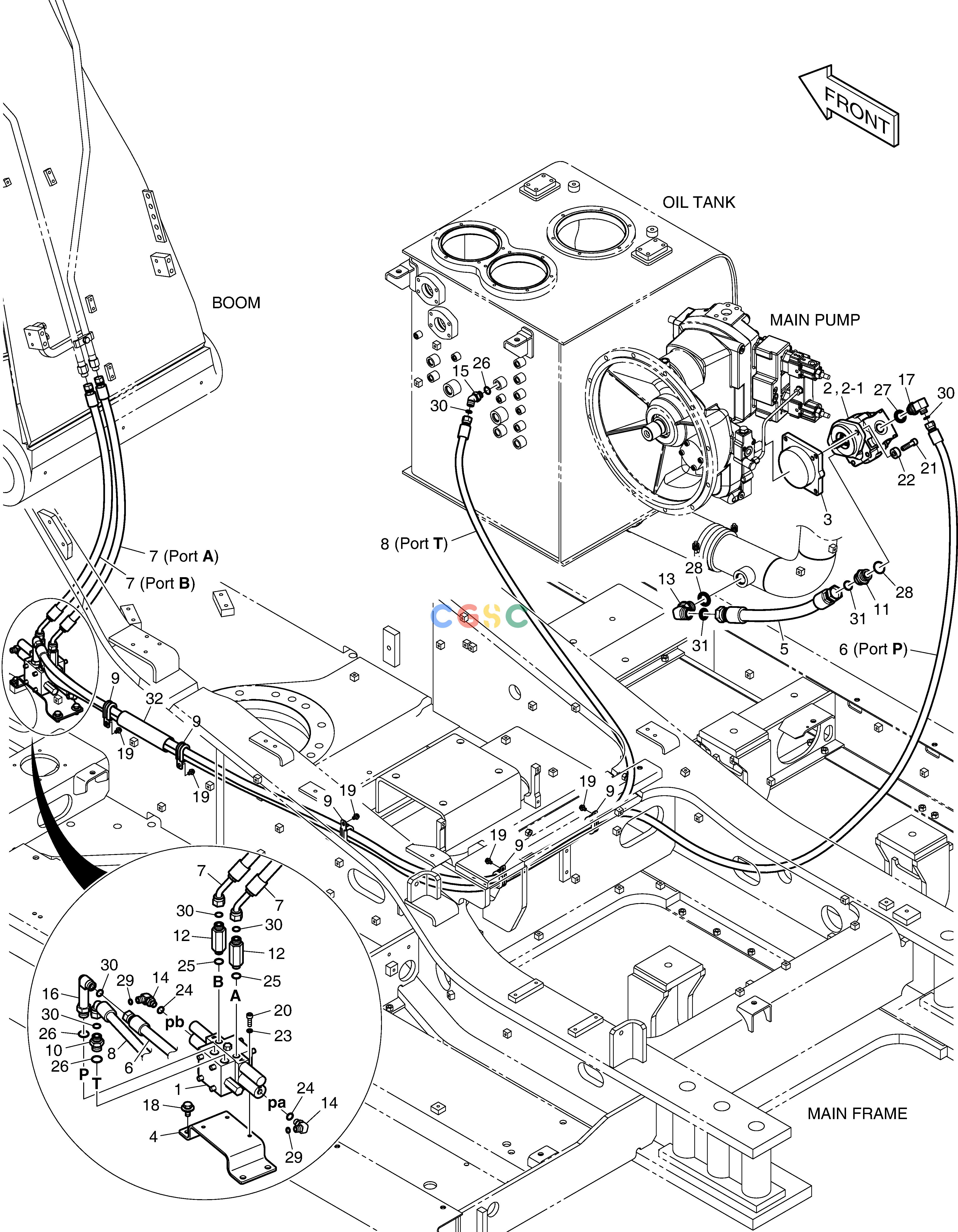

斗山零件查询MAIN PIPING - ROTATING DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08493
|
[-] |
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 10. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 11. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 12. |
DS2232108
|
[2] |
ADAPTER
|
|
| 13. |
2181-2815D1
|
[1] |
ELBOW
|
|
| 14. |
2181-2815D4
|
[2] |
ELBOW
|
|
| 15. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 16. |
DS2304086
|
[1] |
ELBOW
|
|
| 17. |
DS2304127
|
[1] |
|
|
| 18. |
DS0025017
|
[4] |
BOLT
|
|
| 19. |
K1001029
|
[5] |
BOLT
|
|
| 2. |
K1007973
|
[1] |
PUMP;GEAR
|
|
| 2-1. |
K9001988
|
[1] |
SEAL KIT;GEAR PUMP
|
|
| 20. |
S2209066
|
[3] |
BOLT
|
|
| 21. |
S2215566
|
[2] |
BOLT;SOCKET
|
|
| 22. |
K1007011
|
[2] |
SPACER
|
|
| 23. |
S5110503
|
[3] |
WASHER
|
|
| 24. |
S8000111
|
[2] |
O-RING
|
|
| 25. |
S8000141
|
[2] |
O-RING
|
|
| 26. |
S8000181
|
[3] |
O-RING
|
|
| 27. |
S8000241
|
[1] |
O-RING
|
|
| 28. |
S8000291
|
[2] |
O-RING
|
|
| 29. |
S8030041
|
[2] |
O-RING
|
|
| 3. |
K1007517
|
[1] |
POWER TAKE OFF
|
|
| 30. |
S8030081
|
[6] |
O-RING
|
|
| 31. |
S8030161
|
[2] |
O-RING
|
|
| 32. |
111004-00019
|
[1] |
|
|
| 4. |
K1000352A
|
[1] |
BRACKET
|
|
| 5. |
DS20111563
|
[1] |
|
|
| 6. |
DS20111687
|
[1] |
|
|
| 7. |
DS20121132
|
[2] |
|
|
| 8. |
DS20131979
|
[1] |
|
|
| 9. |
124-00209D4
|
[5] |
CLIP
|
|
