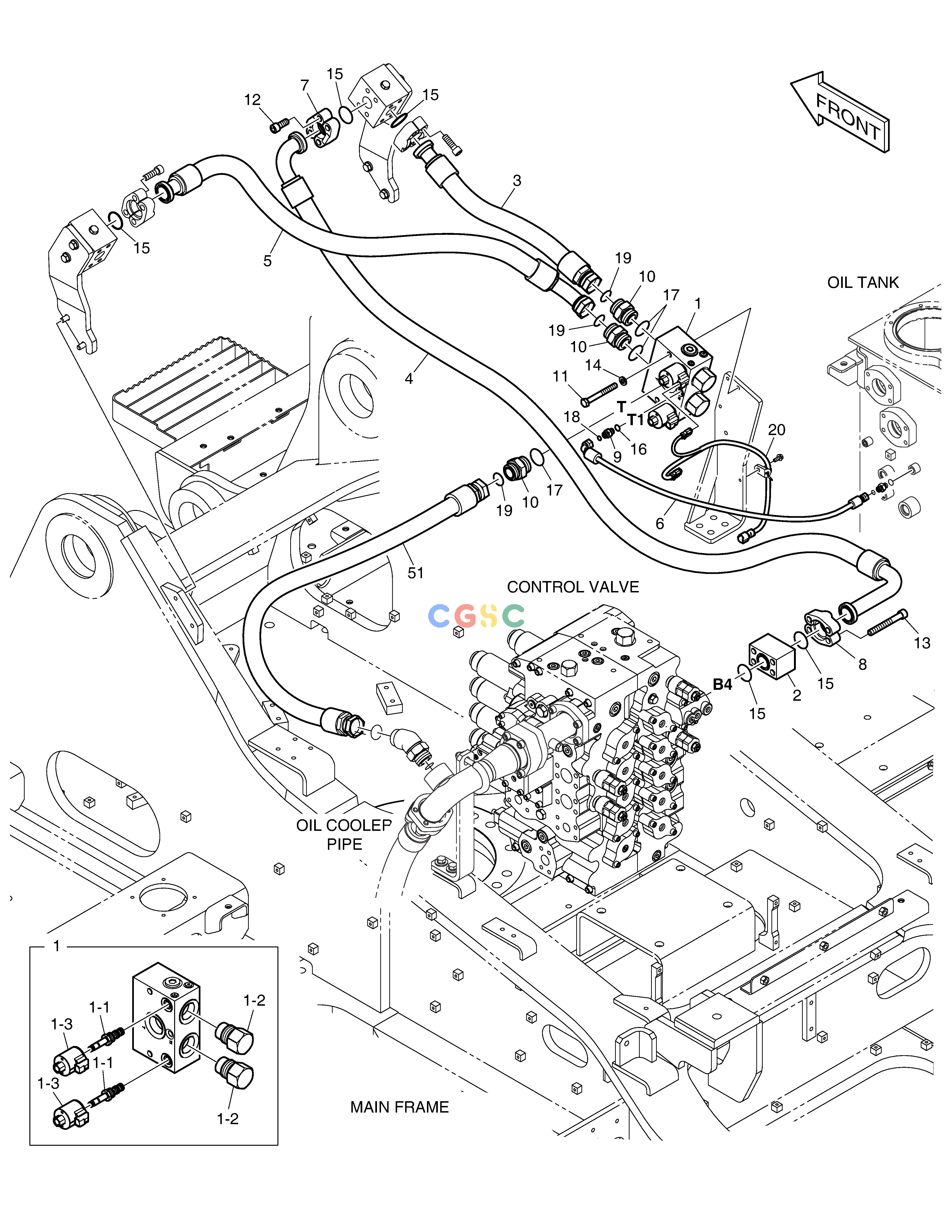

斗山零件查询MAIN PIPING - TWO WAY DX420LC-5(S/N:10001~10010) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08490
|
[-] |
|
|
| 1. |
410127-00046A
|
[1] |
|
|
| 1. |
410127-00046B
|
[1] |
|
|
| 1-1. |
410116-00416
|
[2] |
|
|
| 1-1. |
410116-00694
|
[2] |
|
|
| 1-2. |
410116-00417
|
[2] |
|
|
| 1-2. |
410116-00695
|
[2] |
|
|
| 1-3. |
300715-00032
|
[2] |
|
|
| 1-3. |
300715-00032
|
[2] |
|
|
| 10. |
2181-4133D35
|
[3] |
ADAPTER
|
|
| 11. |
S0561666
|
[2] |
BOLT
|
|
| 12. |
S2218566
|
[4] |
BOLT;SOCKET
|
|
| 13. |
S2219866
|
[4] |
BOLT
|
|
| 14. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 15. |
2180-1026D23
|
[5] |
O-RING
|
|
| 16. |
S8000111
|
[1] |
O-RING
|
|
| 17. |
S8000381
|
[3] |
O-RING
|
|
| 18. |
S8030041
|
[1] |
O-RING
|
|
| 19. |
S8030201
|
[3] |
|
|
| 2. |
K1002748
|
[1] |
BLOCK;SPACER
|
|
| 20. |
310207-00857
|
[1] |
|
|
| 3. |
DS2016284
|
[1] |
|
|
| 4. |
DS2045719
|
[1] |
|
|
| 5. |
DS2082064
|
[1] |
|
|
| 51. |
DS20111267
|
[1] |
|
|
| 6. |
DS2121137
|
[1] |
|
|
| 7. |
2181-9086
|
[2] |
FLANGE;SPLIT
|
|
| 8. |
K1014858
|
[2] |
FLANGE;SPLIT
|
|
| 9. |
2181-4133D1
|
[1] |
ADAPTER
|
|
