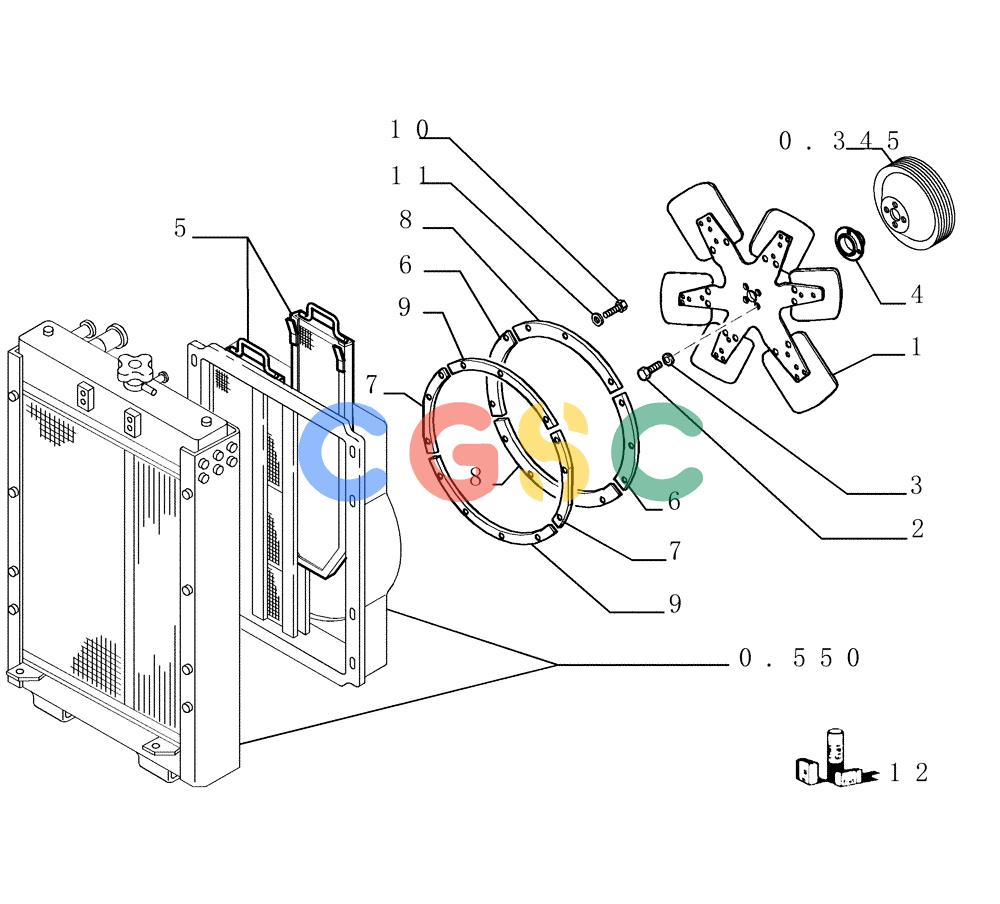

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.177[01]) - FAN - OPTIONAL CODE 76080609 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
656 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071371 | [1] | FAN,6 Blades, 762mm OD | LEC |
| 2. | 11108031 | [4] | BOLT,Hex, M10 x 90mm, Cl 10.9 | LEC Superseded by part number: 86508620 |
| 3. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 4. | 76072183 | [1] | SPACER | TOR Superseded by part number: 75286621 |
| 5. | 76069118 | [1] | FILTER SCREEN | LEC- LEFT |
| 5. | 76069119 | [1] | FILTER SCREEN | LEC- RIGHT |
| 6. | 76072152 | [2] | SEALING STRIP | LEC |
| 7. | 76072153 | [2] | GUARD | LEC |
| 8. | 76072154 | [2] | SEALING STRIP | LEC |
| 9. | 76072155 | [2] | GUARD | LEC |
| 10. | 16043431 | [16] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 11. | 12645031 | [16] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 12. | 76072166 | [1] | KIT | LEC- GUARDS Superseded by part number: 76072155, 76072152, 76072154, 76072153 |
