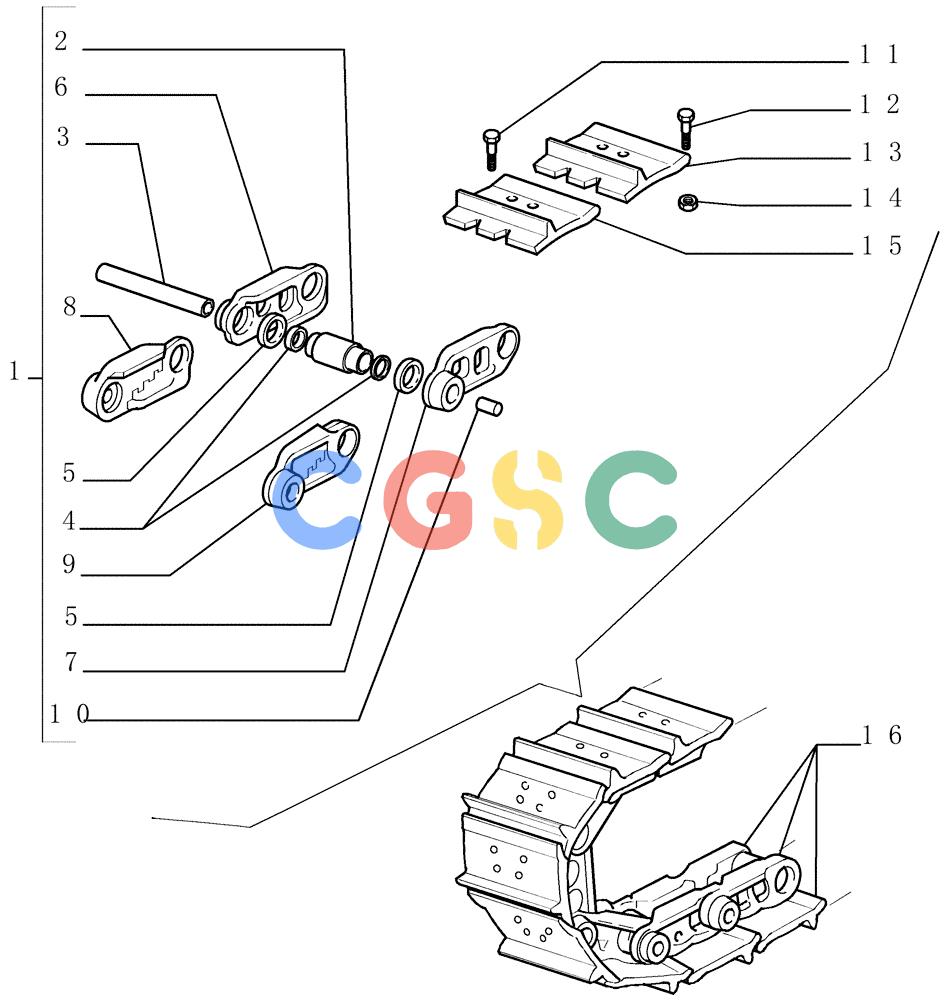

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.349[03]) - SALT CHAIN - SHOES (L=610 MM) XLT - OPTIONAL CODE 784255031 - VERSION (02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092276 | [2] | CHAIN | LEC- ASSY |
| 2. | 76040934 | [45] | BUSHING | LEC |
| 3. | 76040933 | [45] | PIN | LEC |
| 4. | 76040938 | [90] | SPACER | LEC |
| 5. | 76040937 | [90] | OIL SEAL | LEC |
| 6. | 76092279 | [44] | TRACK LINK | LEC- RIGHT Superseded by part number: 76040928 |
| 7. | 76092280 | [44] | TRACK LINK | LEC- LEFT Superseded by part number: 76040929 |
| 8. | 76092149 | [1] | CONNECTING LINK | LEC- RIGHT MASTER Superseded by part number: 76040931 |
| 9. | 76092150 | [1] | CONNECTING LINK | LEC- LEFT Superseded by part number: 76040932 |
| 10. | 76040943 | [45] | PLUG | LEC Superseded by part number: 79082287 |
| 11. | 76040927 | [4] | BOLT,Hex, 3/4" - 16 | LEC |
| 12. | 76040849 | [176] | STEP BOLT,Hex, 3/4" - 16 x 2-3/8" | LEC |
| 13. | 76092303 | [44] | TRACK SHOE | LEC- (1 GROUSER) -610mm |
| 14. | 76040850 | [176] | SQUARE NUT | LEC Superseded by part number: 87582723 |
| 15. | 76092304 | [1] | TRACK SHOE | LEC- (1 GROUSER) MASTER |
| 16. | 76092300 | [2] | TRACK ASSY | LEC-610mm- ASSY WITH SHOES |
