纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.350[01]) - SALT CHAIN - SHOES 30" - OPTIONAL CODE 784301031 - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
827 次

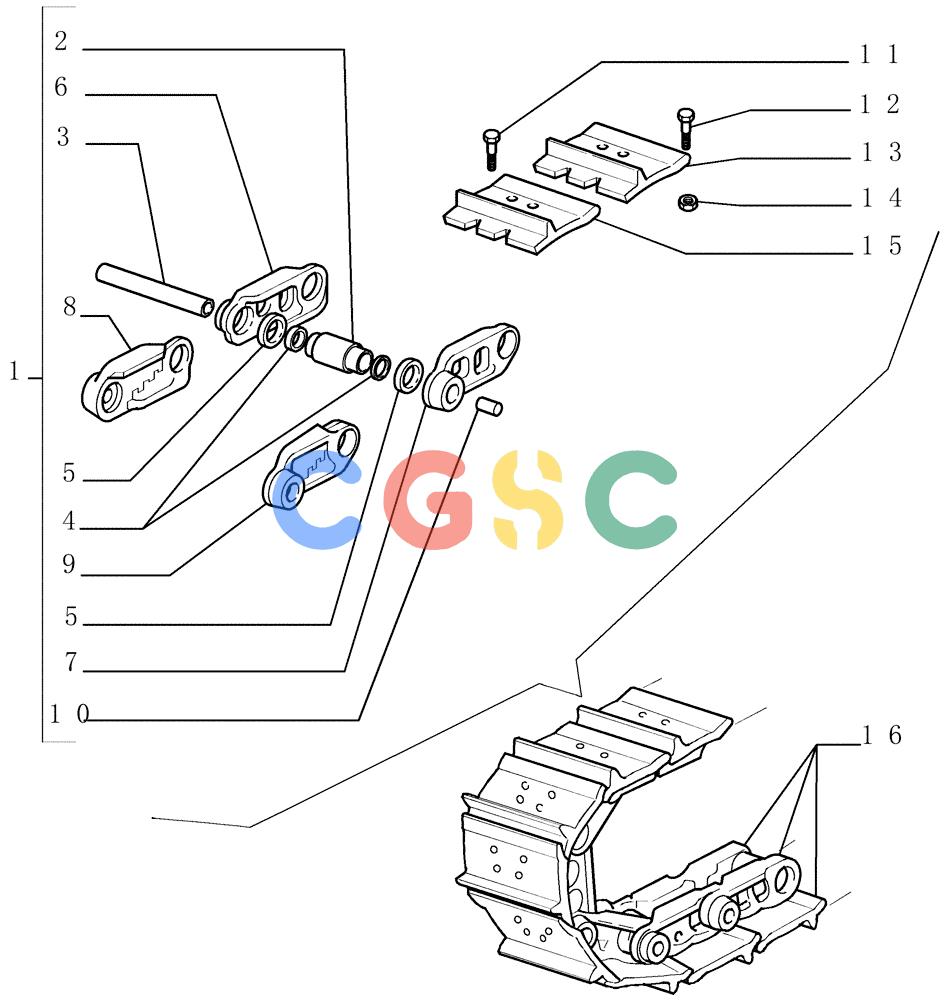

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092276 | [2] | CHAIN | LEC- ASSY |
| 2. | 76040934 | [45] | BUSHING | LEC |
| 3. | 76040933 | [45] | PIN | LEC |
| 4. | 76040938 | [90] | SPACER | LEC |
| 5. | 76040937 | [90] | OIL SEAL | LEC |
| 6. | 76092279 | [44] | TRACK LINK | LEC- RIGHT Superseded by part number: 76040928 |
| 7. | 76092280 | [44] | TRACK LINK | LEC- LEFT Superseded by part number: 76040929 |
| 8. | 76092149 | [1] | CONNECTING LINK | LEC- RIGHT MASTER Superseded by part number: 76040931 |
| 9. | 76092150 | [1] | CONNECTING LINK | LEC- LEFT Superseded by part number: 76040932 |
| 10. | 76040943 | [45] | PLUG | LEC Superseded by part number: 79082287 |
| 11. | 76040927 | [4] | BOLT,Hex, 3/4" - 16 | LEC |
| 12. | 76040849 | [176] | STEP BOLT,Hex, 3/4" - 16 x 2-3/8" | LEC |
| 13. | 76092345 | [44] | TRACK SHOE | LEC30" (1 GROUSER) STD Superseded by part number: 76080651 |
| 14. | 76040850 | [176] | SQUARE NUT | LEC Superseded by part number: 87582723 |
| 15. | 76092346 | [1] | TRACK SHOE | LEC- (1 GROUSER) Superseded by part number: 76080652 |
| 16. | 76092343 | [2] | TRACK ASSY | SM30"- ASSY WITH SHOES |
