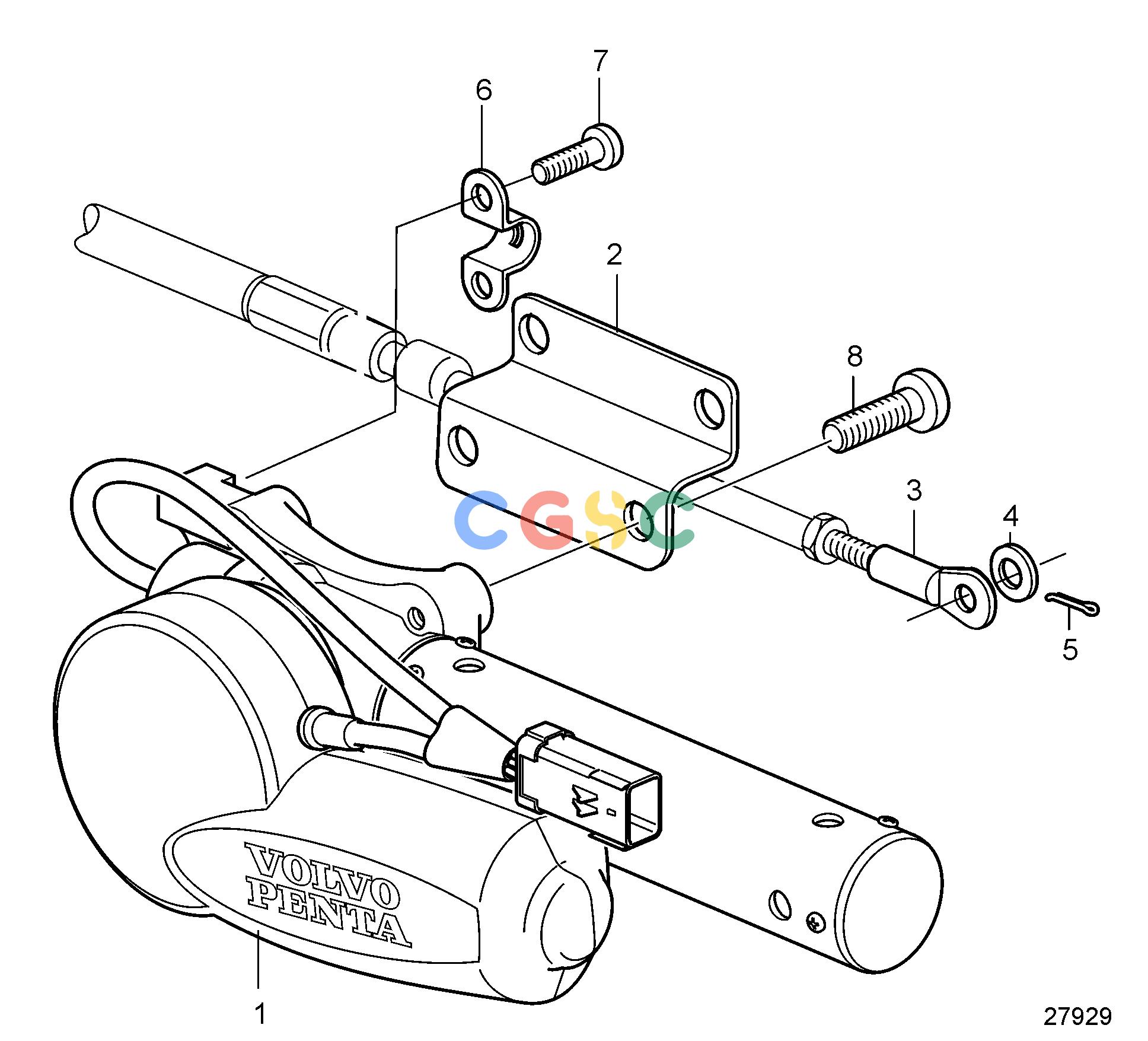

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3848712 | [1] | Shift motor | |
| 2. | 21353263 | [2] | Bracket | |
| 3. | 3850941 | [1] | Adapter | |
| 4. | 940191 | [1] | Washer | |
| 5. | 17253 | [1] | Split pin | |
| 6. | 21471054 | [1] | Bracket | |
| 7. | 973155 | [2] | Six point socket scr | M5x12mm |
| 8. | 944435 | [4] | Flange screw |
广数供应链运营团队, 14 02月, 2025，浏览： 587 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3848712 | [1] | Shift motor | |
| 2. | 21353263 | [2] | Bracket | |
| 3. | 3850941 | [1] | Adapter | |
| 4. | 940191 | [1] | Washer | |
| 5. | 17253 | [1] | Split pin | |
| 6. | 21471054 | [1] | Bracket | |
| 7. | 973155 | [2] | Six point socket scr | M5x12mm |
| 8. | 944435 | [4] | Flange screw |
