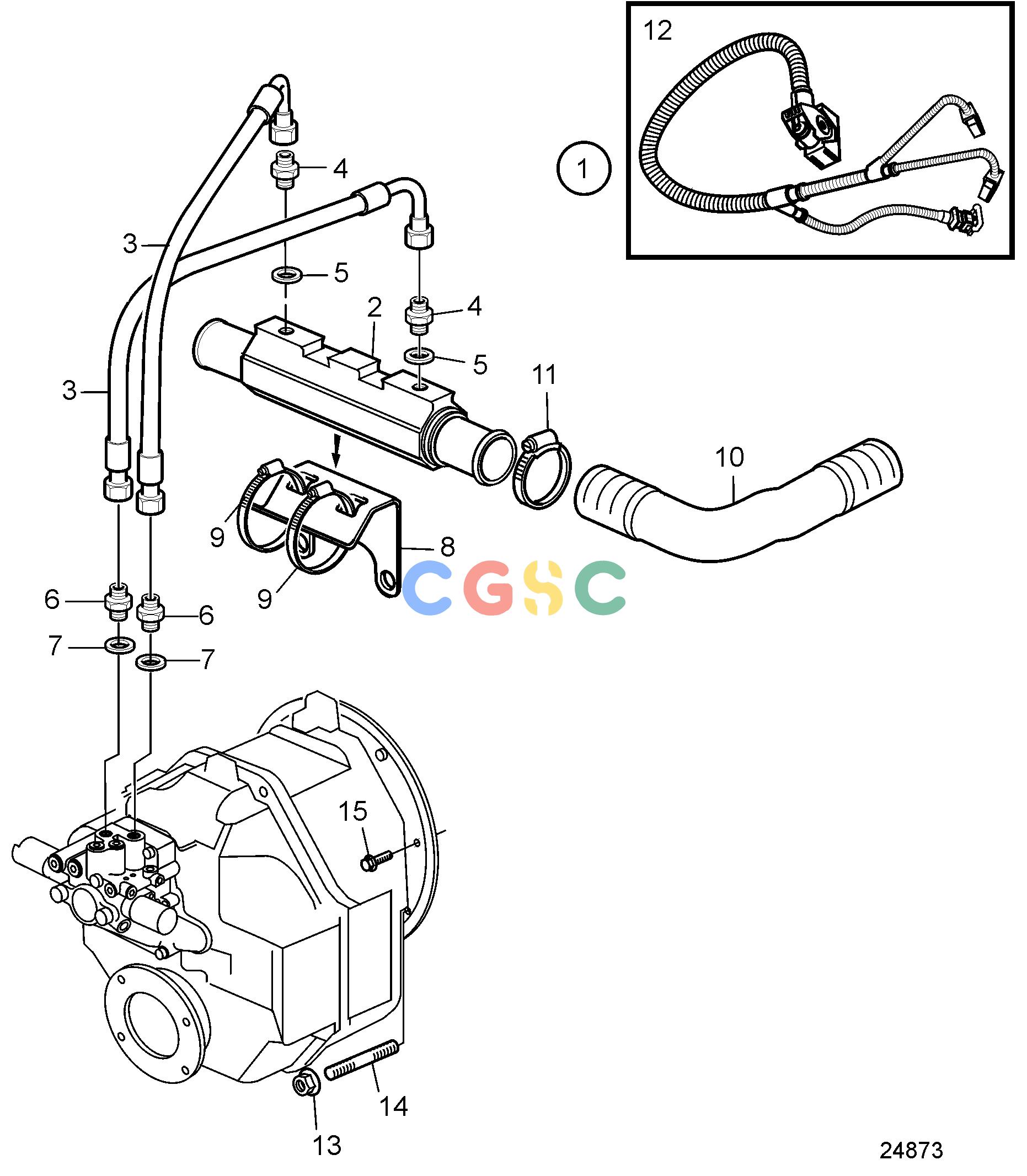

沃尔沃零件查询D3-110I-D; D3-110I-E; D3-110I-F; D3-140I-E; D3-140I-F; D3-140A-D; D3-140A-E; D3-140A-F; D3-150I-D; D3-150I-E; D3-150I-F; D3-170I-D; D3-170I-TransmissionsConnecting Components for HS25 and HS45EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
146 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21149930
|
[1] |
Oil cooler
|
|
| 3. |
3584428
|
[2] |
Hose
|
|
| 4. |
963948
|
[2] |
Nipple
|
|
| 5. |
976930
|
[2] |
Gasket
|
|
| 6. |
941750
|
[2] |
Nipple
|
|
| 7. |
955894
|
[2] |
Washer
|
|
| 8. |
3584438
|
[1] |
Bracket
|
Replaced by 21522941
|
| 8. |
21522941
|
[1] |
Bracket
|
|
| 9. |
961673
|
[2] |
Hose clamp
|
|
| 10. |
22371868
|
[1] |
Hose
|
|
| 11. |
994561
|
[4] |
Hose clamp
|
|
| 12. |
40005753
|
[1] |
Wiring harness
|
|
| 13. |
971095
|
[2] |
Flange nut
|
|
| 14. |
953067
|
[4] |
Stud
|
|
| 15. |
946752
|
[10] |
Flange screw
|
|
