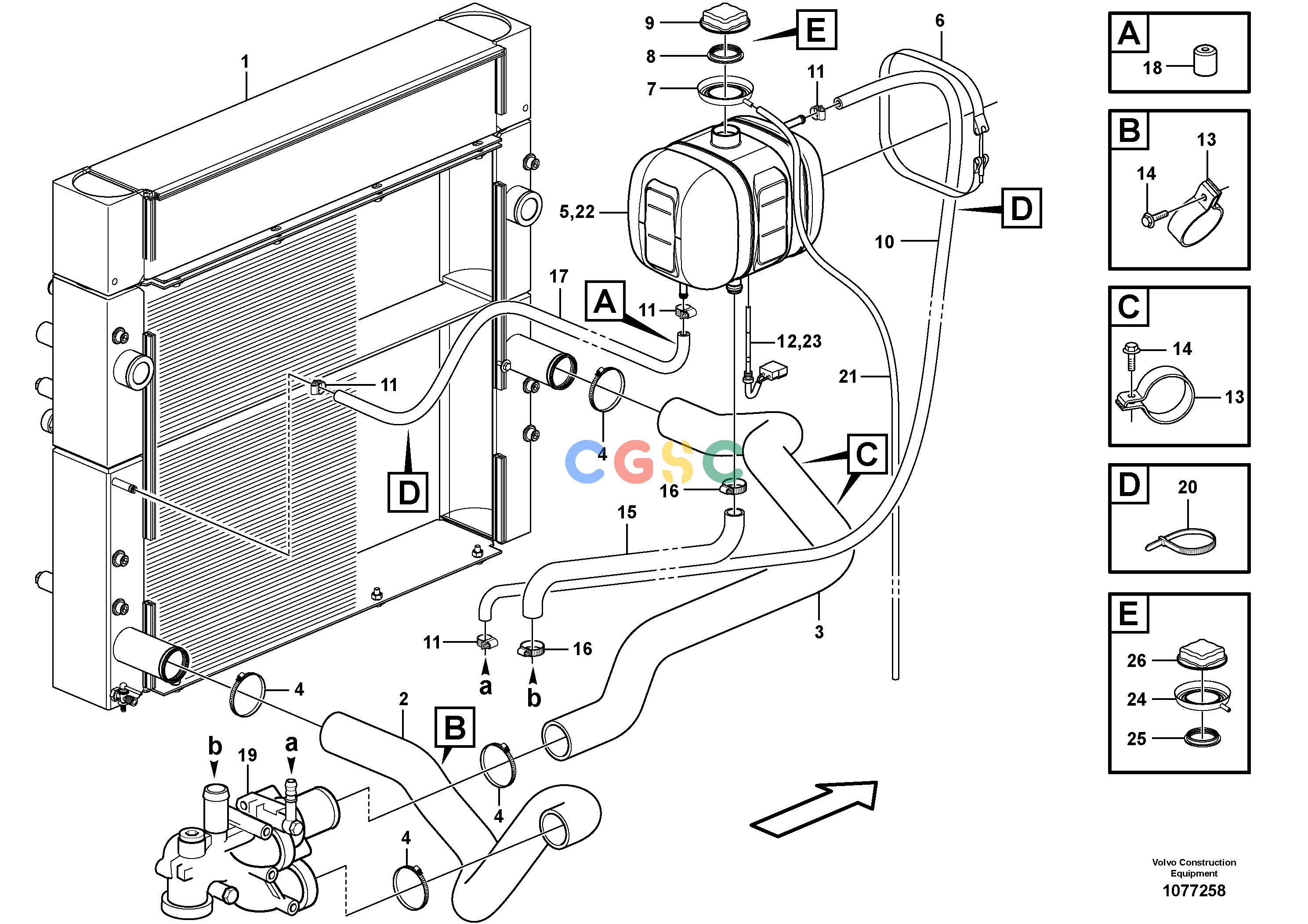

沃尔沃零件查询L45F Cooling systemNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
612 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cooler unit
|
|
| 2. |
VOE11308869
|
[1] |
Radiator hose
|
|
| 3. |
VOE11308878
|
[1] |
Radiator hose
|
|
| 4. |
VOE11109241
|
[4] |
Clamp
|
|
| 5. |
VOE11110410
|
[1] |
Expansion tank
|
11390005 S/N - 1960500
11390006 S/N - 1960499
|
| 6. |
VOE4804563
|
[2] |
Tensioning band
|
|
| 7. |
VOE11431708
|
[1] |
Collar
|
11390005 S/N - 1960500
11390006 S/N - 1960499
|
| 8. |
VOE4804410
|
[1] |
Sealing ring
|
11390005 S/N - 1960500
11390006 S/N - 1960499
|
| 9. |
VOE20879322
|
[1] |
Pressure cap
|
11390005 S/N - 1960500
11390006 S/N - 1960499
|
| 10. |
VOE943367
|
[REQ] |
Hose
|
L = 1350 MM
|
| 11. |
VOE943470
|
[4] |
Hose clamp
|
|
| 12. |
VOE11170064
|
[1] |
Level guard
|
11390005 S/N - 1960500
11390006 S/N - 1960499
|
| 13. |
VOE15201336
|
[3] |
Clamp
|
|
| |
VOE949869
|
[3] |
Spacer washer
|
|
| 14. |
VOE13945444
|
[3] |
Screw
|
|
| 15. |
VOE15203556
|
[1] |
Radiator hose
|
|
| 16. |
VOE943475
|
[2] |
Hose clamp
|
|
| 17. |
VOE943367
|
[REQ] |
Hose
|
L = 1000 MM
|
| 18. |
VOE11033572
|
[1] |
Restrictor
|
|
| 19. |
|
[1] |
Thermostat Housing
|
|
| 20. |
VOE4881440
|
[2] |
Cable tie
|
|
| 21. |
VOE941363
|
[REQ] |
Hose
|
L = 1350 MM
|
| |
VOE17214676
|
[1] |
Expansion tank
|
11390005 S/N 1960501 -
11390006 S/N 1960500 -
|
| 22. |
VOE17214674
|
[1] |
Expansion tank
|
|
| |
VOE11110409
|
[1] |
Anchorage
|
|
| 23. |
VOE11170064
|
[1] |
Level guard
|
SE2603
|
| 24. |
VOE11431708
|
[1] |
Collar
|
|
| 25. |
VOE4804410
|
[1] |
Sealing ring
|
|
| 26. |
VOE1674083
|
[1] |
Cap
|
|
