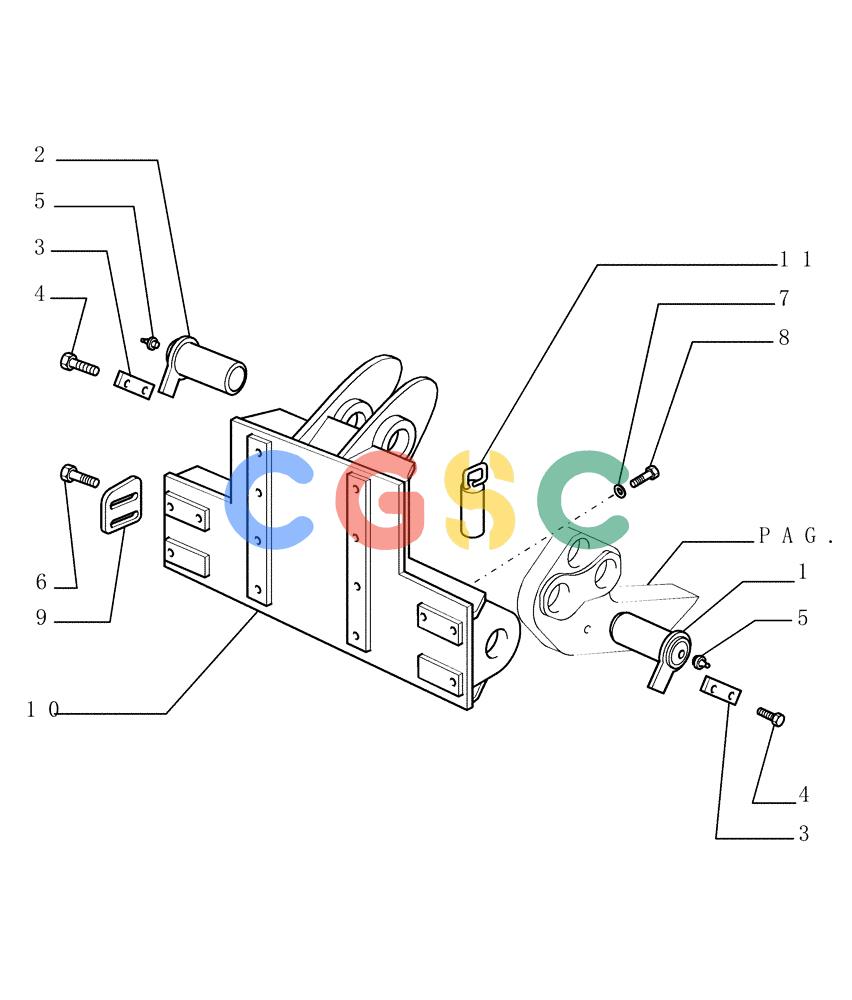

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.522[01]) - RIPPER (PD) - OPTIONAL CODE 784115051- VERSION (01-02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092108 | [2] | PIN | LEC Superseded by part number: 79100270 |
| 2. | 76092111 | [1] | PIN | LEC Superseded by part number: 76027739 |
| 3. | 76092109 | [3] | PLATE | LEC |
| 4. | 11112431 | [6] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 5. | 13407211 | [3] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 6. | 79102887 | [2] | BOLT,Hex Flg, M8 x 1.25 x 27mm, Cl 10.9 | LEC |
| 7. | 14497331 | [14] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24X44 Superseded by part number: 86511328 |
| 8. | 15997331 | [14] | BOLT,Hex, M24 x 2 x 70mm, Cl 10.9, Full Thd | BHB Superseded by part number: 15997337 |
| 9. | 79102888 | [1] | LOCKING PLATE | LEC |
| 10. | 76092107 | [1] | PLATE | LEC |
| 11. | 76092110 | [1] | PIN | LEC Superseded by part number: 79038238 |
