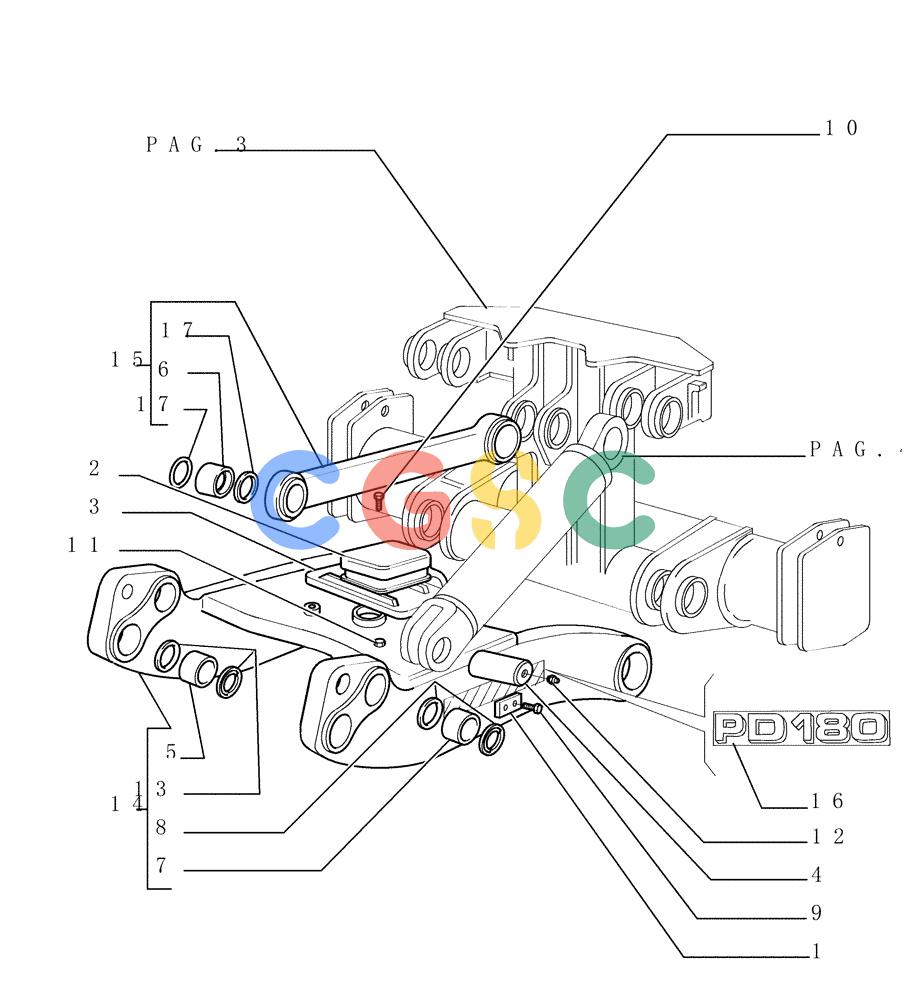

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.522[02]) - RIPPER (PD) - FRAME - OPTIONAL CODE 784115051 - VERSION (01-02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
914 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092114 | [2] | COVER PLATE | LEC |
| 2. | 76092115 | [1] | PAD | LEC |
| 3. | 76092116 | [1] | PLATE | LEC |
| 4. | 76027740 | [2] | PIN | LEC |
| 5. | 8299716 | [4] | BUSHING | LEC |
| 6. | 8299718 | [2] | BUSHING | LEC |
| 7. | 8299739 | [2] | BUSHING | LEC |
| 8. | 79065568 | [4] | SEAL,63mm ID x 78.25mm OD x 7.5mm Thk | LEC |
| 9. | 11115331 | [4] | SCREW,Hex, M14 x 25mm, Cl 10.9, Full Thd | LEC |
| 10. | 11118531 | [4] | BOLT,Hex, M16 x 40, 10.9 | BHB Superseded by part number: 374835 |
| 11. | 12575121 | [1] | NUT,M20 x 1.5, Cl 10 | IMO |
| 12. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 13. | 79023900 | [8] | SEALING RING,80mm ID x 95mm OD x 7.5mm Thk | LEC |
| 14. | 76092112 | [1] | FRAME | LEC- ASSY |
| 15. | 76092113 | [1] | LINK CONROD | LEC- ASSY Superseded by part number: 79099476 |
| 16. | 76046701 | [2] | DECAL | LEC |
