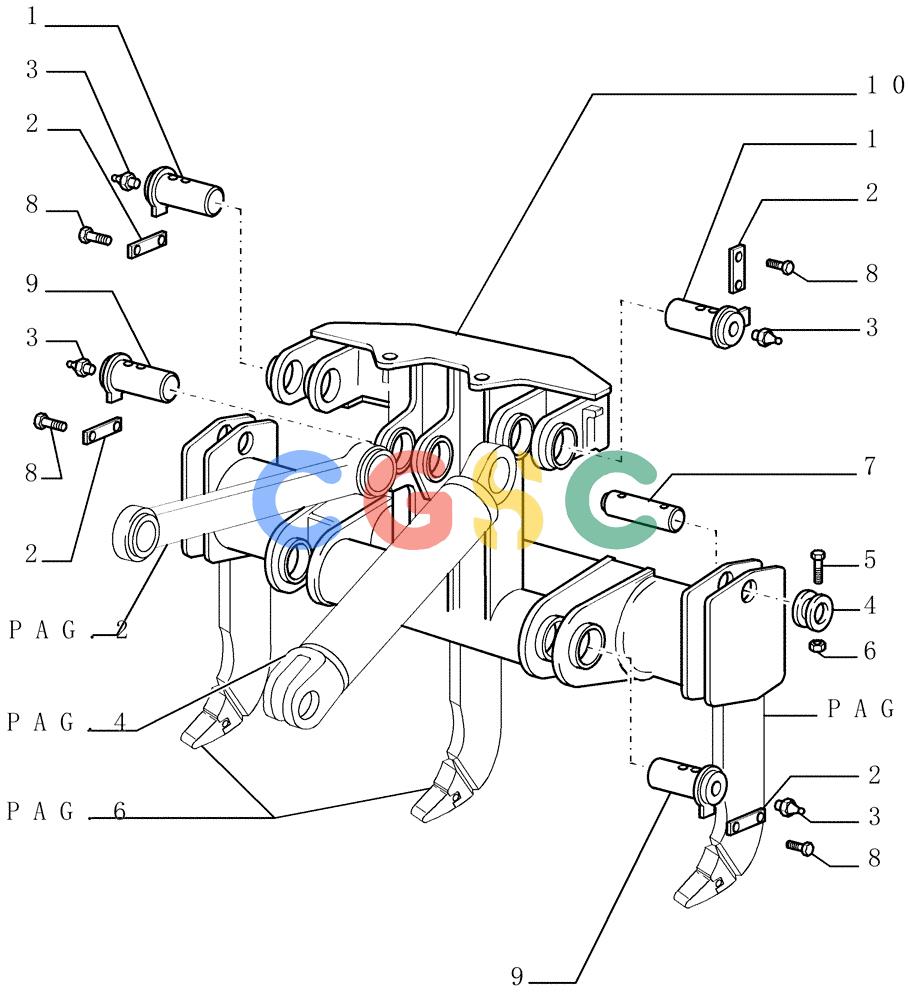

纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.522[03]) - RIPPER (PD) - TOOL BAR - OPTIONAL CODE 784115051 - VERSION (01-02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092118 | [2] | PIN | LEC Superseded by part number: 76027744 |
| 2. | 76092109 | [5] | PLATE | LEC |
| 3. | 13407211 | [5] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 4. | 76092119 | [6] | RING | LEC |
| 5. | 11114031 | [6] | BOLT,Hex, M12 x 90, 10.9 | LEC Superseded by part number: 412605 |
| 6. | 12577521 | [6] | NUT,M12 x 1.75 | LEC |
| 7. | 79038232 | [3] | PIN | LEC |
| 8. | 11112431 | [10] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 9. | 76092111 | [3] | PIN | LEC Superseded by part number: 76027739 |
| 10. | 76092117 | [1] | ARM | LEC |
