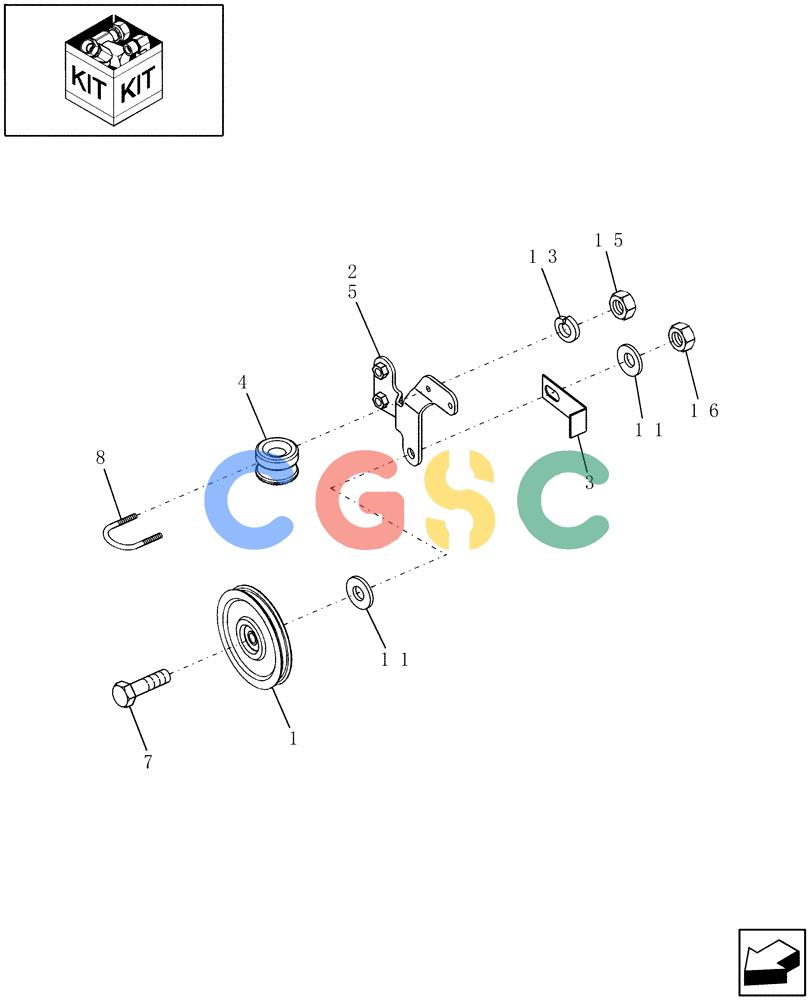

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.13[3]) - TWINE CONVERSION KIT, SPINNER PLATES Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86628978
|
[1] |
PULLEY
|
NH
Superseded by part number: 87038785
|
| 2. |
86630226
|
[1] |
PLATE
|
NH
LH
|
| 3. |
86629062
|
[1] |
GUIDE
|
NH
|
| 4. |
86543545
|
[1] |
GUIDE
|
NH
|
| 5. |
86630225
|
[1] |
PLATE
|
NH
RH
|
| 7. |
814-10040
|
[1] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| 8. |
28114
|
[1] |
U-BOLT
|
NH
#10-24 x 1-15/16"
|
| 11. |
9820489
|
[3] |
WASHER
|
GI
M10 Superseded by part number: 14496621, 89820489
|
| 13. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 15. |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 16. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
