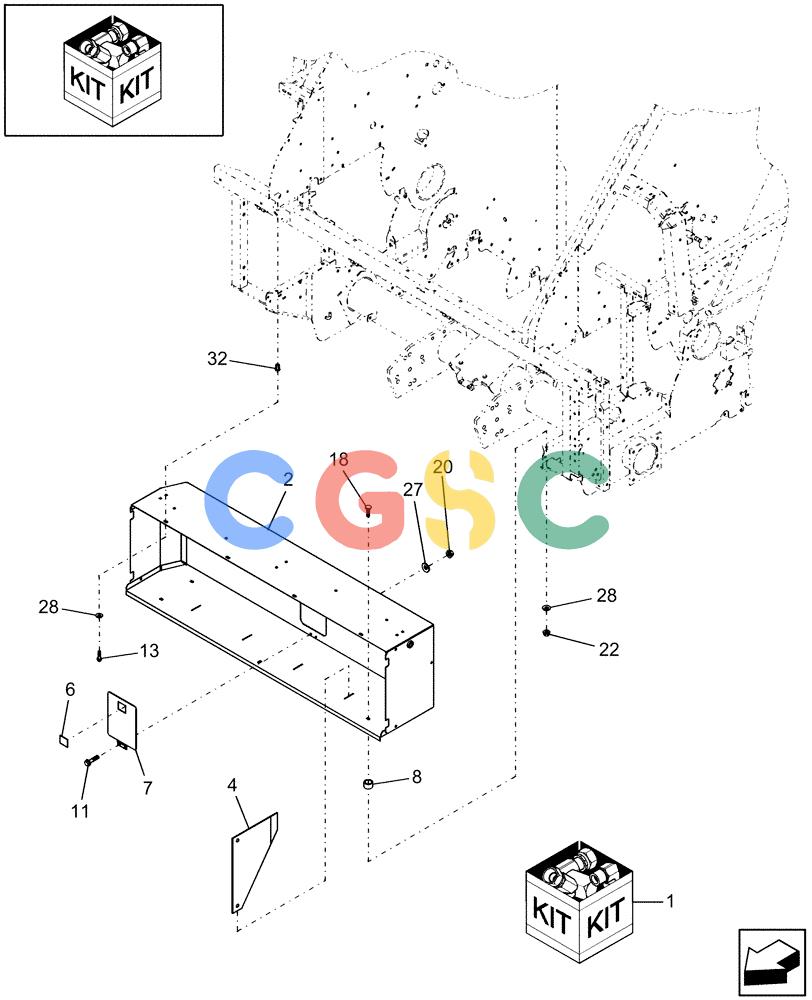

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.16) - FRONT TWINE BOX KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87012396
|
[1] |
DIA KIT, HARVESTER
|
PA
Front Twine Box, Includes: Ref. 2 - 32 & Installation Instructions Superseded by part number: 87045138
|
| 2. |
86979343
|
[1] |
BOX
|
PA
Superseded by part number: 86979342
|
| 4. |
86551339
|
[4] |
DIVIDER
|
NH
|
| 6. |
632732
|
[1] |
LATCH
|
NH
|
| 7. |
86643221
|
[1] |
DOOR ASSY.
|
NH
|
| 8. |
86977986
|
[4] |
WASHER
|
NH
15/32" ID x 1-3/16" OD
|
| 11. |
844-6016
|
[2] |
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 9804255
|
| 13. |
844-8020
|
[4] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 18. |
811-8020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 20. |
825-2406
|
[2] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 22. |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 27. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 28. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 32. |
86610200
|
[4] |
THREADED INSERT,M8 x 1.25
|
NH
M8
|
