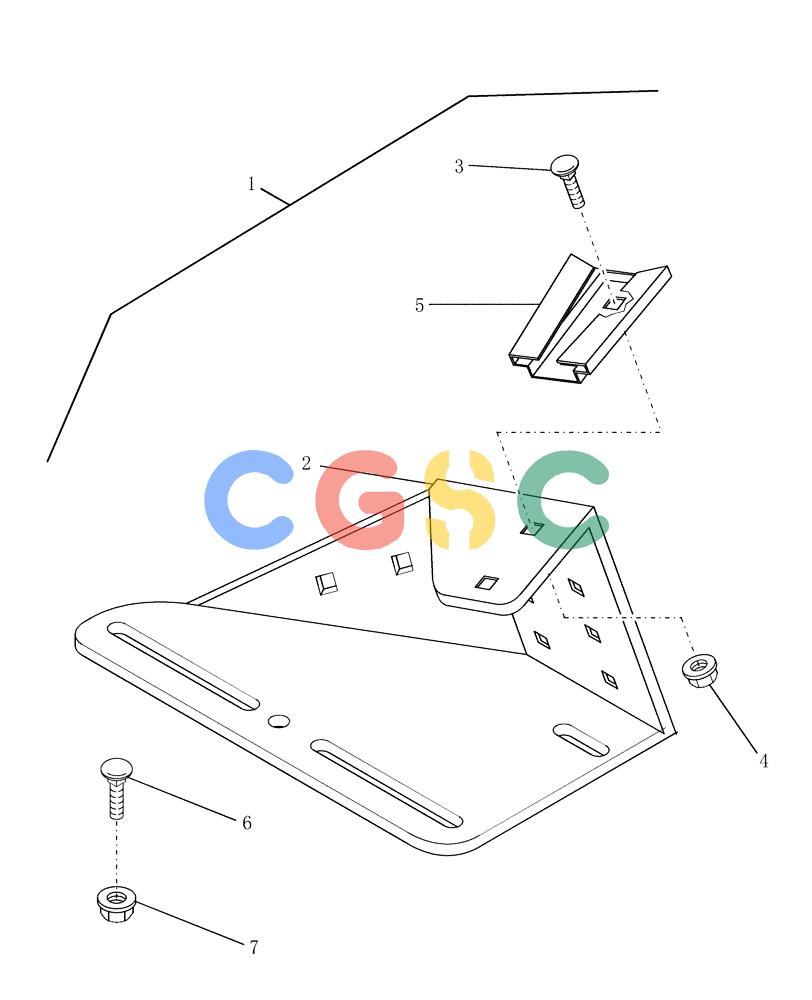

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.24) - CONTROL BOX MOUNT KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86618466
|
[1] |
DIA KIT, HARVESTER
|
NH
Control Box Mount, Includes: Installation Instructions Superseded by part number: 84134365
|
| 2. |
86622259
|
[1] |
BRACKET
|
NH
|
| 3. |
905-8020
|
[6] |
BOLT,Hex Flg, M8 x 20mm
|
CAS
Superseded by part number: 86511479
|
| 4. |
825-5148
|
[6] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 5. |
847590
|
[1] |
BRACKET
|
NH
Socket
|
| 6. |
434-512
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280497, 87779118
|
| 7. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
